HC-233 - Echo Hedge Trimmer (SN: 06001001 - 06999999) Fuel System S/N: 06008501 - 06999999 Parts Diagram

Hedge Trimmer

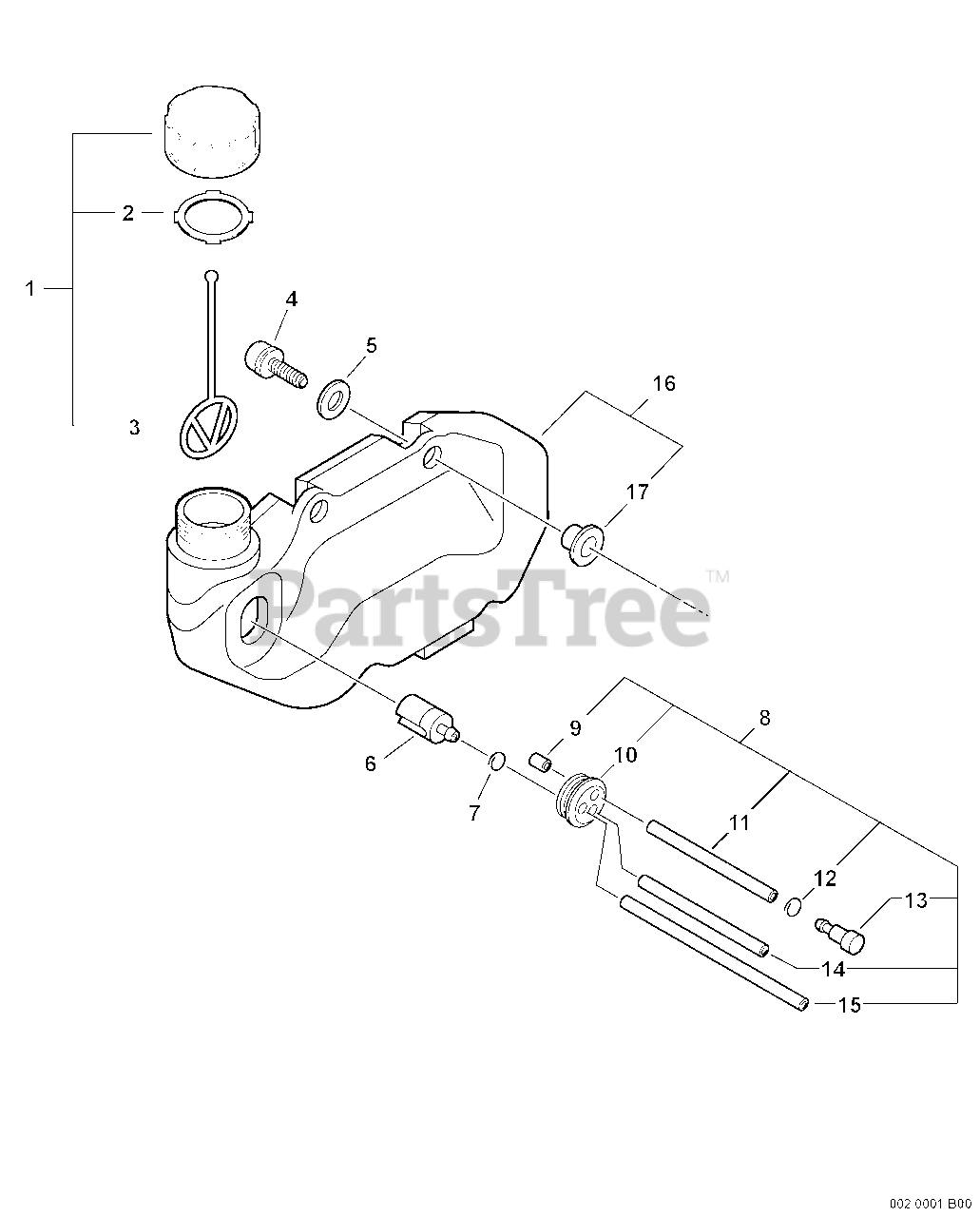

Fuel System S/N: 06008501 - 06999999 Parts Diagram

  • Title

1

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

Note: Includes ITEM 2-3

$6.99

$

In Stock, Qty 20+

0

2

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

3

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

4

Echo 90016205018

SCREW - 5X18

$0.99

$

In Stock, Qty 8

0

5

Echo 61301907350

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

6

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.49

$

In Stock, Qty 20+

0

7

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

8

Echo A034000000

FUEL PIPE KIT
(Superseded to A034000002)

Note: INCLUDES ITEMS 9-15

$24.99

$

Usually ships in 2-4 days

0

9

Echo 13201761830

COLLAR - 3

$3.99

$

Usually ships in 2-4 days

0

10

Echo 13211561830

GROMMET

$4.99

$

Usually ships in 2-4 days

0

11

Echo V471000150

PIPE - 3X5X65 -- BLACK

Note: RePower BULK OPTION: 90014

$2.99

$

In Stock, only 1 left!

0

12

Echo 13011100530

CLIP - 5.5

$0.99

$

In Stock, Qty 20+

0

13

Echo A356000031

VENT, FUEL TANK

$8.99

$

In Stock, Qty 20+

0

14

Echo V471000131

PIPE - 3X5X170 -- CLEAR

Note: RePower BULK OPTION: 90014

$3.99

$

Usually ships in 2-4 days

0

15

Echo V471000140

PIPE - 3X5X275 -- BLACK

Note: RePower BULK OPTION: 90014

$5.49

$

Usually ships in 2-4 days

0

16

Echo A350000017

TANK, FUEL
(Superseded to A350000018)

Note: Includes ITEM 17

$31.99

$

Usually ships in 2-4 days

0

17

Echo V353000230

COLLAR

$

$

Currently unavailable
