HC-2400 - Echo Hedge Trimmer (Type 1) Carburetor Parts Diagram

Hedge Trimmer (Type 1)

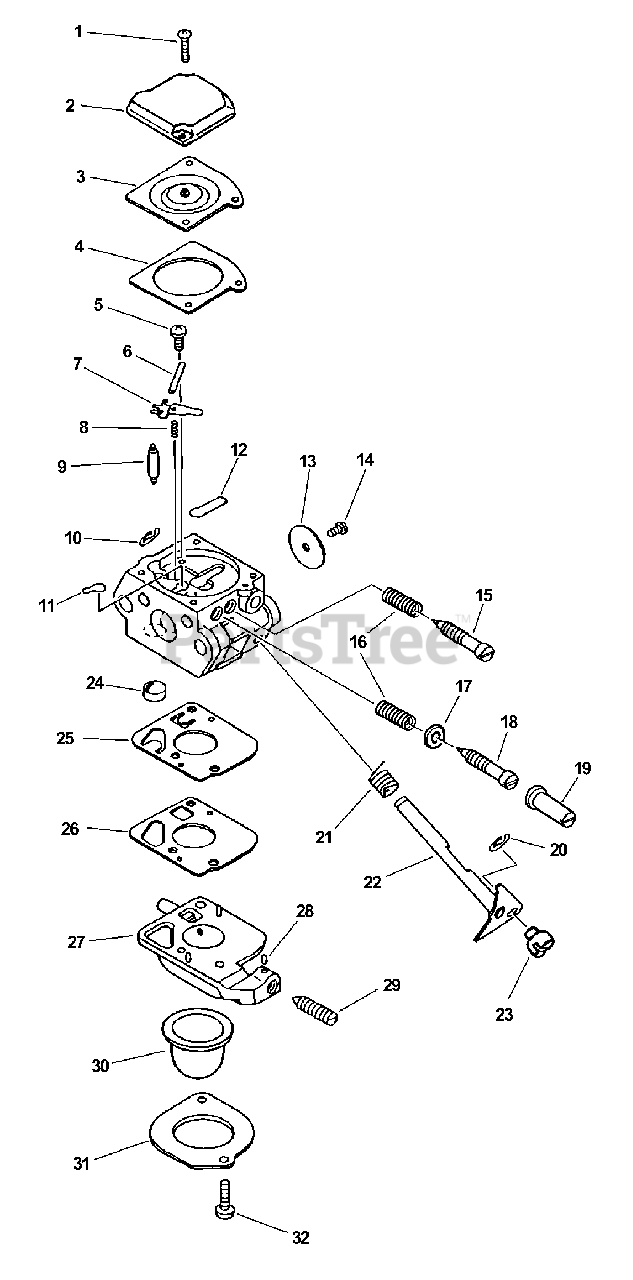

Carburetor Parts Diagram

  • Title

Echo 12520008962

CARBURETOR C1U-K31A
(Superseded to 12520008963)

Note: INCLUDES THE FOLLOWING ITEMS:

$

$

Not available

1

Echo 12534452130

SCREW

$0.99

$

In Stock, Qty 10

0

2

Echo 12534252130

COVER, METERING

$4.99

$

In Stock, only 2 left!

0

3

------------------

DIAPHRAGM

Note: INCLUDED IN REPAIR KIT P/N 12530008960 & GASKET/DIAPHRAGM KIT P/N 12530351030

$

$

Not available

4

------------------

GASKET, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530008960 & GASKET/DIAPHRAGM KIT P/N 12530351030

$

$

Not available

5

Echo 12533942030

SCREW, METERING LEVER PIN

$0.99

$

In Stock, Qty 11

0

6

------------------

PIN, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12530008960

$

$

Not available

7

------------------

LEVER, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530008960

$

$

Not available

8

------------------

SPRING, INLET NEEDLE

Note: INCLUDED IN REPAIR KIT P/N 12530008960

$

$

Not available

9

------------------

VALVE, NEEDLE

Note: INCLUDED IN REPAIR KIT P/N 12530008960

$

$

Not available

10

Echo 12532715130

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

11

------------------

PLUG, WELCH

Note: INCLUDED IN REPAIR KIT P/N 12530008960

$

$

Not available

12

------------------

PLUG, WELCH

Note: INCLUDED IN REPAIR KIT P/N 12530008960

$

$

Not available

13

Echo 12531607260

VALVE, THROTTLE

$2.49

$

In Stock, only 1 left!

0

14

Echo 12531413930

SCREW

$1.49

$

Usually ships in 2-4 days

0

15

Echo 12531808960

NEEDLE - LOW SPEED

$3.99

$

Usually ships in 2-4 days

0

16

Echo 12531942030

SPRING

$1.49

$

Usually ships in 2-4 days

0

17

Echo 12535307760

WASHER

$0.99

$

In Stock, only 1 left!

0

18

Echo 12532007760

NEEDLE - HIGH SPEED

$4.99

$

Usually ships in 2-4 days

0

19

Echo 12532908960

CAP, LIMITER

$1.99

$

Usually ships in 2-4 days

0

20

Echo 12532713930

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

21

Echo 12531342030

SPRING, RETURN

$1.49

$

In Stock, Qty 12

0

22

Echo 12531711820

SHAFT, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

23

Echo 12537242030

SWIVEL

$5.49

$

Usually ships in 2-4 days

0

24

------------------

STRAINER

Note: INCLUDED IN REPAIR KIT P/N 12530008960

$

$

Not available

25

------------------

DIAPHRAGM, PURGE

Note: INCLUDED IN REPAIR KIT P/N 12530008960 & GASKET/DIAPHRAGM KIT P/N 12530351030

$

$

Not available

26

------------------

GASKET, PURGE

Note: INCLUDED IN REPAIR KIT P/N 12530008960 & GASKET/DIAPHRAGM KIT P/N 12530351030

$

$

Not available

27

Echo 12532411610

BASE, PURGE

$25.99

$

In Stock, Qty 5

0

28

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

29

Echo 12533413930

SCREW, IDLE ADJUST

$1.99

$

In Stock, only 2 left!

0

30

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$7.49

$

In Stock, Qty 17

0

31

Echo 12536311610

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 14

0

32

Echo 12531011610

SCREW, RETAINER

$1.99

$

In Stock, Qty 5

0

32

Echo 12530008960

REPAIR KIT
(Superseded to 12530051030)

$34.99

$

In Stock, only 2 left!

0

32

Echo 12530351030

DIAPHRAGM/GASKET KIT

$22.99

$

In Stock, only 4 left!

0
