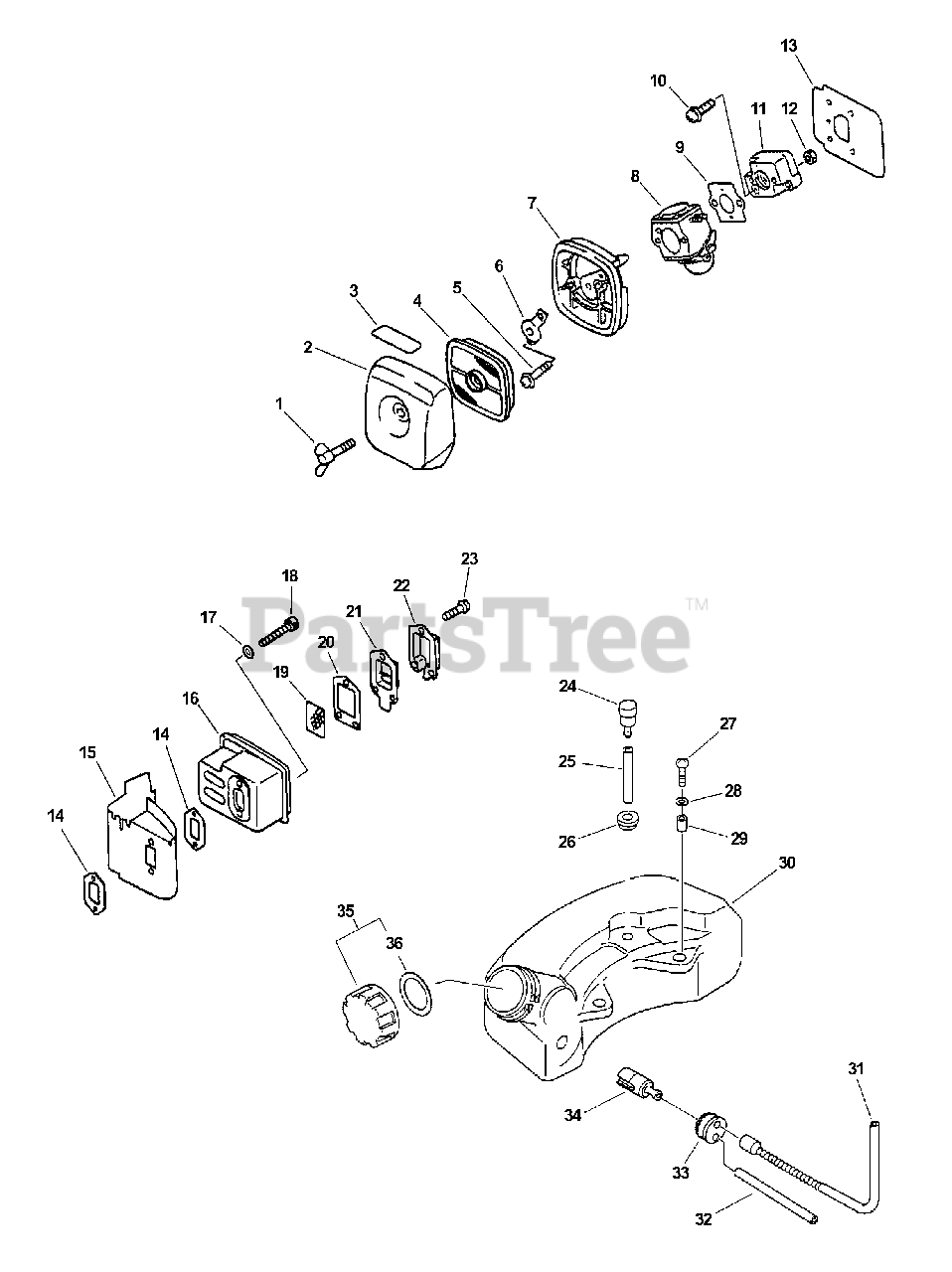

HC-2400 - Echo Hedge Trimmer (Type 1E) Intake, Exhaust, Fuel System Parts Diagram

Hedge Trimmer (Type 1E)

Intake, Exhaust, Fuel System Parts Diagram

  • Title

1

Echo 21041752730

BOLT, WING 5×20

$1.99

$

In Stock, Qty 14

0

2

Echo 13031306563

COVER, AIR FILTER - GRAY

$7.99

$

In Stock, Qty 20+

0

3

Echo 89012106360

LABEL, CHOKE

$1.99

$

In Stock, only 4 left!

0

4

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

Note: USE KIT P/N 90008

$8.99

$

In Stock, Qty 20+

0

5

Echo 90024205065

SCREW 5×65

$0.99

$

In Stock, Qty 20+

0

6

Echo 12901152730

PLATE, PREVENT

$4.49

$

In Stock, Qty 5

0

7

Echo 13030706561

AIR FILTER CASE ASSY
(Superseded to P021002921)

$14.99

$

In Stock, Qty 9

0

8

Echo 12520005962

CARBURETOR - C1U-K51
(Superseded to 12520005963)

$95.99

$

In Stock, only 2 left!

0

9

Echo 130016-42031

GASKET, INTAKE

Note: USE KIT P/N 88900008460

$1.49

$

In Stock, Qty 20+

0

10

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 8

0

11

Echo 130017-42031

INSULATOR, INTAKE

$11.99

$

In Stock, Qty 8

0

12

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

13

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

Note: USE KIT P/N 88900008460

$2.99

$

In Stock, Qty 12

0

14

Echo V104000160

GASKET, EXHAUST

Note: USE KIT P/N 88900008460

$2.49

$

In Stock, Qty 20+

0

15

Echo 14587144331

COVER, EXHAUST
(Superseded to 14587152130)

$5.99

$

In Stock, only 2 left!

0

16

Echo 145806-42030

MUFFLER

$55.99

$

In Stock, only 1 left!

0

17

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

18

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

19

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 20+

0

20

Echo 145866-42031

GASKET, EXHAUST

Note: USE KIT P/N 88900008460

$2.99

$

In Stock, only 2 left!

0

21

Echo 14587642030

GUIDE, EXHAUST

$4.99

$

In Stock, only 3 left!

0

22

Echo 14586308960

GUIDE, EXHAUST - INNER

$5.49

$

Usually ships in 2-4 days

0

23

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

24

Echo A356000031

VENT ASSY

Note: USE KIT P/N 90010

$9.49

$

In Stock, Qty 20+

0

25

Echo 13201021160

PIPE, FUEL
(Superseded to V471001180)

Note: RePower BULK OPTION: 90015

$2.49

$

In Stock, Qty 20+

0

26

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.99

$

In Stock, Qty 20+

0

27

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

28

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

29

Echo 13104528230

SPACER 6.2×7.8×6

$1.99

$

In Stock, Qty 20+

0

30

Echo 13100208960

TANK, FUEL
(Superseded to 13100208961)

Note: Includes ITEM 29

$

$

Not available

31

Echo 13201002160

PIPE, FUEL

$6.99

$

In Stock, only 2 left!

0

32

Echo 13201006460

PIPE, FUEL RETURN 3×6×110

Note: RePower BULK OPTION: 90017

$3.99

$

In Stock, Qty 12

0

33

Echo 132115-44330

GROMMET, FUEL
(Superseded to 13211544331)

$2.49

$

In Stock, Qty 20+

0

34

Echo 131205-07320

FILTER, FUEL

Note: USE KIT P/N 90008

$6.49

$

In Stock, Qty 20+

0

35

Echo 13100455830

CAP ASSY, FUEL
(Superseded to P200000830)

Note: USE KIT P/N 90010 - INCLUDES ITEM 36

$5.49

$

In Stock, only 2 left!

0

36

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

Echo 90008

FILTER KIT - REPOWER
(Superseded to 90152)

$21.99

$

In Stock, Qty 20+

0

Echo 90010

CAP/VENT KIT - REPOWER
(Superseded to 90248)

$

$

Not available
