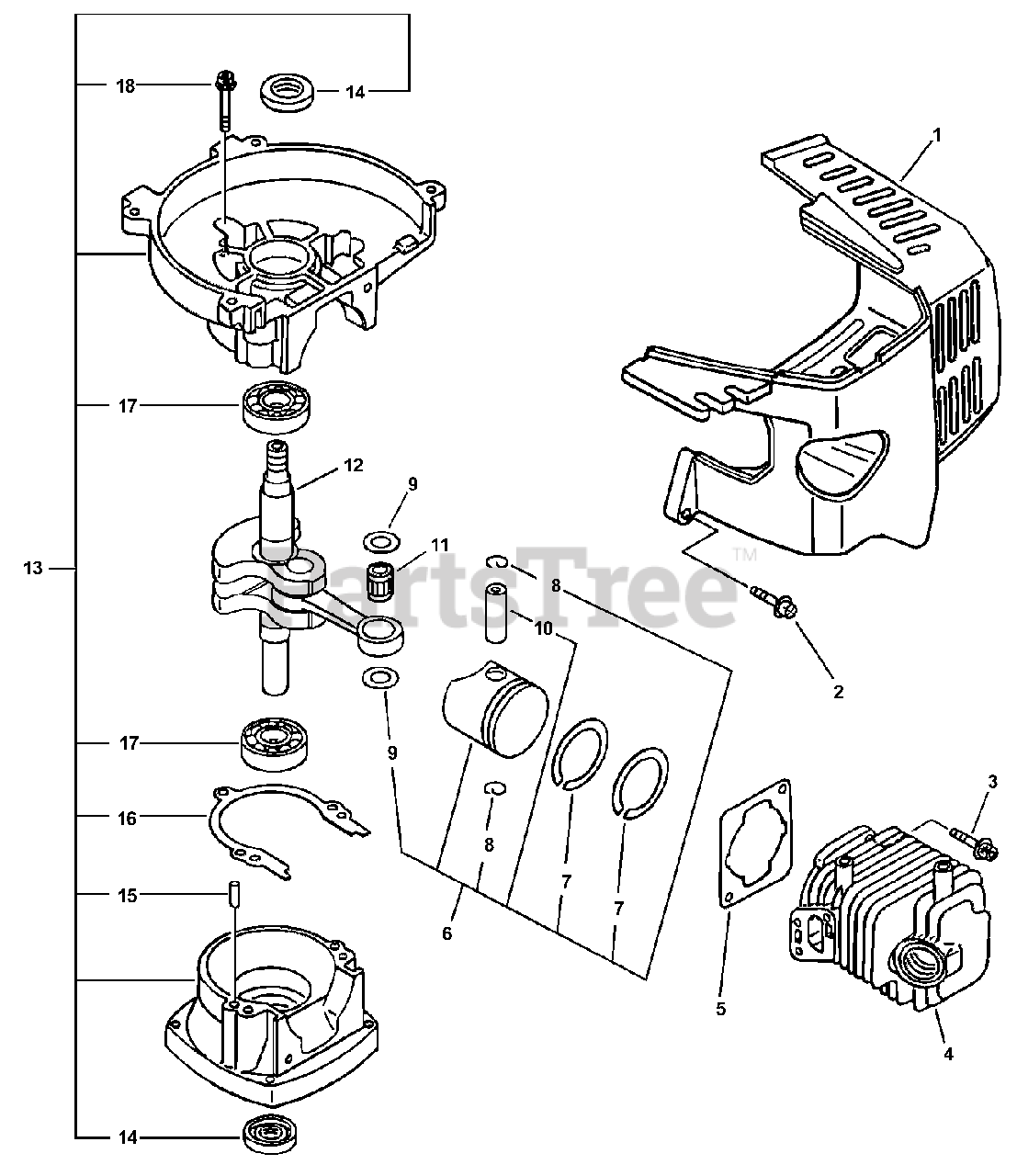

HC-2400 - Echo Hedge Trimmer (Type 2E) Engine, Cylinder Parts Diagram

Hedge Trimmer (Type 2E)

Engine, Cylinder Parts Diagram

  • Title

1

Echo 10151408960

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

2

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

3

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

4

Echo 10101108960

CYLINDER
(Superseded to 10100308960)

$

$

Not available

5

Echo 10101044332

GASKET, CYLINDER

Note: USE KIT P/N 88900008460

$4.49

$

In Stock, Qty 14

0

6

Echo 10000009562

PISTON KIT
(Superseded to 10000009563)

Note: Includes ITEMS 7 - 10

$78.99

$

In Stock, only 1 left!

0

7

Echo 10001109560

RING, PISTON

$8.99

$

In Stock, only 2 left!

0

8

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

9

Echo 10001408960

WASHER

$3.99

$

Usually ships in 2-4 days

0

10

Echo 10001311520

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

11

Echo 10011305930

BEARING, NEEDLE - 8

$12.99

$

Usually ships in 2-4 days

0

12

------------------

CRANKSHAFT ASSY

Note: USE P/N SB1034

$

$

Not available

13

------------------

CRANKCASE KIT

Note: INCLUDES ITEMS 14 - 18 - USE P/N SB1034

$

$

Not available

14

Echo 10021242031

SEAL, OIL

$7.49

$

In Stock, Qty 15

0

15

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

16

------------------

GASKET, CRANKCASE

Note: USE KIT P/N 88900008460

$

$

Not available

17

Echo 9403536201

BEARING, BALL - 6201

$8.99

$

In Stock, Qty 17

0

18

Echo 90016205028

SCREW - 5X28

$2.49

$

In Stock, Qty 11

0

Echo SB1034

SHORT BLOCK -- SB1034
(Superseded to Discontinued)

$

$

Not available

Echo 88900008460

GASKET KIT

Note: OPTIONAL

$20.99

$

Usually ships in 2-4 days

0

Echo 10101044332

GASKET, CYLINDER

Note: OPTIONAL

$4.49

$

In Stock, Qty 14

0

------------------

GASKET, CRANKCASE

Note: OPTIONAL

$

$

Not available

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

Note: OPTIONAL

$2.49

$

In Stock, Qty 20+

0

Echo 13001642031

GASKET, INTAKE

Note: OPTIONAL

$1.49

$

In Stock, Qty 20+

0

Echo V104000160

GASKET, EXHAUST

Note: OPTIONAL

$2.49

$

In Stock, Qty 8

0

Echo 14586642031

GASKET, EXHAUST

Note: OPTIONAL

$2.99

$

In Stock, Qty 12

0

Echo 61041401260

GASKET, GEAR CASE

Note: OPTIONAL

$1.99

$

In Stock, Qty 12

0
