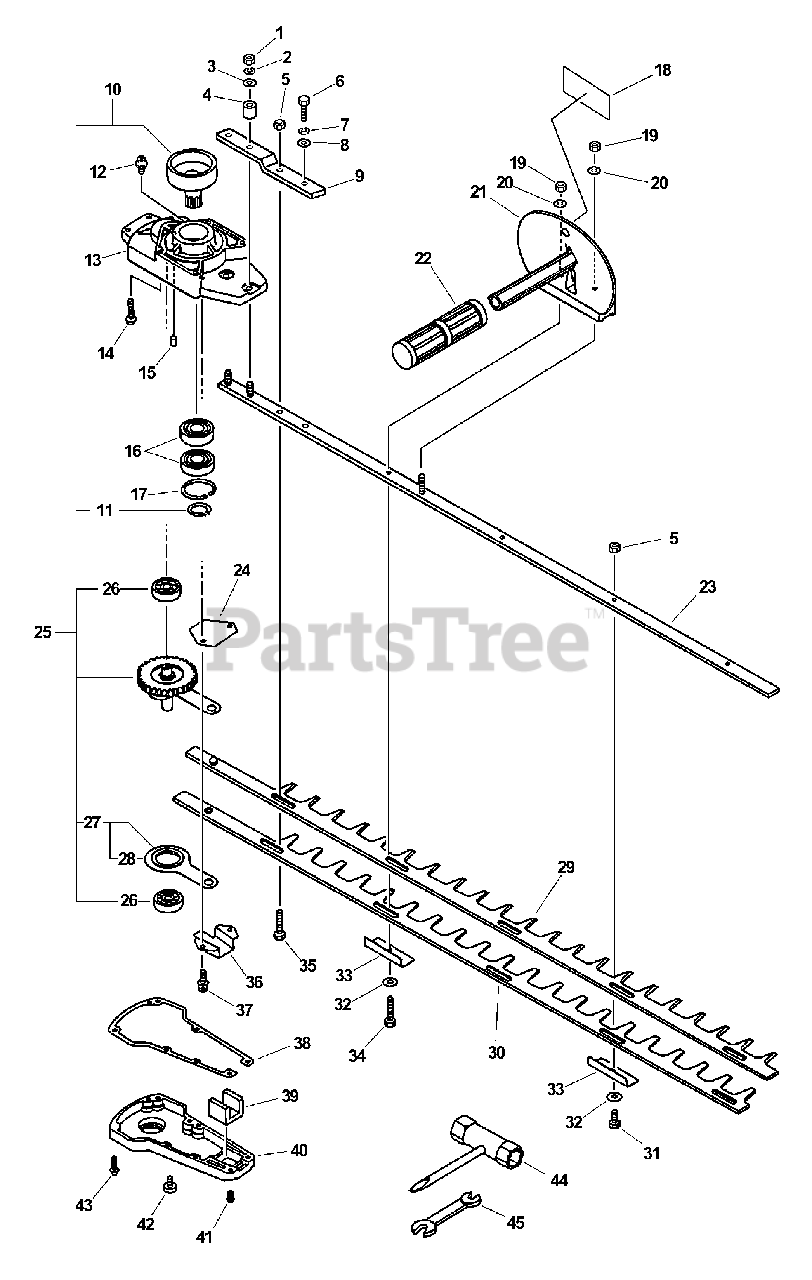

HC-2410 - Echo Hedge Trimmer (Type 1) Gear Case, Blades, Tools Parts Diagram

Hedge Trimmer (Type 1)

Gear Case, Blades, Tools Parts Diagram

  • Title

1

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

2

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 15

0

3

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

4

Echo 69911108960

SPACER

Note: HC-2410 ONLY

$8.49

$

Usually ships in 2-4 days

0

5

Echo 43302206460

NUT M6

Note: HC-2400 (QTY 4)

$1.49

$

In Stock, Qty 20+

0

6

Echo 90010006010

BOLT 6×10

Note: HC-2410 ONLY

$0.99

$

In Stock, only 1 left!

0

7

Echo 90060500006

WASHER, SPRING 6

Note: HC-2410 ONLY

$0.99

$

In Stock, Qty 15

0

8

Echo 90060000006

WASHER 6.5×11.5×0.8

Note: HC-2410 ONLY

$0.99

$

In Stock, Qty 20+

0

9

Echo 69921308960

BRACKET, BLADE

Note: HC-2410 ONLY

$6.99

$

Usually ships in 2-4 days

0

10

Echo 17500301261

DRUM, CLUTCH

Note: Includes ITEM 11

$98.99

$

Usually ships in 2-4 days

0

11

Echo 90070100016

RING, RETAINING - 16

$1.49

$

Usually ships in 2-4 days

0

12

Echo 88011010860

FITTING, GREASE

Note: S/N 001740 & UP

$6.49

$

Usually ships in 2-4 days

0

13

Echo 61041005960

CASE, GEAR

Note: S/N 001001 - 001739

$85.99

$

Usually ships in 2-4 days

0

13

Echo 61040608560

CASE, GEAR

Note: S/N 001740 & UP

$69.99

$

Usually ships in 2-4 days

0

14

Echo 90016205030

BOLT 5×30

$1.49

$

In Stock, only 2 left!

0

15

Echo V622000020

PIN, LOCATING 4

Note: S/N 001001 - 001739

$0.99

$

In Stock, only 4 left!

0

16

Echo 90080206003

BEARING, BALL 6003

$20.99

$

Usually ships in 2-4 days

0

17

Echo 90070200035

RING, SNAP 35

$2.49

$

In Stock, Qty 9

0

18

Echo 89017740630

LABEL, CAUTION
(Superseded to 89022809560)

$0.99

$

In Stock, only 2 left!

0

19

Echo 90056000006

NUT, LOCK 6

$1.49

$

In Stock, Qty 20+

0

20

Echo 90060300006

WASHER 6.5×13×1

$0.99

$

In Stock, Qty 20+

0

21

Echo 35120002060

BRACKET ASSY

Note: Includes ITEM 22

$65.99

$

Usually ships in 2-4 days

0

22

Echo 35101201260

GRIP

$8.99

$

Usually ships in 2-4 days

0

23

Echo 69910502061

BAR, FRAME
(Superseded to X425000100)

Note: HC-2400

$45.99

$

Usually ships in 2-4 days

0

23

Echo 69910508960

BAR, FRAME
(Superseded to X425000050)

Note: HC-2410

$84.99

$

Usually ships in 2-4 days

0

24

Echo 61044001260

GUIDE
(Superseded to Discontinued)

$

$

Not available

25

Echo 61030201260

GEAR ASSY
(Superseded to 61030201261)

Note: INCLUDES ITEMS 26-28

$

$

Not available

26

Echo 90081006200

BEARING, BALL 6200

$12.99

$

In Stock, only 1 left!

0

27

Echo 61030701260

CONNECTING ROD ASSY
(Superseded to 61030701261)

Note: Includes ITEM 28

$

$

Not available

28

Echo 61032701260

BEARING, NEEDLE
(Superseded to 61032701261)

$23.99

$

In Stock, Qty 9

0

29

Echo 69701002960

BLADE - UPPER
(Superseded to X411000180)

Note: HC-2400

$71.99

$

Usually ships in 2-4 days

0

29

Echo 69701008960

BLADE - UPPER

Note: HC-2410

$97.99

$

Usually ships in 2-4 days

0

30

Echo 69701102960

BLADE - LOWER
(Superseded to X411000190)

Note: HC-2400

$74.99

$

Usually ships in 2-4 days

0

30

Echo 69701108960

BLADE - LOWER

Note: HC-2410

$99.99

$

Usually ships in 2-4 days

0

31

Echo 69911502062

BOLT 6×22

Note: HC-2400 (QTY 4)

$5.99

$

Usually ships in 2-4 days

0

32

Echo 69911801261

WASHER

Note: HC-2400 (QTY 5)

$0.99

$

Usually ships in 2-4 days

0

33

Echo 69921302062

INSULATOR
(Superseded to 69921302063)

Note: HC-2400 (QTY 5)

$5.99

$

In Stock, only 2 left!

0

34

Echo 35102702060

BOLT 6×40

$7.99

$

Usually ships in 2-4 days

0

35

Echo 69911508960

BOLT 6×25

Note: HC-2410 ONLY

$1.99

$

Usually ships in 2-4 days

0

36

Echo 61044102060

GUIDE
(Superseded to Discontinued)

$

$

Not available

37

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 7

0

38

Echo 61041401260

GASKET, GEAR CASE

Note: INCLUDED IN KIT 88900008460

$1.99

$

In Stock, Qty 11

0

39

Echo 61042601260

SEAL

$3.49

$

In Stock, only 1 left!

0

40

Echo 61041105960

LID, GEAR CASE
(Superseded to 61041105961)

Note: S/N 001001 - 001739

$52.99

$

Usually ships in 2-4 days

0

40

Echo 61043108960

LID, GEAR CASE
(Superseded to 61043108961)

Note: S/N 001740 & UP

$24.99

$

Usually ships in 2-4 days

0

41

Echo 900242-04014

SCREW 4×14

$0.99

$

In Stock, Qty 5

0

42

Echo 90010008008

BOLT 8×8 SP

Note: S/N 001001 - 001739

$0.99

$

In Stock, Qty 10

0

43

Echo 90024204022

SCREW 4×22

$0.99

$

In Stock, Qty 8

0

44

Echo 89541006960

T-WRENCH 13×19×180
(Superseded to 89541006961)

$4.49

$

In Stock, only 2 left!

0

45

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0

Echo 88900008460

GASKET KIT

$22.99

$

Usually ships in 2-4 days

0
