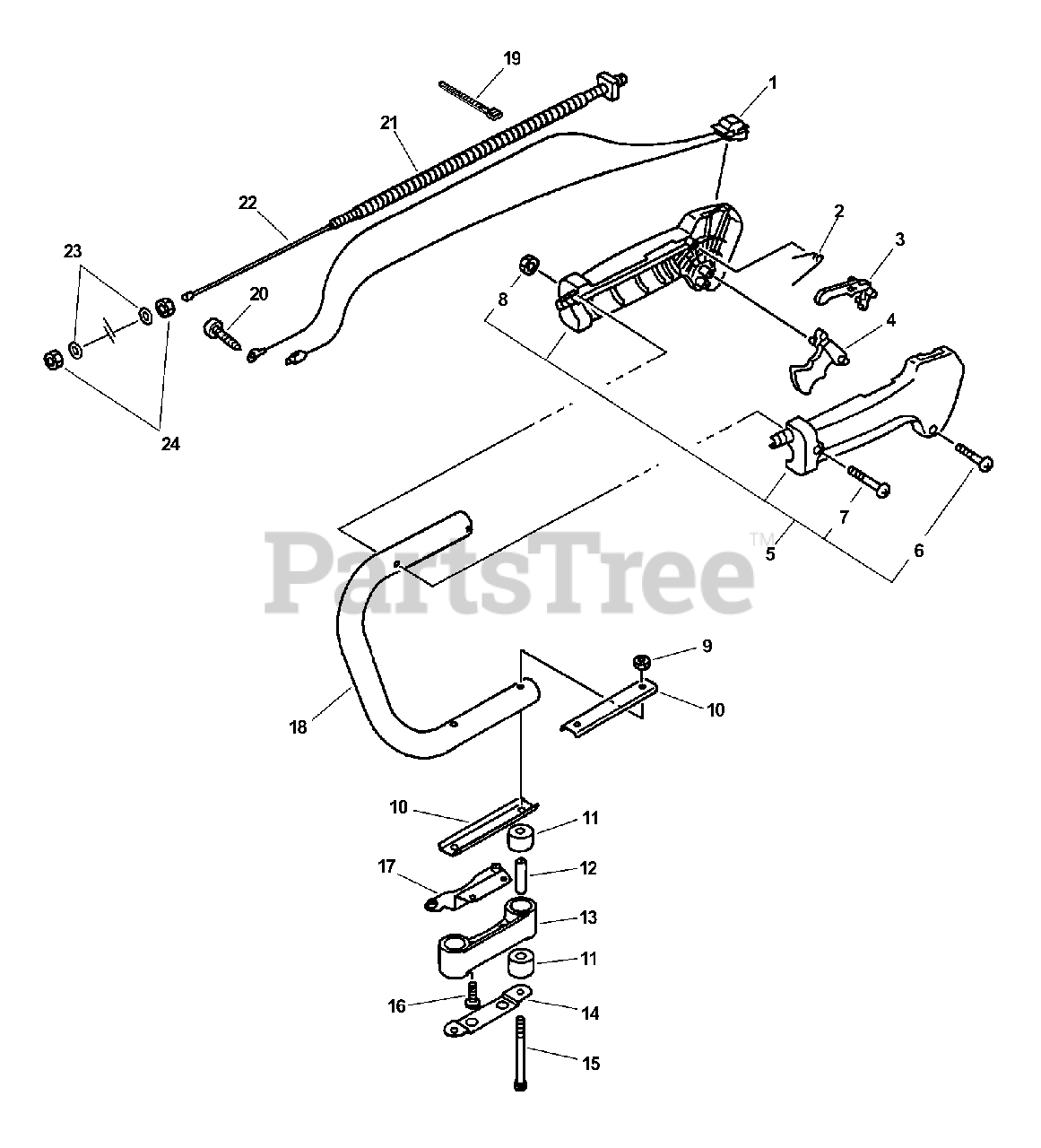

HC-2410 - Echo Hedge Trimmer (Type 1E) Handles, Ignition Switch, Throttle Parts Diagram

Hedge Trimmer (Type 1E)

Handles, Ignition Switch, Throttle Parts Diagram

  • Title

1

Echo 16340005960

IGNITION SWITCH ASSY
(Superseded to A440000320)

$10.99

$

Usually ships in 2-4 days

0

2

Echo 178013-35631

SPRING, TORSION

$2.99

$

In Stock, Qty 5

0

3

Echo 178012-05960

LOCKOUT, THROTTLE

$6.99

$

In Stock, only 2 left!

0

4

Echo 178010-05960

TRIGGER, THROTTLE

$6.49

$

In Stock, only 2 left!

0

5

Echo 351102-47530

CONTROL HANDLE KIT

Note: Includes ITEMS 6-8

$41.99

$

In Stock, only 2 left!

0

6

Echo 900246-03025

SCREW 3×25

$0.99

$

Usually ships in 2-4 days

0

7

Echo 900220-05030

SCREW 5×30

$0.99

$

Usually ships in 2-4 days

0

8

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

9

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 14

0

10

Echo 35124301260

BRACKET

$3.49

$

Usually ships in 2-4 days

0

11

Echo 35122801260

CUSHION

$4.99

$

Usually ships in 2-4 days

0

12

Echo 35124101260

SPACER
(Superseded to 35124101261)

$3.49

$

In Stock, Qty 16

0

13

Echo 35121705960

BRACKET, HANDLE

$10.99

$

Usually ships in 2-4 days

0

14

Echo 35124201261

PLATE

$3.49

$

Usually ships in 2-4 days

0

15

Echo 90010505060

BOLT 5×60

$2.49

$

In Stock, only 3 left!

0

16

Echo 900242-05016

SCREW 5×16

$0.99

$

In Stock, only 4 left!

0

17

Echo 61043801260

PLATE

$5.99

$

Usually ships in 2-4 days

0

18

Echo 35120508961

HANDLE, REAR

$52.99

$

Usually ships in 2-4 days

0

19

Echo 17812110050

TIE, CABLE

$0.99

$

In Stock, Qty 6

0

20

Echo 90023805010

SCREW 5×10

$0.99

$

In Stock, Qty 13

0

21

Echo 17812705960

PIPE

$2.99

$

Usually ships in 2-4 days

0

22

Echo 17800105960

CABLE, THROTTLE

$23.99

$

Usually ships in 2-4 days

0

23

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

24

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0
