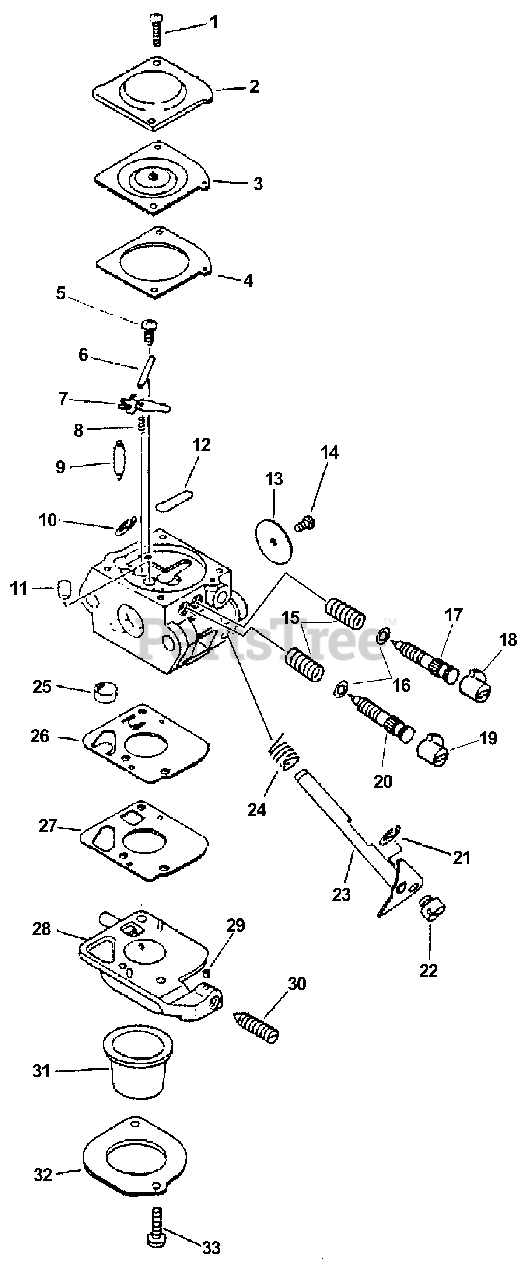

HC-2410 - Echo Hedge Trimmer (Type 2E) Carburetor Parts Diagram

Hedge Trimmer (Type 2E)

Carburetor Parts Diagram

  • Title

Echo 12520005962

CARBURETOR - C1U-K51
(Superseded to 12520005963)

Note: INCLUDES THE FOLLOWING ITEMS:

$95.99

$

In Stock, only 2 left!

0

1

Echo 2534452130

SCREW

$

$

Currently unavailable

2

Echo 125342-13210

COVER, METERING DIAPHRAGM
(Superseded to 12534252130)

$4.99

$

In Stock, only 2 left!

0

3

DIAPHRAGM

Note: USE REPAIR KIT P/N 12530013310 AND USE GASKET/DIAPHRAGM KIT P/N 12530313310

$

$

Not available

4

GASKET, DIAPHRAGM

Note: USE REPAIR KIT P/N 12530013310 AND USE GASKET/DIAPHRAGM KIT P/N 12530313310

$

$

Not available

5

Echo 125339-42030

SCREW

$0.99

$

In Stock, Qty 11

0

6

PIN, METERING LEVER

Note: USE REPAIR KIT P/N 12530013310

$

$

Not available

7

LEVER, METERING

Note: USE REPAIR KIT P/N 12530013310

$

$

Not available

8

SPRING

Note: USE REPAIR KIT P/N 12530013310

$

$

Not available

9

VALVE, INLET NEEDLE

Note: USE REPAIR KIT P/N 12530013310

$

$

Not available

10

Echo 125327-15130

E-RING

$0.99

$

In Stock, Qty 5

0

11

Echo 12537649030

NOZZLE, CHECK VALVE
(Superseded to Discontinued)

$

$

Not available

12

PLUG, WELCH

Note: USE REPAIR KIT P/N 12530013310

$

$

Not available

13

Echo 12531649030

VALVE, THROTTLE

$2.99

$

Usually ships in 2-4 days

0

14

Echo 125314-13930

SCREW

$1.49

$

Usually ships in 2-4 days

0

15

Echo 125319-42030

SPRING, NEEDLE

$1.49

$

In Stock, only 2 left!

0

16

Echo 12535307760

WASHER

$0.99

$

In Stock, only 1 left!

0

17

Echo 12531807360

NEEDLE, IDLE

$6.99

$

Usually ships in 2-4 days

0

18

Echo 12532909860

CAP, LIMITER - WHITE

Note: MIXTURE

$2.49

$

In Stock, Qty 12

0

19

Echo 12532939030

CAP, LIMITER - RED

Note: MIXTURE

$1.99

$

In Stock, Qty 11

0

20

Echo 12532007360

NEEDLE, HIGH SPEED
(Superseded to Discontinued)

$

$

Not available

21

Echo 125327-13930

CLIP

$0.99

$

In Stock, Qty 5

0

22

Echo 125372-42030

SWIVEL

$5.49

$

Usually ships in 2-4 days

0

23

Echo 12531749030

SHAFT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

24

Echo 125313-42030

SPRING, THROTTLE RETURN

$1.49

$

In Stock, Qty 12

0

25

STRAINER

Note: USE REPAIR KIT P/N 12530013310

$

$

Not available

26

DIAPHRAGM, PUMP

Note: USE REPAIR KIT P/N 12530013310 AND USE GASKET/DIAPHRAGM KIT P/N 12530313310

$

$

Not available

27

GASKET, PUMP

Note: USE REPAIR KIT P/N 12530013310 AND USE GASKET/DIAPHRAGM KIT P/N 12530313310

$

$

Not available

28

Echo 12532411610

BODY ASSY, PURGE

$25.99

$

In Stock, only 3 left!

0

29

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

30

Echo 12533413930

SCREW, IDLE ADJUST

$1.99

$

In Stock, only 2 left!

0

31

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$7.49

$

In Stock, Qty 20+

0

32

Echo 12536311610

RETAINER

$2.49

$

In Stock, Qty 14

0

33

Echo 12531011610

SCREW

$1.99

$

In Stock, Qty 5

0

Echo 12530013310

REPAIR KIT, CARBURETOR
(Superseded to P005002840)

$21.99

$

In Stock, only 2 left!

0

Echo 12530313310

GASKET / DIAPHRAGM KIT

$10.99

$

In Stock, Qty 5

0
