HC-2410 - Echo Hedge Trimmer (Type 2E) Engine, Cylinder Parts Diagram

Hedge Trimmer (Type 2E)

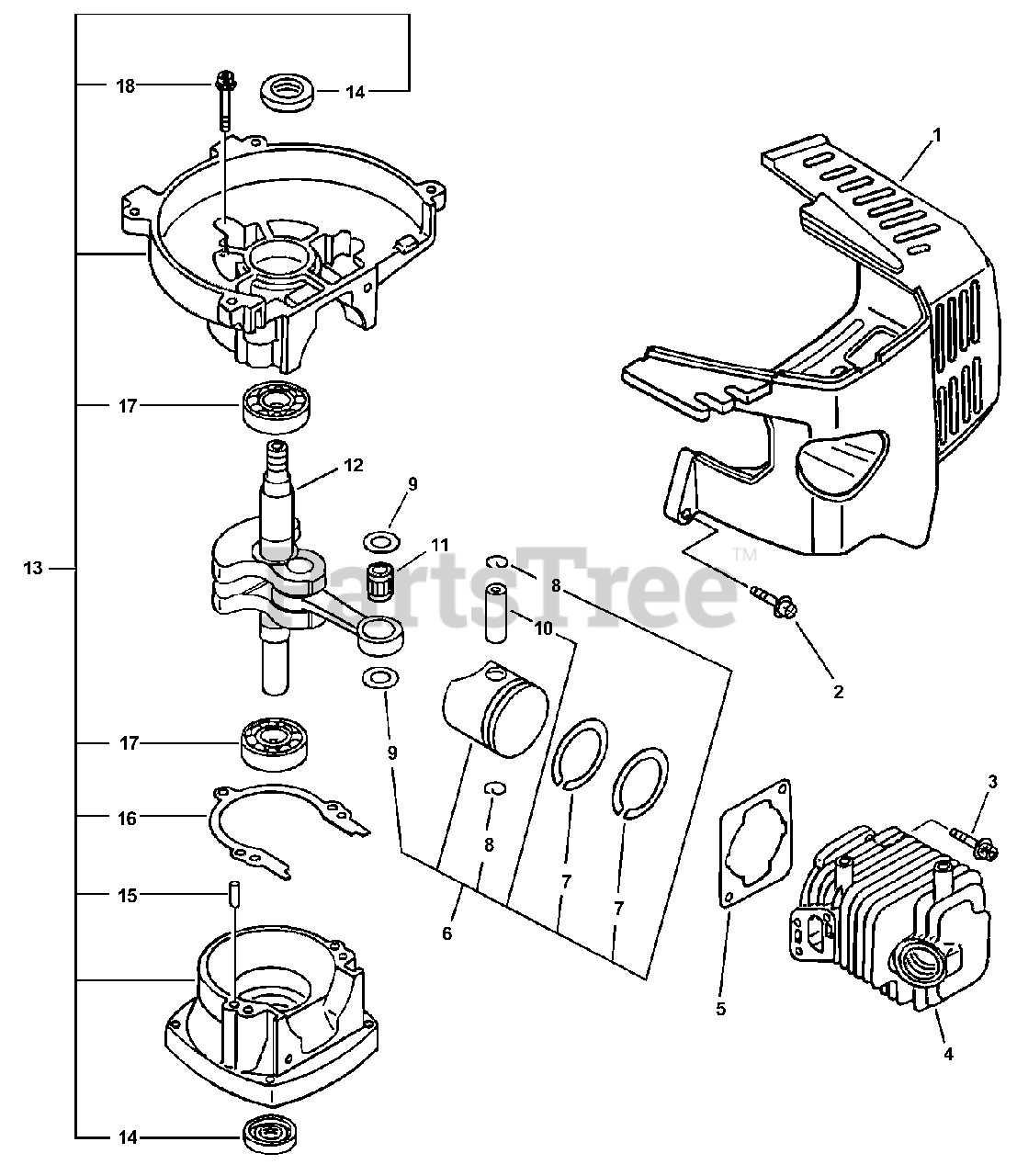

Engine, Cylinder Parts Diagram

  • Title

1

Echo 10151408960

COVER, CYLINDER
(Superseded to Discontinued)

$

$

Not available

2

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

3

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

4

Echo 10101108960

CYLINDER
(Superseded to 10100308960)

$

$

Not available

5

Echo 101010-44332

GASKET, CYLINDER

Note: USE KIT P/N 88900008460

$4.99

$

In Stock, Qty 7

0

6

Echo 10000009562

PISTON KIT
(Superseded to 10000009563)

Note: Includes ITEMS 7 - 10

$84.99

$

In Stock, only 1 left!

0

7

Echo 10001109560

RING, PISTON

$9.99

$

In Stock, only 2 left!

0

8

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

9

Echo 10001408960

WASHER, THRUST

$3.99

$

Usually ships in 2-4 days

0

10

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

11

Echo 10011305930

BEARING, NEEDLE

$13.99

$

Usually ships in 2-4 days

0

12

CRANKSHAFT ASSY

Note: USE P/N SB1034

$

$

Not available

13

CRANKCASE KIT

Note: INCLUDES ITEMS 14 - 18 - USE P/N SB1034

$

$

Not available

14

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

15

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

16

GASKET, CRANKCASE

Note: USE KIT P/N 88900008460

$

$

Not available

17

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

18

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 10

0

Echo SB1034

SHORT BLOCK HC-2400/2410 1E
(Superseded to Discontinued)

$

$

Not available

Echo 88900008460

GASKET KIT

Note: OPTIONAL

$22.99

$

Usually ships in 2-4 days

0

Echo 101010-44332

GASKET, CYLINDER

Note: OPTIONAL

$4.99

$

In Stock, Qty 7

0

GASKET, CRANKCASE

Note: OPTIONAL

$

$

Not available

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

Note: OPTIONAL

$2.99

$

In Stock, Qty 12

0

Echo 130016-42031

GASKET, INTAKE

Note: OPTIONAL

$1.49

$

In Stock, Qty 20+

0

Echo V104000160

GASKET, EXHAUST

Note: OPTIONAL

$2.49

$

In Stock, Qty 20+

0

Echo 145866-42031

GASKET, EXHAUST

Note: OPTIONAL

$2.99

$

In Stock, only 2 left!

0

Echo 61041401260

GASKET, GEAR CASE

Note: OPTIONAL

$1.99

$

In Stock, Qty 11

0
