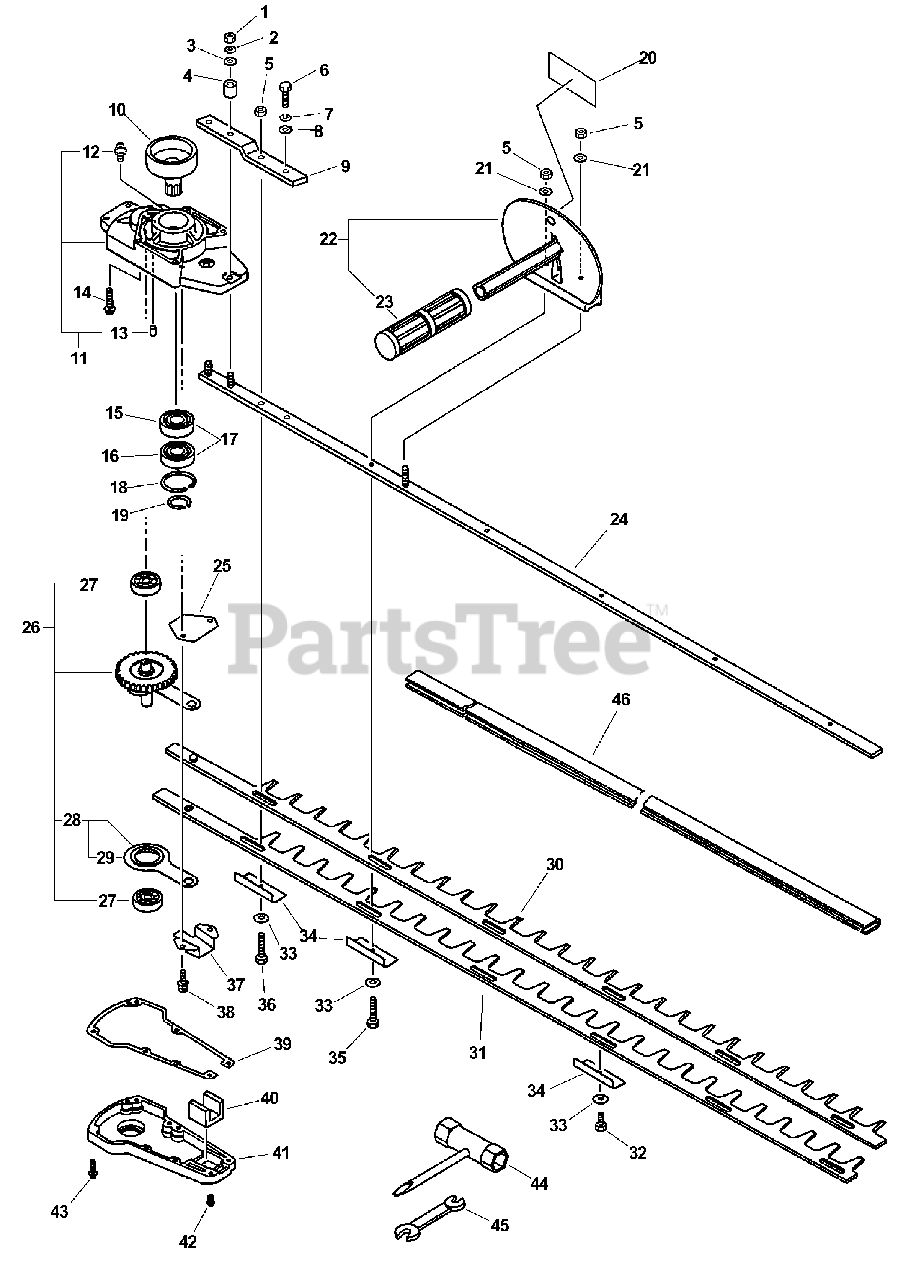

HC-2410 - Echo Hedge Trimmer (Type 2E) Gear Case, Blades, Tools Parts Diagram

Hedge Trimmer (Type 2E)

Gear Case, Blades, Tools Parts Diagram

  • Title

1

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

2

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, Qty 16

0

3

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

4

Echo 69911108960

SPACER

$8.49

$

Usually ships in 2-4 days

0

5

Echo 43302206460

LOCKNUT - 6

$1.49

$

In Stock, Qty 20+

0

6

Echo 90010006010

BOLT - 6X10

$0.99

$

In Stock, only 1 left!

0

7

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, Qty 16

0

8

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

9

Echo 69921308960

BRACKET, ANGLE

$6.99

$

Usually ships in 2-4 days

0

10

Echo 17500508960

DRUM, CLUTCH

Note: S/N 001001 - 506764

$98.99

$

Usually ships in 2-4 days

0

10

Echo 17500301261

DRUM, CLUTCH

Note: S/N 506765 & UP

$98.99

$

Usually ships in 2-4 days

0

11

Echo 61041008960

CASE, GEAR
(Superseded to 61040608960)

Note: S/N 001001 - 505000; INCLUDES 12 & 13

$87.99

$

Usually ships in 2-4 days

0

11

Echo 61040708961

CASE, GEAR
(Superseded to 61040708962)

Note: S/N 505001 & UP; INCLUDES 12 & 13

$81.99

$

Usually ships in 2-4 days

0

12

Echo 88011010860

FITTING, GREASE

$6.49

$

Usually ships in 2-4 days

0

13

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 5

0

14

Echo 90016205030

SCREW - 5X30

$1.49

$

In Stock, Qty 6

0

15

Echo 90085606904

BEARING, BALL - 6904

Note: S/N 001001 - 505000

$21.99

$

Usually ships in 2-4 days

0

15

Echo 90085706904

BEARING, BALL - 6904

Note: S/N 505001 - 506764

$59.99

$

Usually ships in 2-4 days

0

16

Echo 90085506904

BEARING, BALL - 6904

Note: S/N 001001 - 506764

$44.99

$

Usually ships in 2-4 days

0

17

Echo 90080206003

BEARING, BALL - 6003

Note: S/N 506765 & UP

$20.99

$

Usually ships in 2-4 days

0

18

Echo 90070200037

RING, RETAINING - 37

Note: S/N 505001 - 506764

$1.99

$

Usually ships in 2-4 days

0

18

Echo 90070200035

RING, RETAINING - 35

Note: S/N 506765 & UP

$2.49

$

In Stock, Qty 10

0

19

Echo 90070100019

RING, RETAINING - 19

Note: S/N 505001 - 506764

$

$

Not available

19

Echo 90070100016

RING, RETAINING - 16

Note: S/N 506765 & UP

$1.49

$

Usually ships in 2-4 days

0

20

Echo 89017740630

LABEL - CAUTION
(Superseded to 89022809560)

$0.99

$

In Stock, only 2 left!

0

20

Echo 89031705160

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

21

Echo 90060300006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

22

Echo 35120002060

HANDLE ASSY - FRONT

Note: Includes ITEM 23

$65.99

$

Usually ships in 2-4 days

0

23

Echo 35101201260

GRIP, HANDLE

$8.99

$

Usually ships in 2-4 days

0

24

Echo 69910508960

SUPPORT, BLADE
(Superseded to X425000050)

$84.99

$

Usually ships in 2-4 days

0

25

Echo 61044001260

PLATE, GUIDE
(Superseded to Discontinued)

Note: S/N 001001 - 505000

$

$

Not available

25

Echo 61044008960

PLATE, GUIDE

Note: S/N 505001 & UP

$4.99

$

Usually ships in 2-4 days

0

26

Echo 61030208960

GEAR ASSY
(Superseded to 61030208961)

Note: S/N 001001 - 505000; INCLUDES ITEMS 27 - 29

$335.99

$

Usually ships in 2-4 days

0

26

Echo 61030208961

GEAR ASSY

Note: S/N 505001 - 506764; INCLUDES ITEMS 27 - 29

$335.99

$

Usually ships in 2-4 days

0

26

Echo 61030209661

GEAR ASSY

Note: S/N 506765 & UP; INCLUDES ITEMS 27 - 29

$213.99

$

Usually ships in 2-4 days

0

27

Echo 90081006200

BEARING, BALL - 6200

$12.99

$

In Stock, only 1 left!

0

28

Echo 61030701260

CONNECTING ROD ASSY
(Superseded to 61030701261)

Note: Includes ITEM 29

$

$

Not available

29

Echo 61032701260

BEARING, NEEDLE
(Superseded to 61032701261)

$23.99

$

In Stock, Qty 9

0

30

Echo 69701008960

BLADE - UPPER

Note: S/N 001001 - 505000

$97.99

$

Usually ships in 2-4 days

0

30

Echo 69701009760

BLADE - UPPER
(Superseded to X411000150)

Note: S/N 505001 & UP

$82.99

$

Usually ships in 2-4 days

0

31

Echo 69701108960

BLADE - LOWER

Note: S/N 001001 - 505000

$99.99

$

Usually ships in 2-4 days

0

31

Echo 69701109760

BLADE - LOWER
(Superseded to X411000100)

Note: S/N 505001 & UP

$83.99

$

Usually ships in 2-4 days

0

32

Echo 69911502062

BOLT

$5.99

$

Usually ships in 2-4 days

0

33

Echo 69911801261

WASHER

$0.99

$

Usually ships in 2-4 days

0

34

Echo 69921302062

INSULATOR
(Superseded to 69921302063)

$5.99

$

In Stock, only 2 left!

0

35

Echo 35102702060

BOLT

$7.99

$

Usually ships in 2-4 days

0

36

Echo 69911508960

BOLT - 6

$1.99

$

Usually ships in 2-4 days

0

37

Echo 61044102060

GUIDE
(Superseded to Discontinued)

Note: S/N 001001 - 505000

$

$

Not available

37

Echo 61044108960

GUIDE, BLADE

Note: S/N 505001 & UP

$6.99

$

Usually ships in 2-4 days

0

38

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 15

0

39

Echo 61041401260

GASKET, GEAR CASE

Note: USE KIT P/N 8890008560

$1.99

$

In Stock, Qty 11

0

40

Echo 61042601260

SEAL, FELT

$3.49

$

In Stock, only 1 left!

0

41

Echo 61043108960

LID, GEAR CASE
(Superseded to 61043108961)

$24.99

$

Usually ships in 2-4 days

0

42

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 5

0

43

Echo 90024204022

SCREW - 4X22

$0.99

$

In Stock, Qty 8

0

44

Echo 89541006960

T-WRENCH - 13X19mm
(Superseded to 89541006961)

$4.49

$

In Stock, only 2 left!

0

45

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, Qty 6

0

46

Echo 89852308960

COVER, BLADE

$29.99

$

Usually ships in 2-4 days

0

Echo 8890008560

GASKET KIT

$

$

Currently unavailable
