HC-2420 - Echo Hedge Trimmer (SN: T77714001001 - T77714999999) Intake Parts Diagram

Hedge Trimmer

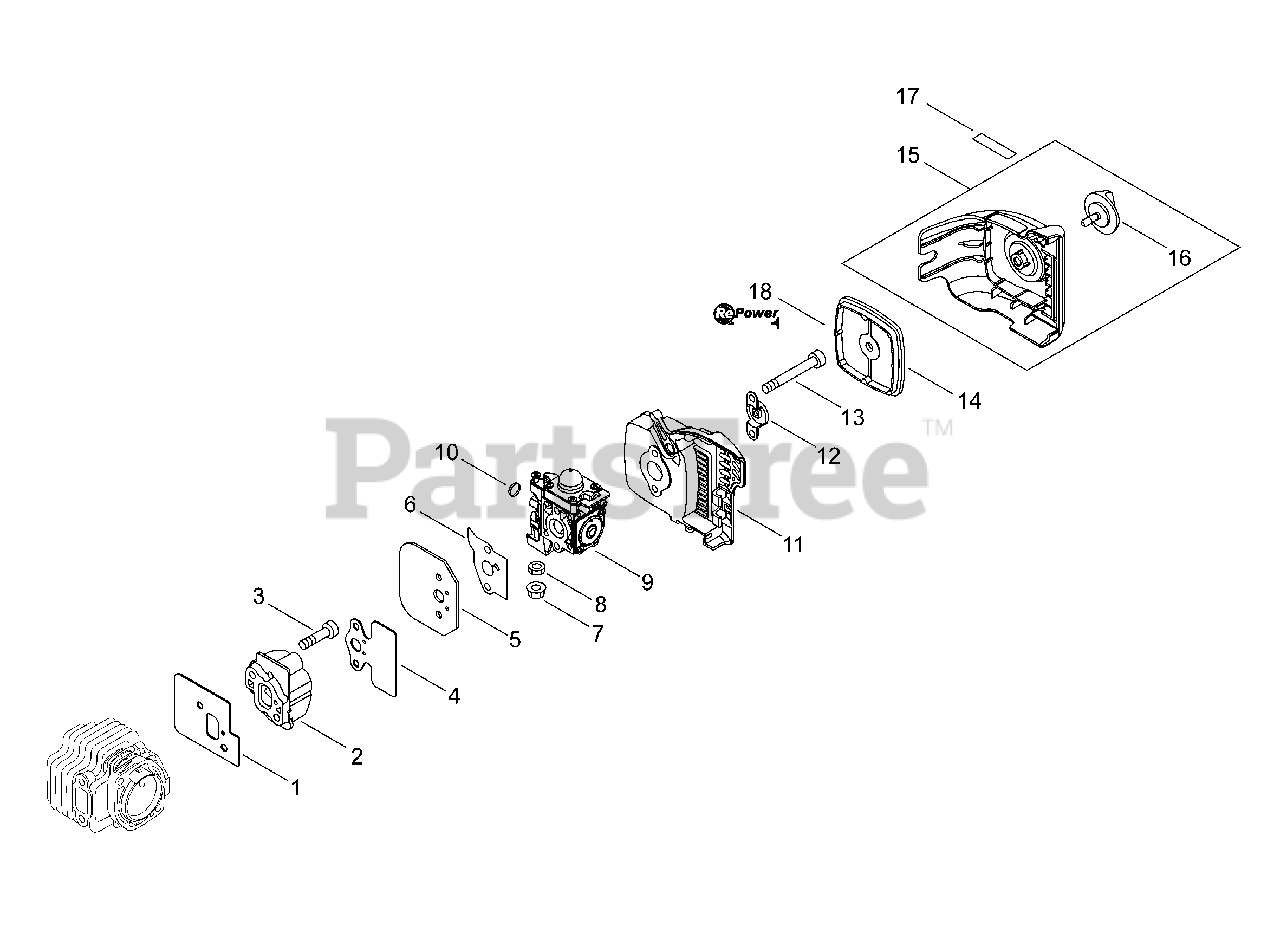

Intake Parts Diagram

  • Title

1

Echo V103001401

GASKET, INTAKE
(Superseded to V103002030)

$1.99

$

In Stock, Qty 20+

0

2

Echo A200000941

INSULATOR, INTAKE
(Superseded to A200001200)

$5.99

$

In Stock, Qty 5

0

3

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

4

Echo V103001730

GASKET, INTAKE

$2.49

$

In Stock, Qty 19

0

5

Echo A209000610

PLATE, INSULATOR

$4.49

$

In Stock, Qty 8

0

6

Echo V103001740

GASKET, INTAKE

$6.49

$

In Stock, Qty 10

0

7

Echo 90051800006

NUT, FLANGE M6

$1.99

$

In Stock, Qty 20+

0

8

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 11

0

9

Echo A021004231

CARBURETOR RB-K119
(Superseded to A021004670)

$68.99

$

In Stock, only 3 left!

0

10

Echo V490001100

CLIP

$1.49

$

In Stock, only 4 left!

0

11

Echo P021046090

CASE, AIR FILTER
(Superseded to P021046091)

$37.99

$

Usually ships in 2-4 days

0

12

Echo A244000070

PLATE, PREVENT

$5.99

$

In Stock, Qty 20+

0

13

Echo V805000100

BOLT, TORX 5×65

$1.99

$

In Stock, Qty 20+

0

14

Echo A226001410

FILTER, AIR - DOUBLE LAYER

Note: See RePower Maintenance Kits

$8.99

$

In Stock, Qty 20+

0

15

Echo P021049130

COVER SET, AIR FILTER

Note: Includes Item 16

$10.99

$

Usually ships in 2-4 days

0

16

Echo V299000610

THUMBSCREW

$6.99

$

Usually ships in 2-4 days

0

17

Echo 89033252730

LABEL, CHOKE

$1.49

$

In Stock, Qty 20+

0

18

Echo 90008

FILTER KIT - REPOWER
(Superseded to 90152)

Note: See RePower Maintenance Kits

$21.99

$

In Stock, Qty 20+

0
