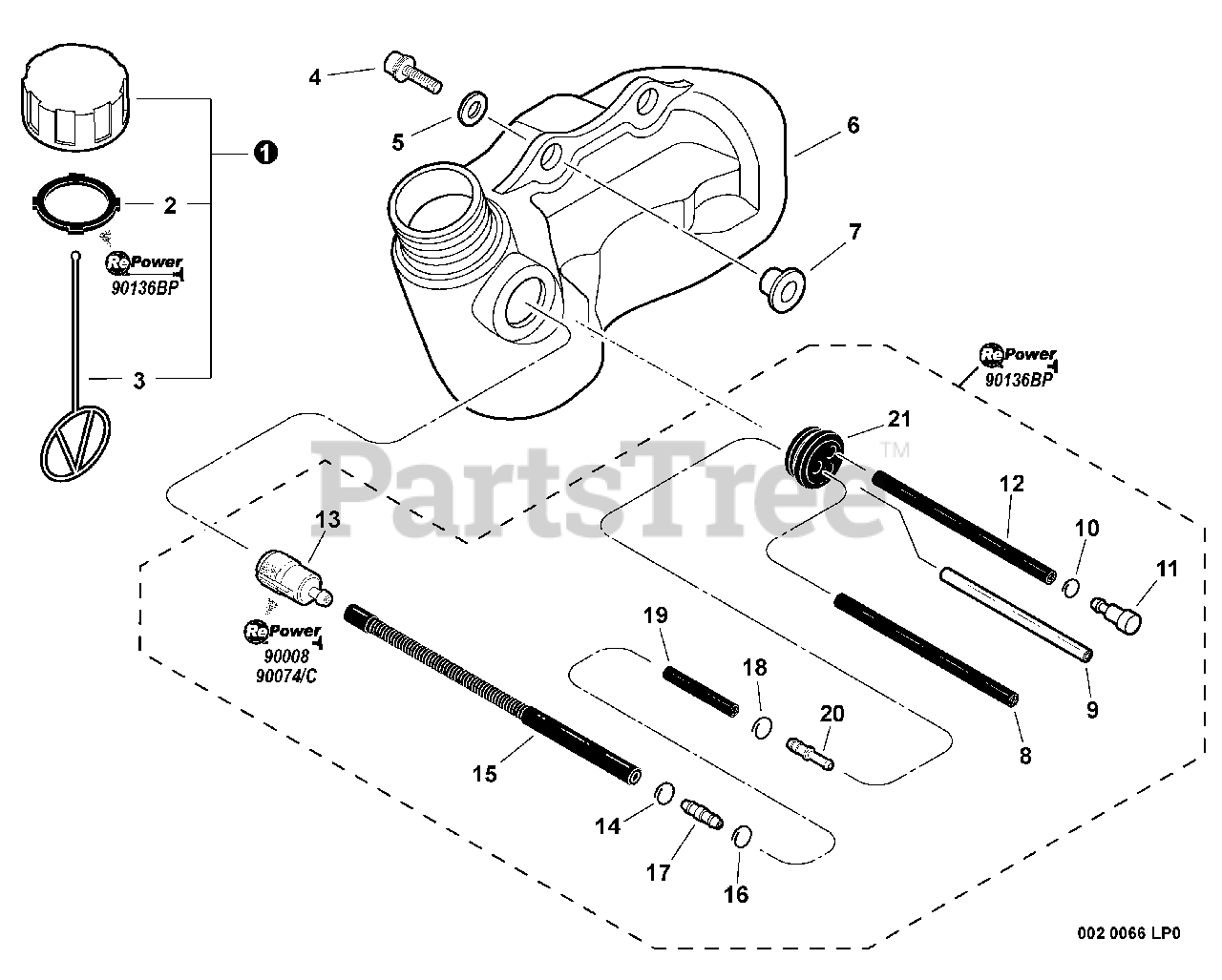

HC-245 - Echo Hedge Trimmer (SN: S72412001001 - S72412999999) Fuel System S/N: S72412014208 - S72412999999 Parts Diagram

Hedge Trimmer

Fuel System S/N: S72412014208 - S72412999999 Parts Diagram

  • Title

1

Echo P021040430

CAP ASSY, FUEL

Note: Includes ITEMS 2-3

$6.99

$

In Stock, Qty 10

0

2

Echo V107000150

GASKET, FUEL CAP

$4.99

$

In Stock, only 4 left!

0

3

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 20+

0

4

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

5

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

6

Echo A350000810

TANK, FUEL
(Superseded to A350002621)

$34.99

$

Usually ships in 2-4 days

0

7

Echo V353000231

COLLAR 5

$4.99

$

Usually ships in 2-4 days

0

8

Echo V471003670

PIPE, FUEL 3×5×61 BLACK
(Superseded to V471005590)

Note: RePower BULK OPTION: N/A

$4.49

$

In Stock, only 4 left!

0

9

Echo 13201040830

PIPE, FUEL 3×6×75 CLEAR

Note: RePower BULK OPTION: 90017

$2.49

$

In Stock, Qty 20+

0

10

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 9

0

11

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

12

Echo V471003680

PIPE, FUEL 3×6×50 BLACK

Note: RePower BULK OPTION: 90015

$0.99

$

In Stock, Qty 8

0

13

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

14

Echo 43741119830

CLIP 6.6 MM

$

$

Not available

15

Echo 13201212361

PIPE, FUEL 3×7×100 FLEXIBLE
(Superseded to 13201212362)

$4.49

$

In Stock, Qty 10

0

16

Echo V491001230

CLIP

$

$

Currently unavailable

17

Echo V186000510

CONNECTOR, PIPE

$1.99

$

In Stock, Qty 20+

0

18

Echo V491001230

CLIP

$

$

Currently unavailable

19

Echo V471001180

PIPE, FUEL 3×6×35 BLACK
(Superseded to V471001181)

Note: RePower BULK OPTION: N/A

$2.49

$

In Stock, Qty 20+

0

20

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

21

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.99

$

In Stock, Qty 20+

0

22

Echo 90008

FILTER KIT - REPOWER
(Superseded to 90152)

$21.99

$

In Stock, Qty 20+

0

23

Echo 90074

TUNE-UP KIT - REPOWER
(Superseded to 90152)

$21.99

$

In Stock, Qty 20+

0

23

Echo 90074C

TUNE-UP KIT - REPOWER
(Superseded to 90152)

Note: CANADA MODELS

$21.99

$

In Stock, Qty 20+

0

24

Echo 90136BP

FUEL SYSTEM KIT
(Superseded to 90136)

$

$

Not available
