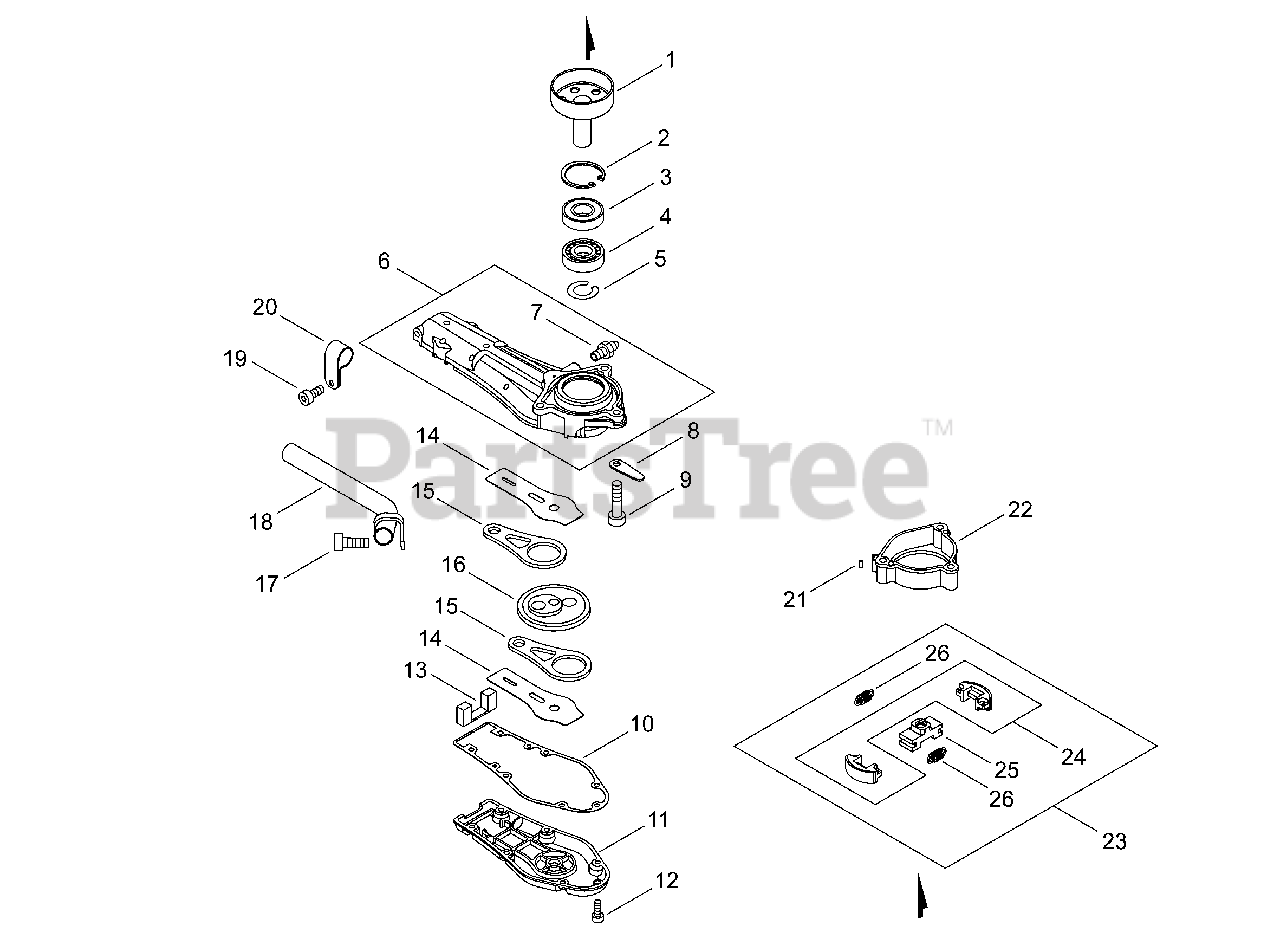

HC-3020 - Echo Hedge Trimmer (SN: T77814001001 - T77814999999) Gear Case Parts Diagram

Hedge Trimmer

Gear Case Parts Diagram

  • Title

1

Echo A556001630

DRUM, CLUTCH

$73.99

$

Usually ships in 2-4 days

0

2

Echo 90070200035

CIRCLIP 35

$2.49

$

In Stock, Qty 11

0

3

Echo 90081206202

BEARING, BALL 6202

$15.99

$

Usually ships in 2-4 days

0

4

Echo 90081036202

BEARING, BALL 6202

$10.99

$

In Stock, only 2 left!

0

5

Echo 90070100014

CIRCLIP 14

$1.49

$

In Stock, only 2 left!

0

6

Echo P021013070

CASE,GEAR
(Superseded to P021015600)

Note: Includes Item 7

$102.99

$

Usually ships in 2-4 days

0

7

Echo 88011010860

NIPPLE, GREASE

$5.99

$

Usually ships in 2-4 days

0

8

Echo C628000160

PIECE, PLATE

$0.99

$

Usually ships in 2-4 days

0

9

Echo V806000140

BOLT, TORX 6

$2.49

$

Usually ships in 2-4 days

0

10

Echo V110000060

GASKET,GEAR CASE

$1.99

$

In Stock, Qty 20+

0

11

Echo C539000021

LID,GEARCASE

$39.99

$

In Stock, only 1 left!

0

12

Echo V804000060

BOLT, TORX 4

$0.99

$

In Stock, only 1 left!

0

13

Echo V541000140

SEAL

$1.99

$

In Stock, Qty 18

0

14

Echo V150001810

PLATE,EYE

$4.49

$

In Stock, only 1 left!

0

15

Echo C532000170

ROD, CONNECTING

$32.99

$

Usually ships in 2-4 days

0

16

Echo V650000300

GEAR,SPUR

$60.99

$

Usually ships in 2-4 days

0

17

Echo V805000130

BOLT, TORX 5

$0.99

$

In Stock, Qty 20+

0

18

Echo A313002000

GUIDE, EXHAUST

$16.99

$

Usually ships in 2-4 days

0

19

Echo V804000040

BOLT, TORX 4

$0.99

$

In Stock, only 4 left!

0

20

Echo A319000510

STAY, MUFFLER

$9.49

$

Usually ships in 2-4 days

0

21

Echo 90056500005

NUT
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

22

Echo A570000320

CASE,CLUTCH

$97.99

$

Usually ships in 2-4 days

0

23

Echo A056000750

CLUTCH ASY

Note: Includes Items 24-26

$49.99

$

Usually ships in 2-4 days

0

24

Echo P021046120

CLUTCH SHOE SET

$14.99

$

Usually ships in 2-4 days

0

25

Echo A552000400

HUB, CLUTCH

$16.99

$

Usually ships in 2-4 days

0

26

Echo A566000000

SPRING, CLUTCH

$1.99

$

In Stock, Qty 12

0
