HC-3020 - Echo Hedge Trimmer (SN: T84613001001 - T84613999999) Starter Parts Diagram

Hedge Trimmer

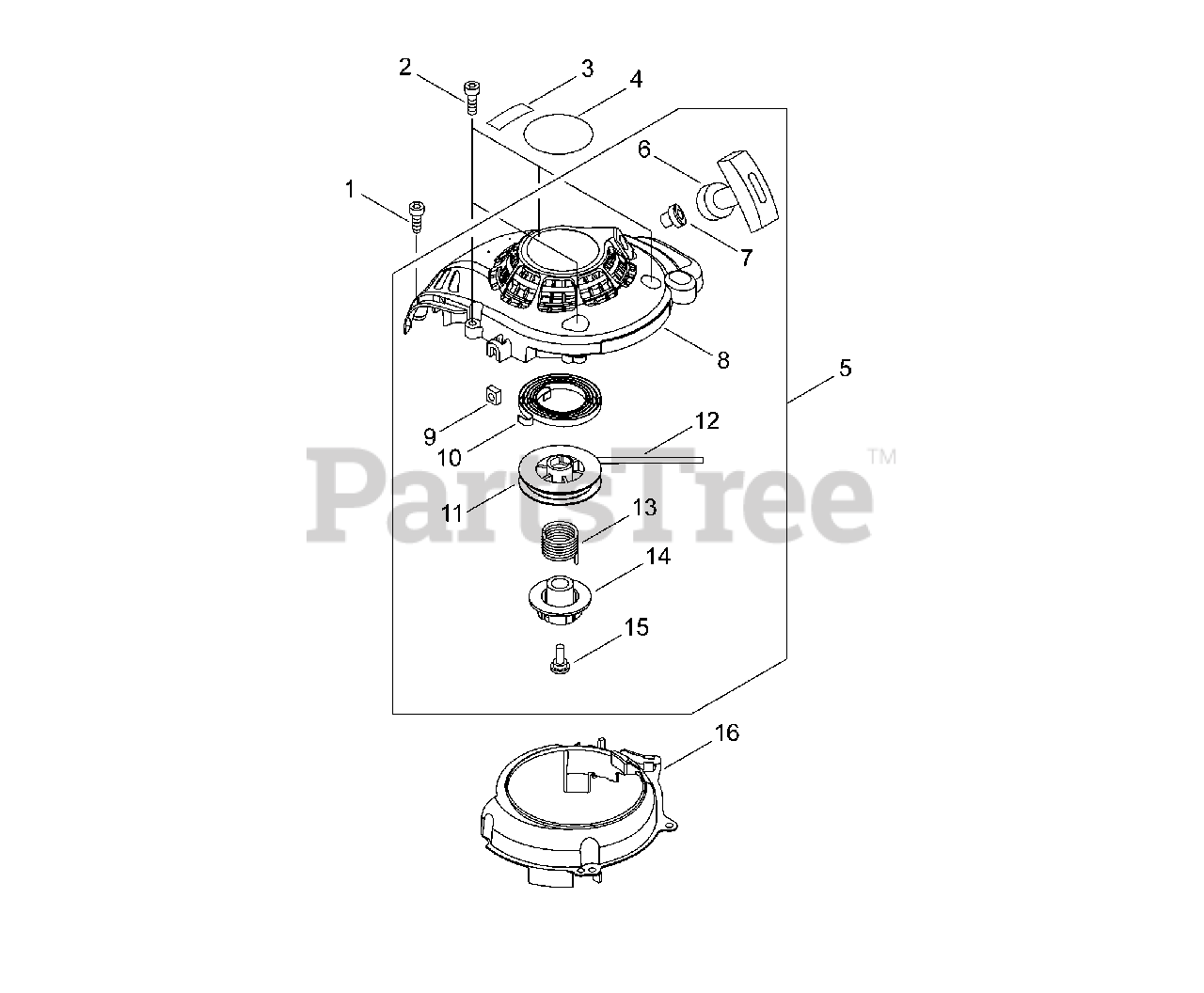

Starter Parts Diagram

  • Title

1

Echo V804000010

BOLT, TORX 4×16

$0.99

$

In Stock, Qty 20+

0

2

Echo V804000060

BOLT, TORX 4×16

$0.99

$

In Stock, Qty 20+

0

3

Echo X543004590

LABEL, MODEL

$

$

Currently unavailable

4

Echo X502000330

LABEL, RECOIL STARTER

$0.99

$

In Stock, Qty 20+

0

5

Echo A051002791

STARTER ASSY, RECOIL

Note: Includes Items 6-15

$46.99

$

In Stock, only 2 left!

0

6

Echo 17722827030

GRIP, STARTER

$7.49

$

In Stock, only 3 left!

0

7

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

8

Echo P022036941

CASE, STARTER

$46.99

$

Usually ships in 2-4 days

0

9

Echo 90056500005

NUT M5
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

10

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 10

0

11

Echo P022027980

REEL, ROPE

$7.49

$

Usually ships in 2-4 days

0

12

Echo P022008260

ROPE, STARTER 3×700

$6.49

$

Usually ships in 2-4 days

0

13

Echo P022008270

SPRING, TORSION

$9.49

$

In Stock, only 4 left!

0

14

Echo P022037310

PLATE, CAM

$9.49

$

Usually ships in 2-4 days

0

15

Echo 17723661830

SCREW
(Superseded to V253000310)

$1.99

$

In Stock, only 2 left!

0

16

Echo A172002610

COVER, FAN

$10.99

$

Usually ships in 2-4 days

0
