HC 320 (UT-01597) - Homelite Pump Pump Parts Diagram

Pump

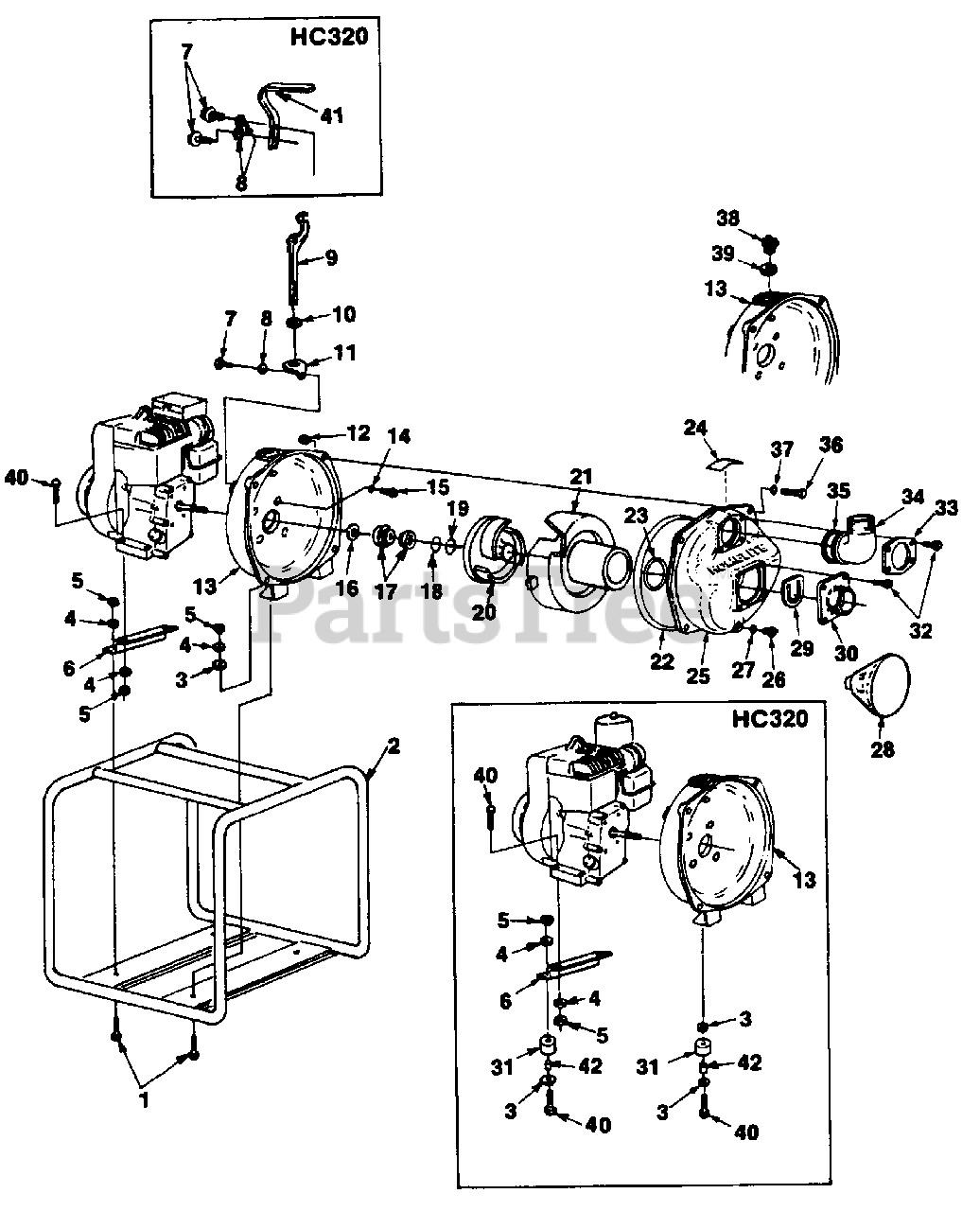

Pump Parts Diagram

  • Title

3

Homelite 84046

WASHER- Flat (5/16")

$

$

Not available

4

Homelite 83002

WASHER- Lock (5/16")
(Superseded to 653671)

$5.49

$

Usually ships in 3-7 days

0

5

Homelite JA443106

NUT- Hex (5/16")
(Superseded to 81018)

$

$

Not available

6

Homelite 48548

SUPPORT- Engine

$

$

Not available

7

Homelite 82485

SCREW- Tap hex hd. (1/2-13 x 1 3/4")

$8.99

$

Usually ships in 3-7 days

0

8

Homelite 83009

WASHER- Lock (1/2-13)

$9.99

$

Usually ships in 3-7 days

0

9

Homelite 48825

WRENCH- Spanner (2")
(Superseded to UP03586)

$

$

Not available

10

Homelite 49133

GROMMET

$

$

Not available

11

Homelite 624501

BRACKET- Spanner wrench

$

$

Not available

12

Homelite 81263

NUT- Hex (1/2-13)

$

$

Not available

13

Homelite 037922

CASING- Pump

$

$

Currently unavailable

14

Homelite 62874

WASHER- Sealing
(Superseded to UP06437)

$5.99

$

Usually ships in 3-7 days

0

15

Homelite 49111

SCREW- Mach. Hex

$

$

Not available

16

Homelite 02964

"O" RING
(Superseded to UP03801)

$22.99

$

Usually ships in 3-7 days

0

17

Homelite 43303A

SEAL- Shaft

$

$

Not available

18

Homelite 62872

SHIM (.010")

$5.99

$

Usually ships in 3-7 days

0

19

Homelite 62873

SHIM (.020")

$

$

Not available

20

Homelite 037942

IMPELLER, 3 H.P.

$

$

Not available

21

Homelite 037932

DIFFUSER, 3 H.P.

$

$

Not available

22

Homelite 48552

"O" RING

$

$

Not available

23

Homelite 48551

RING- Square

$46.99

$

Usually ships in 3-7 days

0

24

Homelite 43265

LABEL- Warning

$7.49

$

Usually ships in 3-7 days

0

25

Homelite 485601

COVER- Suction

$

$

Currently unavailable

26

Homelite A43896

CAP- Drain & Filler
(Superseded to UP07092)

$

$

Currently unavailable

27

Homelite 59910

GASKET- Cap

$

$

Not available

28

Homelite 43307

STRAINER (2")
(Superseded to UP03785)

$

$

Not available

29

Homelite 48553

VALVE- Check

$

$

Not available

30

Homelite 48556

FITTING- Suction (2")

$

$

Not available

31

Homelite 48789

FOOT

$

$

Not available

32

Homelite 82206

SCREW- Hex hd. (1/32-18 x 1")

$5.49

$

Usually ships in 3-7 days

0

33

Homelite 48577

CLAMP- Discharge

$

$

Not available

34

Homelite 48558

ELBOW- Discharge (2")

$

$

Not available

35

Homelite 48795

"O" RING

$

$

Not available

36

Homelite 82484

SCREW- Hex hd. (1/2-13 x 1 1/2")

$

$

Not available

37

Homelite 83020

WASHER- Lock (1/2")

$

$

Not available

38

Homelite A43971

PLUG- Filler

$

$

Not available

39

Homelite 18108

GASKET- Wing nut

$

$

Not available

40

Homelite 80087

SCREW- Cap hex hd. (1/32-18 x 1 1/2")

$

$

Not available

41

Homelite 497421

HANDLE- Carry

$

$

Currently unavailable

42

Homelite 49733

SPACER- Foot

$

$

Not available
