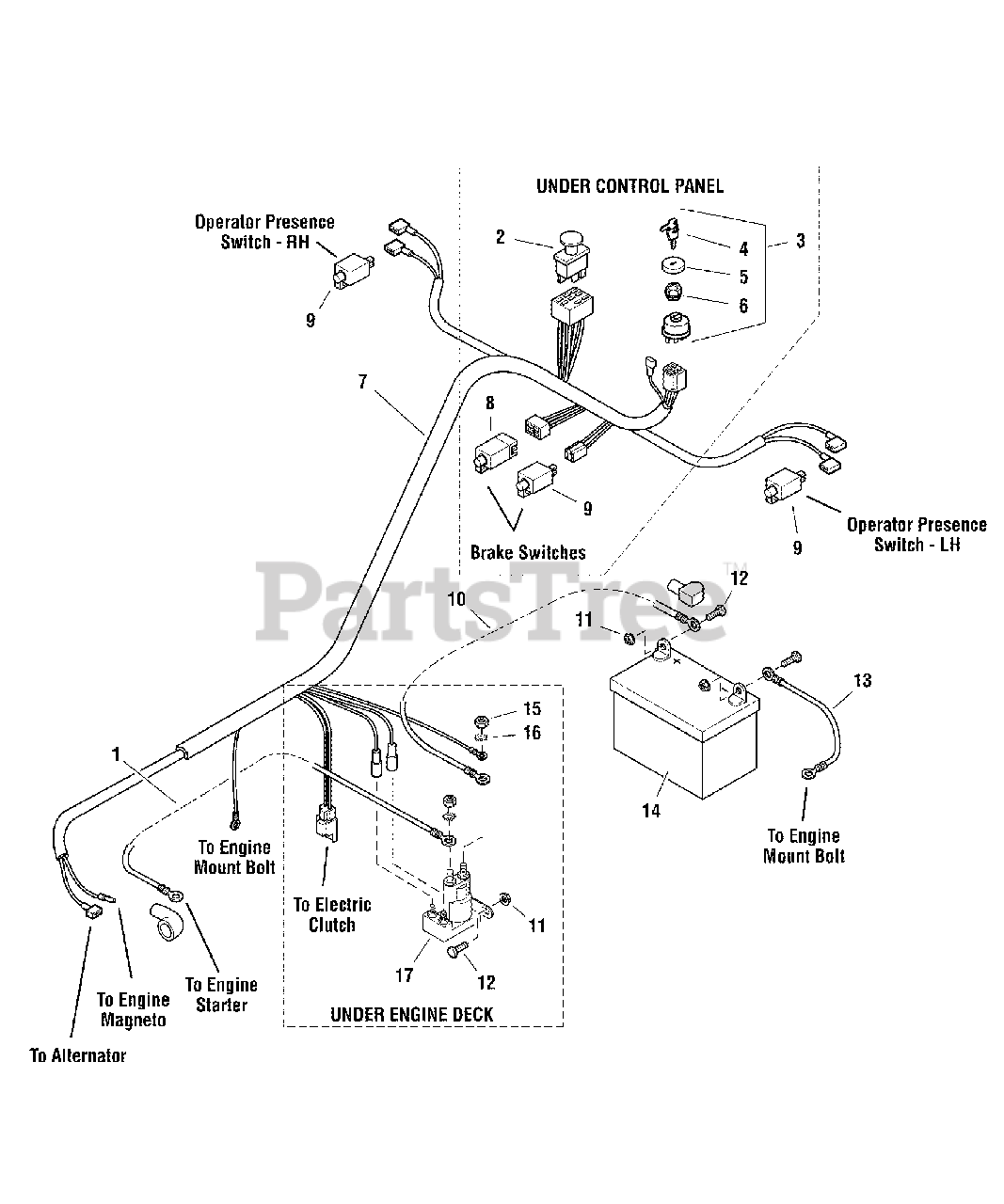

HC 32KAV13E (5901182) - Snapper 32" Walk-Behind Mower, 13hp Electrical Group - Electric Start Parts Diagram

32" Walk-Behind Mower, 13hp

Electrical Group - Electric Start Parts Diagram

  • Title

1

Snapper 5021542

POSITIVE (+) BATTERY CABLE, 30"
(Superseded to 5021542SM)

Note: (See Motion Control, Parking Brake & Operator Presence Group - Electric Start)

$29.99

$

In Stock, only 1 left!

0

2

Snapper 5022180

SWITCH, PTO
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

3

Snapper 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

Note: (Includes Ref No. 4 - 6)

$33.99

$

Usually ships in 2-12 days

0

4

Snapper 5022789

KEY, IGNITION MOLDED SET
(Superseded to 1717163SM)

$8.99

$

In Stock, Qty 12

0

5

Snapper 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.49

$

In Stock, only 1 left!

0

6

Snapper 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper 5061470

WIRE HARNESS
(Superseded to 5061470YP)

$265.99

$

Usually ships in 2-12 days

0

8

Snapper 5022438

SWITCH, Plunger, NO/NO
(Superseded to 5022438SM)

$20.99

$

In Stock, only 1 left!

0

9

Snapper 5021769

SWITCH, Plunger, NC
(Superseded to 5021769SM)

$14.99

$

In Stock, only 1 left!

0

10

Snapper 5021405

POSITIVE (+) BATTERY CABLE, 22"
(Superseded to 5021405SM)

$18.99

$

Usually ships in 2-12 days

0

11

Snapper 5025126

NUT, 1/4-20 Hex Serrated Flange
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper 5025010X6

BOLT, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

13

Snapper 5021406

NEGATIVE (-) BATTERY CABLE, 22"
(Superseded to 5021406SM)

$16.99

$

Usually ships in 2-12 days

0

14

BATTERY, Lawn & Garden, 12V (BCIU1, 340 CCA)

$

$

Not available

15

Snapper 5023216

NUT, Hex Jam, 5/16-24
(Superseded to 5023216SM)

$2.99

$

Usually ships in 2-12 days

0

16

Snapper 5023217

WASHER, Light Lock, 5/16
(Superseded to 5023217SM)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper 1724815

SOLENOID
(Superseded to 1724815FS)

$29.99

$

Usually ships in 2-12 days

0

18

Snapper 5061717D

GUARD, WIRE - RED

Note: (S/N: 2000856281 & Below) (Snapper Pro Red)

$

$

Currently unavailable

18

Snapper 5061717B

GUARD, WIRE - RED

Note: (S/N: 2000856282 to 2013136020) (Ferris Red) (To secure wires away from tire.)

$

$

Currently unavailable
