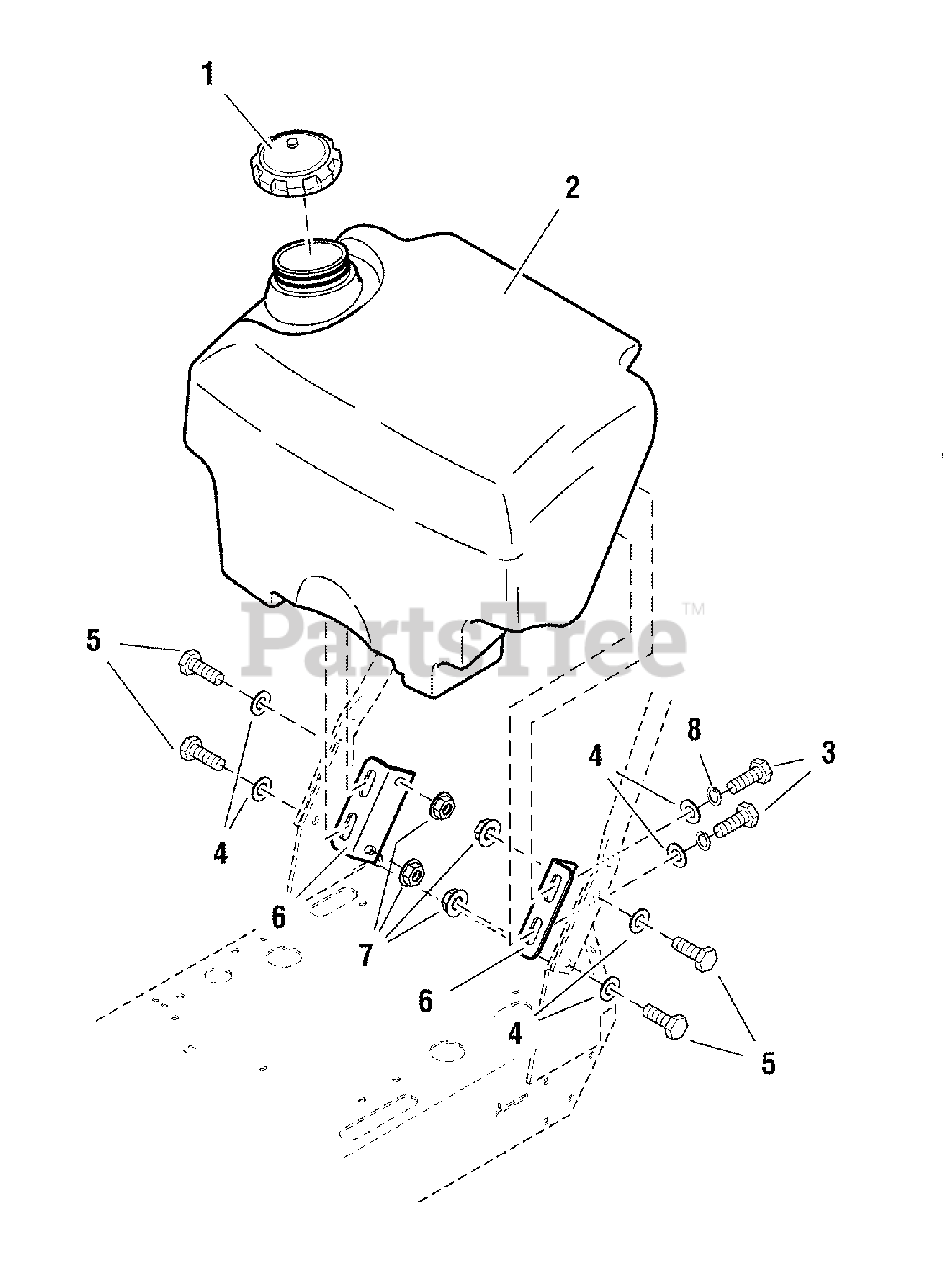

HC 32KAV13E (5901182) - Snapper 32" Walk-Behind Mower, 13hp Fuel Tank & Mount Group Parts Diagram

32" Walk-Behind Mower, 13hp

Fuel Tank & Mount Group Parts Diagram

  • Title

1

Snapper 5022158

CAP, FUEL TANK, 3-1/2" NECK
(Superseded to 5101651SM)

$30.99

$

In Stock, Qty 5

0

2

Snapper 5048149

TANK, FUEL
(Superseded to 5048149SM)

$242.99

$

Usually ships in 2-12 days

0

3

Snapper 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

5

Snapper 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 1 left!

0

6

Snapper 5049228D

MOUNT, FUEL TANK

Note: (S/N: 2000856281 & Below) (Snapper Pro Red)

$

$

Currently unavailable

6

Snapper 5049228B

MOUNT, FUEL TANK

Note: (S/N: 2000856282 & Above) (Ferris Red)

$11.99

$

Usually ships in 2-12 days

0

7

Snapper 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 5025171

WASHER, 3/8" SPLIT LOCK
(Superseded to 5025171SM)

$3.99

$

In Stock, only 3 left!

0
