HC 32RDKAV13ECE (5900846) - Snapper 32" Walk-Behind Mower, 13hp 32" Mower Deck - Frame, Casters, & Shield Group Parts Diagram

32" Walk-Behind Mower, 13hp

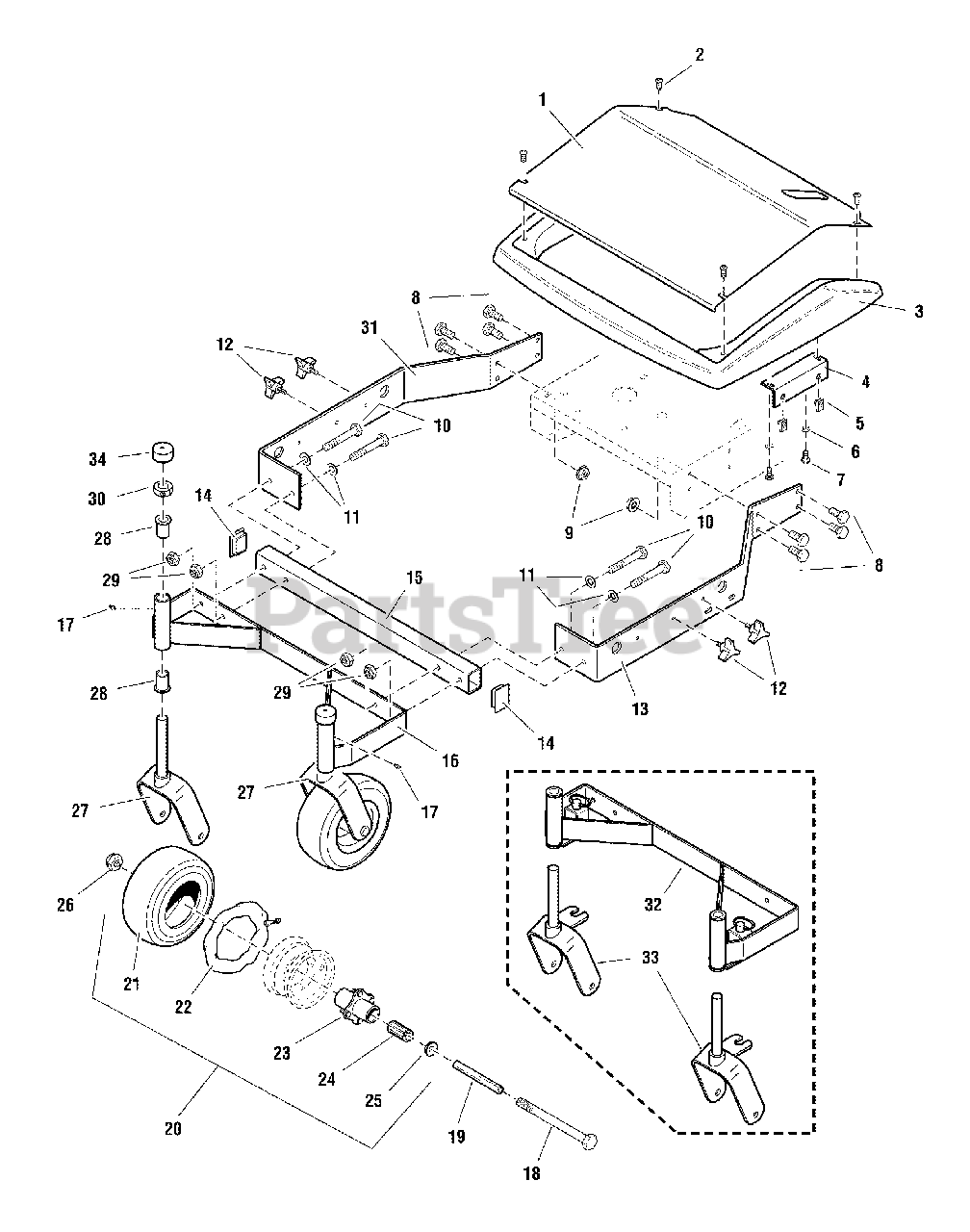

32" Mower Deck - Frame, Casters, & Shield Group Parts Diagram

  • Title

1

Snapper 5048145D

SHIELD INSERT
(Superseded to 5049101YP)

Note: (S/N: 2000856281 & Below)(Snapper Pro Red)

$125.99

$

Usually ships in 2-12 days

0

1

Snapper 5048145B

SHIELD INSERT

Note: (S/N: 2000856282 & Above) (Ferris Red)

$61.99

$

Usually ships in 2-12 days

0

2

Snapper 5025299X4

SCREW, Allen Head, 1/4-20 x 1/2
(Superseded to 5106469)

$2.49

$

Usually ships in 2-12 days

0

3

Snapper 5048150

GUARD, MOWER HOUSING
(Superseded to 5048150SM)

$142.99

$

Usually ships in 2-12 days

0

4

Snapper 5048353D

SHIELD MOUNT BRACKET
(Superseded to 5048353DYP)

Note: (S/N: 2000856281 & Below)(Snapper Pro Red)

$22.99

$

Usually ships in 2-12 days

0

4

Snapper 5048353B

SHIELD MOUNT BRACKET

Note: (S/N: 2000856282 & Above) (Ferris Red)

$23.99

$

Usually ships in 2-12 days

0

5

Snapper 5022308

BODY CLIP, 5/16-18
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

6

Snapper 5025169

WASHER, 1/4" Lock
(Superseded to 5025169FS)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 5025010X6

BOLT, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

8

Snapper 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

9

Snapper 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

Usually ships in 2-12 days

0

11

Snapper 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 5022319

KNOB
(Superseded to 5022319SM)

$7.99

$

Usually ships in 2-12 days

0

13

Snapper 5047648D

FRAME RAIL - LH

Note: (S/N: 2000856281 & Below)(Snapper Pro Red)

$

$

Currently unavailable

13

Snapper 5047648B

FRAME RAIL - LH

Note: (S/N: 2000856282 & Above) (Ferris Red)

$71.99

$

Usually ships in 2-12 days

0

14

Snapper 5022098

CAP, Plastic
(Superseded to 5022098SM)

$3.99

$

In Stock, Qty 5

0

15

Snapper 5048194D

CROSS TUBE
(Superseded to 5048194DYP)

Note: (S/N: 2000856281 & Below)(Snapper Pro Red)

$61.99

$

Usually ships in 2-12 days

0

15

Snapper 5048194B

CROSS TUBE

Note: (S/N: 2000856282 & Above) (Ferris Red)

$41.99

$

Usually ships in 2-12 days

0

16

Snapper 5048969

CASTER MOUNT FRAME, Complete
(Superseded to 5048969SM)

Note: (Includes Ref No. 17 & 28)

$347.99

$

Usually ships in 2-12 days

0

17

Snapper 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper 5025017X44

BOLT, 1/2-13 x 5-1/2
(Superseded to 5025017X44SM)

$7.99

$

In Stock, only 1 left!

0

19

Snapper 5041657

AXLE, Caster Wheel
(Superseded to 5041657SM)

$13.99

$

In Stock, only 2 left!

0

20

Snapper 5021181S

WHEEL & TIRE ASSEMBLY, Silver, 9 x 3.5 x 4, Complete
(Superseded to 5021181SSM)

Note: (Includes Ref No. 21 - 25)

$100.99

$

In Stock, only 4 left!

0

21

Snapper 5021181X1

TIRE, Front, 9 x 3.5 x 4
(Superseded to 5021181X1SM)

$47.99

$

Usually ships in 2-12 days

0

22

Snapper 5021181X2

TUBE
(Superseded to 5021181X2SM)

$24.99

$

Usually ships in 2-12 days

0

23

Snapper 5021181SX3

HUB & BEARING ASSEMBLY, Complete, Silver
(Superseded to 5021181SX3SM)

Note: (Includes Ref No. 24 & 25)

$59.99

$

Usually ships in 2-12 days

0

24

Snapper 5021182

BEARING, ROLLER 3/4" ID X 3.25" (ONE PER TIRE)(SV)
(Superseded to 5021182SM)

Note: (1 per tire)

$18.99

$

In Stock, only 1 left!

0

25

Snapper 5021043

RETAINER, Bearing

Note: (2 per tire)

$6.99

$

Usually ships in 2-12 days

0

26

Snapper 5025056

NUT, 1/2-13 Hex Nylon Lock
(Superseded to 5025056FS)

$4.49

$

In Stock, only 2 left!

0

27

Snapper 5048172D

CASTER YOKE
(Superseded to 5048172DYP)

Note: (S/N: 2000856281 & Below)(Snapper Pro Red) (Use with Ref No. 16, part no. 48969)

$92.99

$

Usually ships in 2-12 days

0

27

Snapper 5048172B

CASTER YOKE

Note: (S/N: 2000856281 & Below) (Snapper Pro Red) (Use with Ref No. 16, part no. 48969)

$87.99

$

Usually ships in 2-12 days

0

28

Snapper 5020823

BUSHING, Flange
(Superseded to 5020823SM)

$10.99

$

In Stock, only 2 left!

0

29

Snapper 5025096

NUT, 3/8-16 Hex Nylon Lock
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 10

0

30

Snapper 5010114

COLLAR, 3/4" Split
(Superseded to 5010114SM)

$19.99

$

Usually ships in 2-12 days

0

31

Snapper 5047649D

FRAME RAIL - RH
(Superseded to 5047649DYP)

Note: (S/N: 2000856281 & Below)(Snapper Pro Red)

$84.99

$

Usually ships in 2-12 days

0

31

Snapper 5047649B

FRAME RAIL - RH

Note: (S/N: 2000856281 & Below) (Snapper Pro Red) (S/N: 2000856282 & Above) (Ferris Red)

$64.99

$

Usually ships in 2-12 days

0

32

Snapper 5048968

CASTER MOUNT FRAME W/ LOCKS, Complete
(Superseded to 5048968DYP)

Note: (Includes Ref No. 17 & 28)

$444.99

$

Usually ships in 2-12 days

0

33

Snapper 5048965D

CASTER YOKE

Note: (S/N: 2000856281 & Below)(Snapper Pro Red) (Use with Ref No. 32, part no. 48968)

$

$

Currently unavailable

33

Snapper 5048965B

CASTER YOKE
(Superseded to 5048965BFS)

Note: (S/N: 2000856281 & Below) (Snapper Pro Red) (Use with Ref No. 32, part no. 48968)

$43.99

$

Usually ships in 2-12 days

0

34

Snapper 5023274

CAP,VINYL, 1.375 X 1
(Superseded to 5023274SM)

$5.99

$

Usually ships in 2-12 days

0
