HC 32RDKAV13ECE (5900846) - Snapper 32" Walk-Behind Mower, 13hp 32" Rear Discharge Mower Deck - Housing, Spindles, Blades & Pulleys Group Parts Diagram

32" Walk-Behind Mower, 13hp

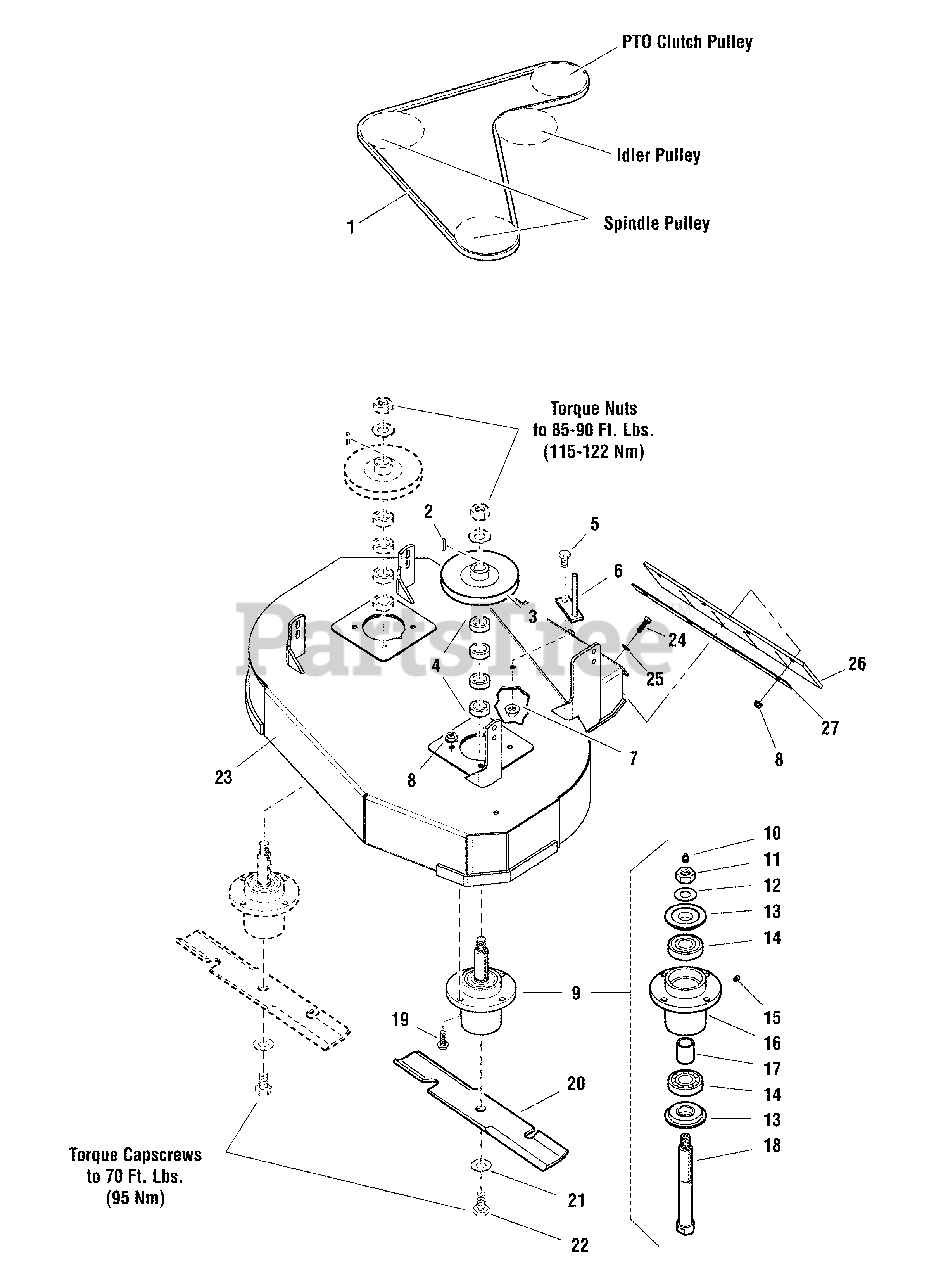

32" Rear Discharge Mower Deck - Housing, Spindles, Blades & Pulleys Group Parts Diagram

  • Title

1

Snapper 5022918

BELT, HA-SEC, 70.40EL, ARAMID, WRPD
(Superseded to 5022918SM)

$48.99

$

Usually ships in 2-12 days

0

2

Snapper 5050407X1

Key, 1/4" Sq. x 1"
(Superseded to 5050407X8SM)

$3.99

$

Usually ships in 2-12 days

0

3

Snapper 5047638

PULLEY, SPINDLE
(Superseded to 5047638SM)

$57.99

$

Usually ships in 2-12 days

0

4

Snapper 5041476

SPACER, 1.02 x 1.56 x .50
(Superseded to 5041476SM)

$5.49

$

Usually ships in 2-12 days

0

5

Snapper 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

6

Snapper 5047777B

BELT GUIDE

$23.99

$

Usually ships in 2-12 days

0

7

Snapper 5025126

NUT, Hex, Serrated Flange, 1/4-20
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

8

Snapper 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 5061096

SPINDLE ASSEMBLY, Complete
(Superseded to 5061096SM)

Note: (Includes Ref No. 10 - 18)

$243.99

$

Usually ships in 2-12 days

0

10

Snapper 5023329

FITTING, 1/8 NPT STR, SHORT
(Superseded to 5023329SM)

$5.49

$

In Stock, only 2 left!

0

11

Snapper 5025405

NUT, 3/4-16 Hex
(Superseded to 5025405SM)

$3.99

$

In Stock, only 2 left!

0

12

Snapper 5025406

WASHER, 3/4 BELLEVILLE CL/ZC
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper 5049793

TRASH SHIELD
(Superseded to 5049793SM)

$16.99

$

In Stock, only 2 left!

0

14

Snapper 5023330

BEARING, .98 X 2.44 X .67
(Superseded to 5023330SM)

$23.99

$

In Stock, only 3 left!

0

15

Snapper 5023296

FITTING, RELIEF, 1-5 PSI
(Superseded to 5023296SM)

$7.49

$

In Stock, only 1 left!

0

16

Snapper 5061097

HOUSING, SPINDLE
(Superseded to 5102993YP)

$90.99

$

In Stock, only 1 left!

0

17

Snapper 5061099

SPACER, 1.00 X 1.25 X 1.75
(Superseded to 5061099SM)

$11.99

$

Usually ships in 2-12 days

0

18

Snapper 5061100

SHAFT, SPINDLE
(Superseded to 5061100SM)

$75.99

$

Usually ships in 2-12 days

0

19

Snapper 5023156

BOLT, Flange Head, 5/16-18 x 1-1/4
(Superseded to 5023156SM)

$3.99

$

In Stock, Qty 5

0

20

Snapper 5020843X2

MOWER BLADE, 16-1/4"

Note: (SET OF 3 BLADES)

$53.99

$

Usually ships in 2-12 days

0

21

Snapper 5025159

WASHER, 5/8" USS
(Superseded to 5025477SM)

$3.99

$

In Stock, only 2 left!

0

22

Snapper 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

23

Snapper 5600326

DECK SHELL W/ DECALS (5405152B)

Note: (Includes safety decals)

$1424.99

$

Usually ships in 2-12 days

0

24

Snapper 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

25

Snapper 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

26

Snapper 5405149

FLAP, RUBBER, 32RD

$53.99

$

Usually ships in 2-12 days

0

27

Snapper 5405260B

PLATE, RETAINING, 32RD - RED

$9.49

$

Usually ships in 2-12 days

0
