HC 32RDKAV13ECE (5900846) - Snapper 32" Walk-Behind Mower, 13hp Engine, PTO, & Deck Drive Idler Group Parts Diagram

32" Walk-Behind Mower, 13hp

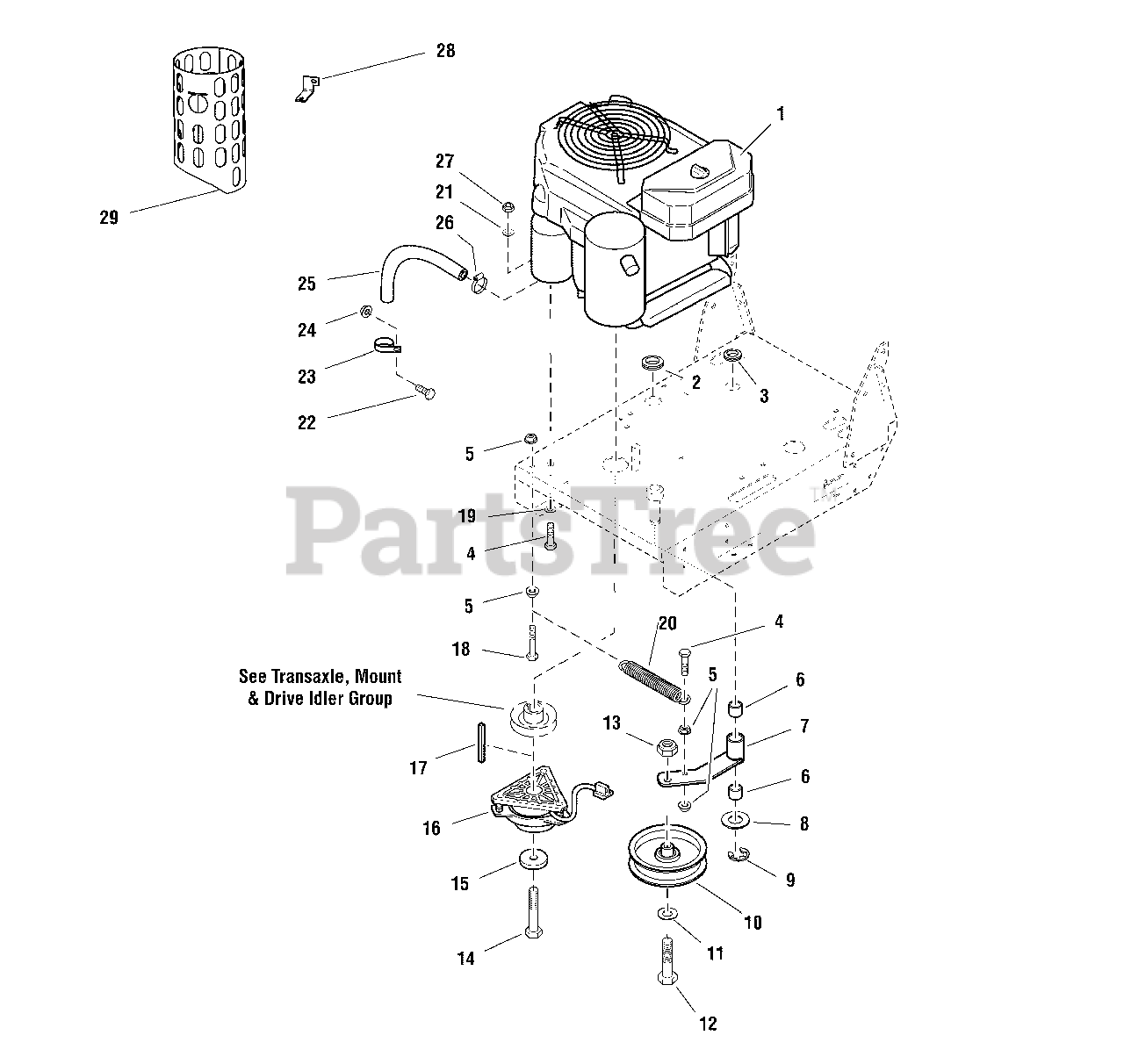

Engine, PTO, & Deck Drive Idler Group Parts Diagram

  • Title

1

Snapper FH381V-BS28-R

* ENGINE, 13HP KAW ELEC START Mod. FH381V-BS28-R

$

$

Currently unavailable

2

Snapper 5021379

GROMMET, 7/8
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

3

Snapper 5021077

GROMMET, 1/2
(Superseded to 5021077SM)

$2.99

$

Usually ships in 2-12 days

0

4

Snapper 5025011X12

BOLT, 5/16-18 X 1-1/2" GD5 YZ
(Superseded to 5025011X12SM)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper 5025139

NUT, 5/16-18 Hex Large Serrated Flange
(Superseded to 5025139SM)

$3.49

$

In Stock, only 2 left!

0

6

Snapper 5020876B

BUSHING, BRASS, 3/4 X 1 X 1
(Superseded to 5020876BSM)

$11.99

$

Usually ships in 2-12 days

0

7

Snapper 5047661D

DECK DRIVE IDLER ARM
(Superseded to 5047661DYP)

Note: (S/N: 2000856281 & Below) (Snapper Pro Red)

$28.99

$

Usually ships in 2-12 days

0

7

Snapper 5047661B

DECK DRIVE IDLER ARM

Note: (S/N: 2000856282 & Above) (Ferris Red)

$20.99

$

Usually ships in 2-12 days

0

8

Snapper 5025160

WASHER, 3/4" SAE
(Superseded to 5025160SM)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper 5020863

C-CLIP
(Superseded to 5020863SM)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 5021369

IDLER PULLEY
(Superseded to 5021369SM)

$73.99

$

Usually ships in 2-12 days

0

11

Snapper 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 5025018X20

BOLT, 1/2-20 X 2-1/2" GD5 CZ
(Superseded to 5025018X20SM)

$6.99

$

In Stock, only 1 left!

0

13

Snapper 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

Usually ships in 2-12 days

0

14

Snapper 5047632

BOLT, CRANKSHAFT, 7/16"X2.75
(Superseded to 5102865)

$5.49

$

In Stock, only 1 left!

0

15

Snapper 5042132

SPACER, .45 x 1.62 x .37
(Superseded to 5102965YP)

$23.99

$

Usually ships in 2-12 days

0

16

Snapper 1717664

CLUTCH,#504586, ELECTRIC, OGURA JD-11
(Superseded to 1757359)

$290.99

$

In Stock, only 1 left!

0

17

Snapper 5050407X3

KEY, 1/4 SQ. X 2
(Superseded to 5050407X16SM)

$4.99

$

Usually ships in 2-12 days

0

18

Snapper 5025011X18

BOLT, 5/16-18 X 2-1/4" GD5 YZ
(Superseded to 5025011X18SM)

$3.99

$

In Stock, only 1 left!

0

19

Snapper 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

20

Snapper 5021103

SPRING, Extension
(Superseded to 5021103SM)

$19.99

$

Usually ships in 2-12 days

0

21

Snapper 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

22

Snapper 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

23

Snapper 5023173

CLAMP, HOSE, 1.000 DIA.
(Superseded to 5023173SM)

$3.99

$

Usually ships in 2-12 days

0

24

Snapper 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 9

0

25

Snapper 5050857X10P5

HOSE, 1/2" PUSH-ON, 10.50"

$

$

Not available

26

Snapper 5021392

CLAMP, #6 HOSE, STAINLESS
(Superseded to 5021392SM)

$4.99

$

In Stock, only 2 left!

0

27

Snapper 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

28

Snapper 5049340D

BRACKET, MUFFLER GUARD - RED
(Superseded to 5049340DYP)

Note: (S/N: 2000856281 & Below) (Snapper Pro Red)

$11.99

$

Usually ships in 2-12 days

0

28

Snapper 5049340B

BRACKET, MUFFLER GUARD - RED

Note: (S/N: 2000856282 & Above) (Ferris Red)

$

$

Currently unavailable

29

Snapper 5049338D

WELD, MUFFLER GUARD - RED
(Superseded to 5049338DYP)

Note: (S/N: 2000856281 & Below) (Snapper Pro Red)

$99.99

$

Usually ships in 2-12 days

0

29

Snapper 5049338B

WELD, MUFFLER GUARD - RED

Note: (S/N: 2000856282 & Above) (Ferris Red)

$

$

Currently unavailable

30

Snapper 5022665

BODY CLIP, 1/4-20 X 1/2" DEEP (Not Shown)
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

31

Snapper 5025249

BOLT, M8-1.25 X 20MM GD8.8 (Not Shown)
(Superseded to 5025249YP)

$2.99

$

Usually ships in 2-12 days

0
