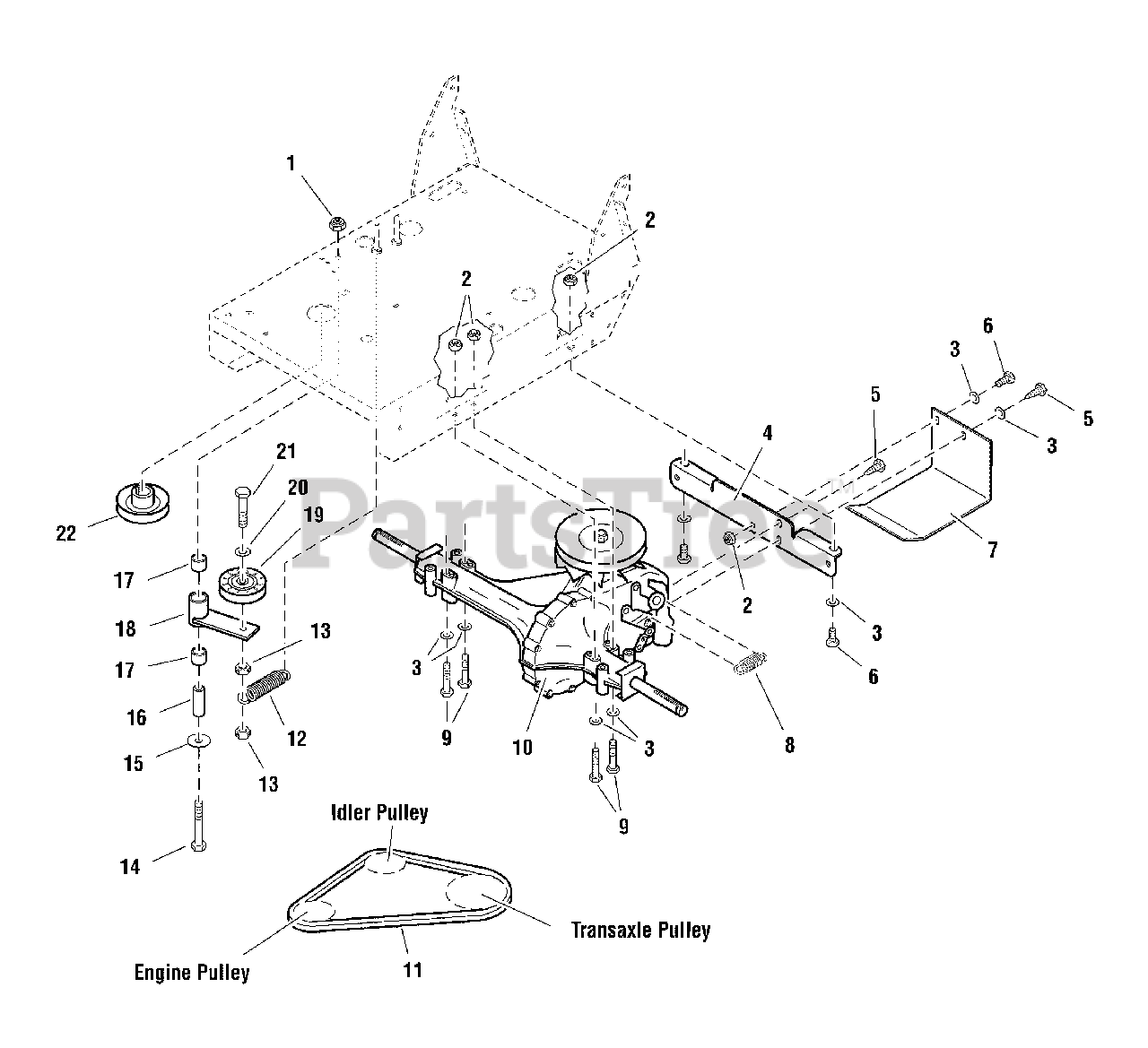

HC 32RDKAV13ECE (5900846) - Snapper 32" Walk-Behind Mower, 13hp Transaxle & Mount Group Parts Diagram

32" Walk-Behind Mower, 13hp

Transaxle & Mount Group Parts Diagram

  • Title

1

Snapper 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

2

Snapper 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

4

Snapper 5047582D

BRACE, TRANSAXLE
(Superseded to 5047582DYP)

Note: (S/N: 2000856281 & Below) (Snapper Pro Red)

$16.99

$

Usually ships in 2-12 days

0

4

Snapper 5047582B

BRACE, TRANSAXLE

Note: (S/N: 2000856282 & Above) (Ferris Red)

$12.99

$

Usually ships in 2-12 days

0

5

Snapper 5025059X6

BOLT, 5/16-18 X 3/4", SELF-TAPPING
(Superseded to 5025059X6FS)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 5025011X8

BOLT, 5/16-18 X 1" GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper 5048312D

SKID PLATE
(Superseded to 5048312DYP)

Note: (S/N: 2000856281 & Below) (Snapper Pro Red)

$47.99

$

Usually ships in 2-12 days

0

7

Snapper 5048312B

SKID PLATE

Note: (S/N: 2000856282 & Above) (Ferris Red)

$33.99

$

Usually ships in 2-12 days

0

8

Snapper 5022967

HYDRO RETURN SPRING
(Superseded to 5022967SM)

$16.99

$

Usually ships in 2-12 days

0

9

Snapper 5025011X24

BOLT, 5/16-18 X 3" GD5 YZ
(Superseded to 5025011X24SM)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 5022905

TRANSAXLE, HYDROSTATIC
(Superseded to 5022905SM)

$1253.99

$

Usually ships in 2-12 days

0

11

Snapper 5023058

BELT,# 46-4631
(Superseded to 5023058SM)

$26.99

$

In Stock, only 1 left!

0

12

Snapper 5020807

SPRING, EXTENSION
(Superseded to 5020807SM)

$8.49

$

Usually ships in 2-12 days

0

13

Snapper 5025100

NUT, 3/8-16 HEX SIDE LOCK
(Superseded to 5025100SM)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, Qty 5

0

15

Snapper 5025165

WASHER, 3/8" FENDER
(Superseded to 5025165SM)

$3.99

$

In Stock, only 1 left!

0

16

Snapper 5047716

SPACER, .41 X .75 X 2.06
(Superseded to 5047716SM)

$10.99

$

Usually ships in 2-12 days

0

17

Snapper 5020876B

BUSHING, BRASS, 3/4 X 1 X 1
(Superseded to 5020876BSM)

$11.99

$

Usually ships in 2-12 days

0

18

Snapper 5047717D

PIVOT ARM, WELDMENT
(Superseded to 5047717DYP)

Note: (S/N: 2000856281 & Below) (Snapper Pro Red)

$33.99

$

Usually ships in 2-12 days

0

18

Snapper 5047717B

PIVOT ARM, WELDMENT

Note: (S/N: 2000856282 & Above) (Ferris Red)

$16.99

$

Usually ships in 2-12 days

0

19

Snapper 5043627

PULLEY, IDLER ASSEMBLY
(Superseded to 5043627SM)

$45.99

$

In Stock, only 2 left!

0

20

Snapper 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, Qty 7

0

22

Snapper 5047914

PULLEY, DRIVE, 4.50 OD X 1.000 ID
(Superseded to 5047914SM)

$40.99

$

In Stock, only 1 left!

0
