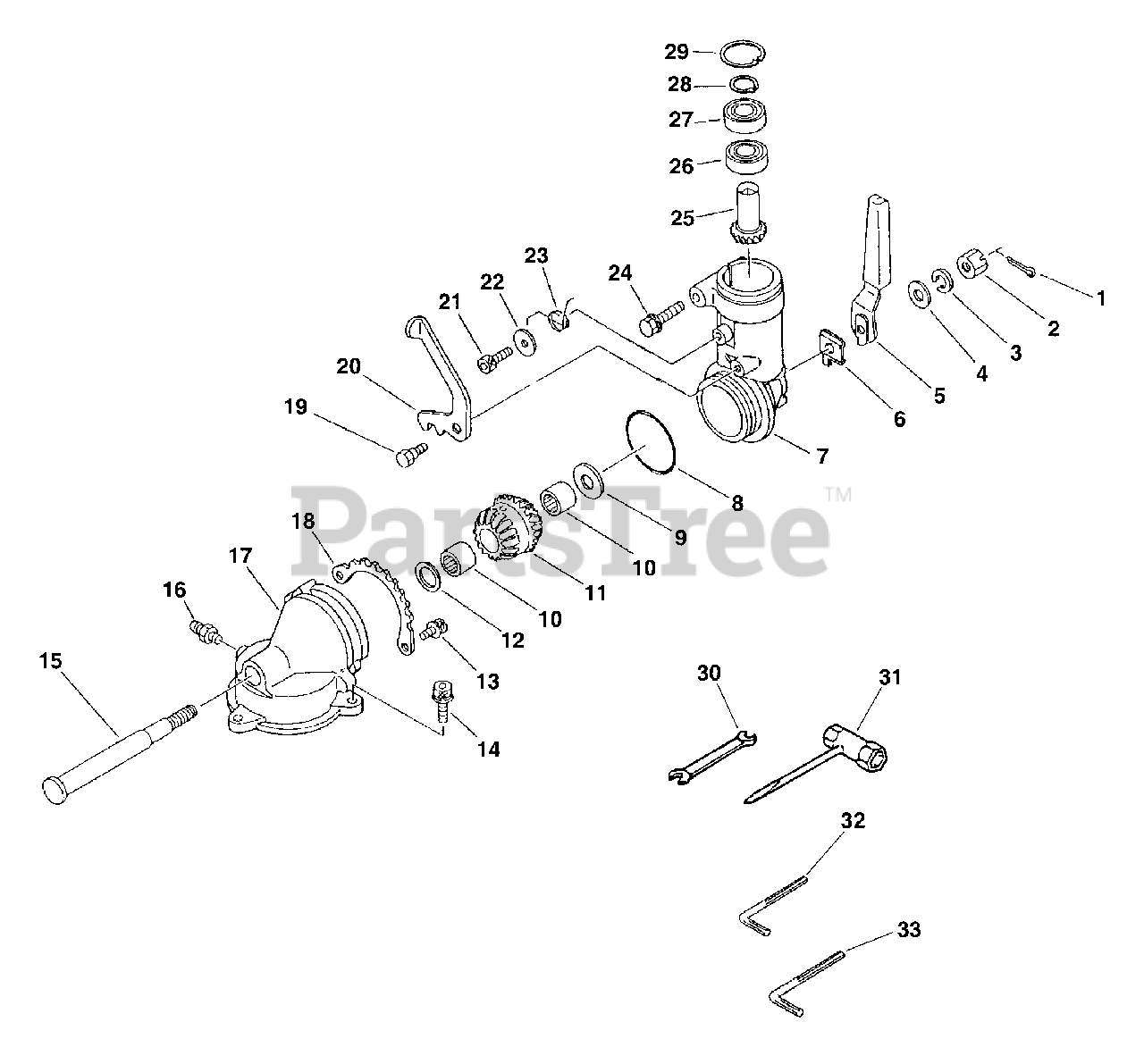

HCA-2400 - Echo Articulating Hedge Trimmer (Original Version) Articulating Gear Case, Tools Parts Diagram

Articulating Hedge Trimmer

Articulating Gear Case, Tools Parts Diagram

  • Title

1

Echo 90030016016

PIN, COTTER 1.6×16

$0.99

$

In Stock, only 4 left!

0

2

Echo 90052900006

NUT, SLOT 6

$2.99

$

In Stock, only 1 left!

0

3

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 14

0

4

Echo 40372007350

WASHER

$2.49

$

In Stock, only 3 left!

0

5

Echo 19051112360

PIECE, LEVER
(Superseded to 19051112361)

$37.99

$

Usually ships in 2-4 days

0

6

Echo 61047812360

PLATE, ANGLE
(Superseded to 61047812361)

$3.99

$

Usually ships in 2-4 days

0

7

Echo 61041012361

CASE, GEAR

$152.99

$

Usually ships in 2-4 days

0

8

Echo 90072400032

O-RING 32

$17.99

$

In Stock, only 3 left!

0

9

Echo 10013206720

WASHER

$2.49

$

Usually ships in 2-4 days

0

10

Echo 10011311520

BEARING, NEEDLE

$14.99

$

In Stock, only 1 left!

0

11

Echo 61036112360

GEAR, BEVEL

$114.99

$

In Stock, only 1 left!

0

12

Echo 61031712360

WASHER
(Superseded to 61031712460)

$3.49

$

Usually ships in 2-4 days

0

13

Echo 90016204010

BOLT 4×10

$1.49

$

In Stock, Qty 20+

0

14

Echo 90016205018

BOLT 5×18

$0.99

$

In Stock, only 3 left!

0

15

Echo 61031012360

SHAFT, GEAR

$55.99

$

Usually ships in 2-4 days

0

16

Echo 88011010860

FITTING, GREASE

$6.49

$

Usually ships in 2-4 days

0

17

Echo 61043112360

COVER, GEAR CASE

$164.99

$

Usually ships in 2-4 days

0

18

Echo 61047012360

RESETTER, LATCH
(Superseded to P021000850)

$30.99

$

Usually ships in 2-4 days

0

19

Echo 61047412360

BOLT 5

$3.99

$

Usually ships in 2-4 days

0

20

Echo 61047212360

PAWL
(Superseded to P021000850)

$30.99

$

Usually ships in 2-4 days

0

21

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 7

0

22

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

23

Echo 17801312360

SPRING, THROTTLE LOCKOUT

$7.49

$

Usually ships in 2-4 days

0

24

Echo 90014205035

BOLT 5×35

$0.99

$

Usually ships in 2-4 days

0

25

Echo 61031112360

GEAR, DRIVE

$74.99

$

Usually ships in 2-4 days

0

26

Echo 90085506900

BEARING, BALL 6900

$21.99

$

In Stock, only 2 left!

0

27

Echo 90085806900

BEARING, BALL 6900Z

$27.99

$

In Stock, only 2 left!

0

28

Echo 90070600010

RING, SNAP Ø10

$1.49

$

In Stock, Qty 20+

0

29

Echo 90070200022

RING, SNAP Ø22

$2.49

$

In Stock, Qty 13

0

30

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0

31

Echo X602000020

T-WRENCH 17x-19 L200

$4.49

$

In Stock, Qty 7

0

32

Echo 89561203430

WRENCH, ALLEN 3 MM
(Superseded to X605000090)

$0.99

$

In Stock, only 2 left!

0

33

Echo A605000100

WRENCH, ALLEN 4 MM

$

$

Currently unavailable
