HCA-2400 - Echo Articulating Hedge Trimmer (Type 1E) Engine, Crankcase, Cylinder Cover, Clutch Parts Diagram

Articulating Hedge Trimmer (Type 1E)

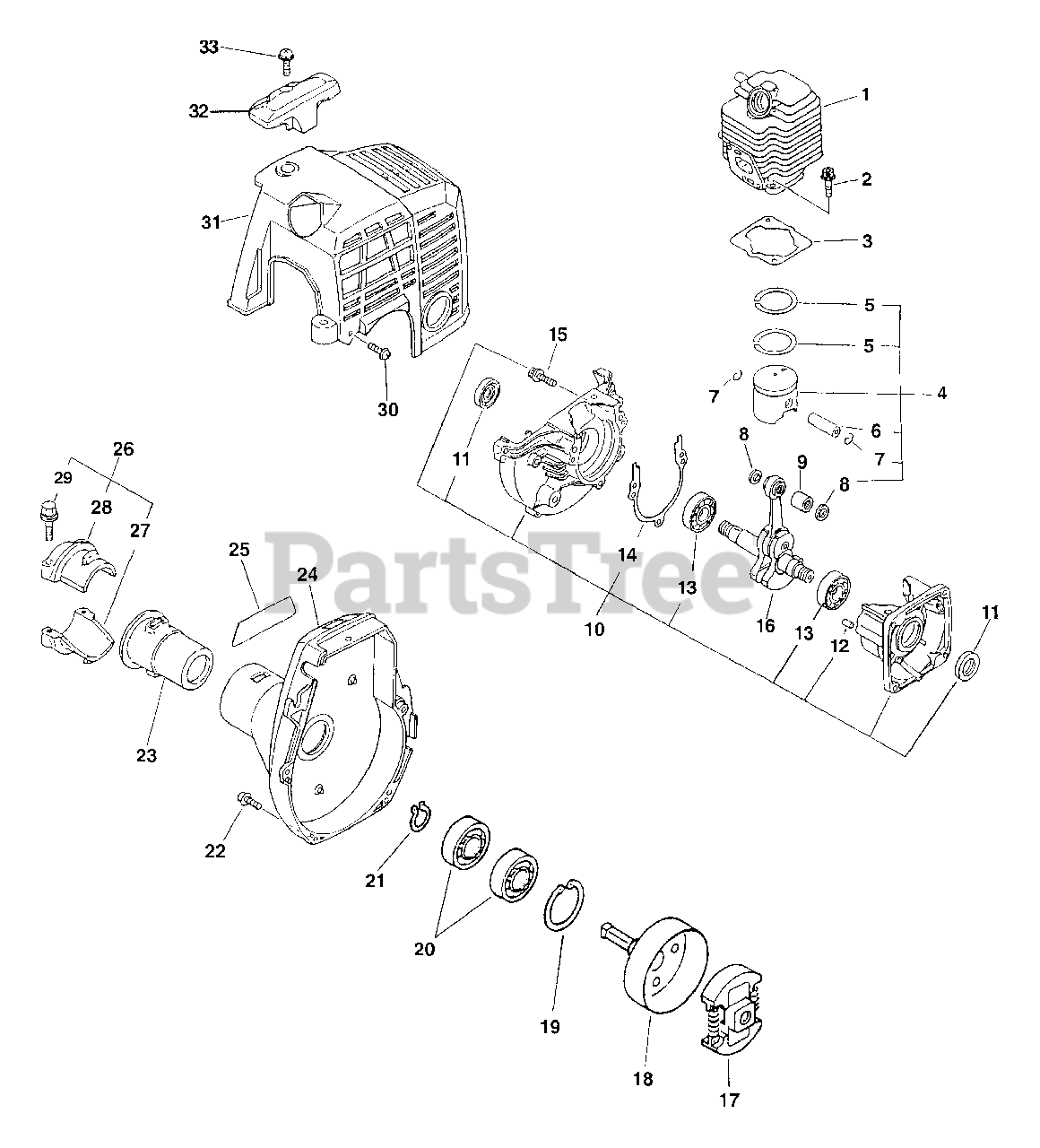

Engine, Crankcase, Cylinder Cover, Clutch Parts Diagram

  • Title

1

Echo 10100308960

CYLINDER/PISTON KIT
(Superseded to P021035810)

$

$

Not available

2

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

3

Echo 101010-44332

GASKET, CYLINDER

Note: Included In GASKET KIT

$4.99

$

In Stock, Qty 7

0

4

Echo 10000009563

PISTON KIT
(Superseded to 10000052130)

Note: Includes ITEMS 5-8

$84.99

$

In Stock, only 1 left!

0

5

Echo 10001109560

RING, PISTON

$9.99

$

In Stock, only 2 left!

0

6

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

7

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

8

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

9

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

10

CRANKCASE KIT

Note: Includes ITEMS 11-15 Included In ITEM 34

$

$

Not available

11

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

12

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

13

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

14

GASKET, CRANKCASE

Note: Included In GASKET KIT

$

$

Not available

15

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 10

0

16

CRANKSHAFT ASSY

Note: Included In ITEM 34

$

$

Not available

17

Echo 17500056830

CLUTCH ASSY
(Superseded to 17500056831)

$32.99

$

In Stock, only 1 left!

0

18

Echo 17500548930

DRUM, CLUTCH
(Superseded to 17500548931)

$16.99

$

In Stock, only 2 left!

0

19

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

20

Echo 9405106001

BEARING, BALL 6001
(Superseded to 9406106001)

$7.49

$

In Stock, Qty 20+

0

21

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

22

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0

23

Echo 61091055230

CUSHION Ø25

$8.49

$

In Stock, only 2 left!

0

24

Echo 10150352131

COVER ASSY, FAN

$78.99

$

Usually ships in 2-4 days

0

25

Echo 89011512360

LABEL, MODEL

$8.49

$

Usually ships in 2-4 days

0

26

Echo 61090355230

RETAINER KIT

Note: Includes ITEMS 27-29

$21.99

$

Usually ships in 2-4 days

0

27

Echo A575000100

HOLDER - LOWER

$9.99

$

Usually ships in 2-4 days

0

28

Echo 61092227432

HOLDER, MAIN PIPE - UPPER

$6.99

$

In Stock, only 2 left!

0

29

Echo 900142-05025

BOLT - 5×25

$0.99

$

In Stock, Qty 9

0

30

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0

31

Echo 10151448930

COVER, ENGINE

$14.99

$

In Stock, only 2 left!

0

32

Echo 15991254130

GUARD, TOP

$9.49

$

In Stock, only 3 left!

0

33

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

34

Echo SB1027

SHORT BLOCK ES-2400
(Superseded to Discontinued)

$

$

Not available

35

Echo 88900005960

GASKET KIT
(Superseded to Discontinued)

$

$

Not available
