HCA-2400 - Echo Articulating Hedge Trimmer (Type 1E) Gearcase, Blades Parts Diagram

Articulating Hedge Trimmer (Type 1E)

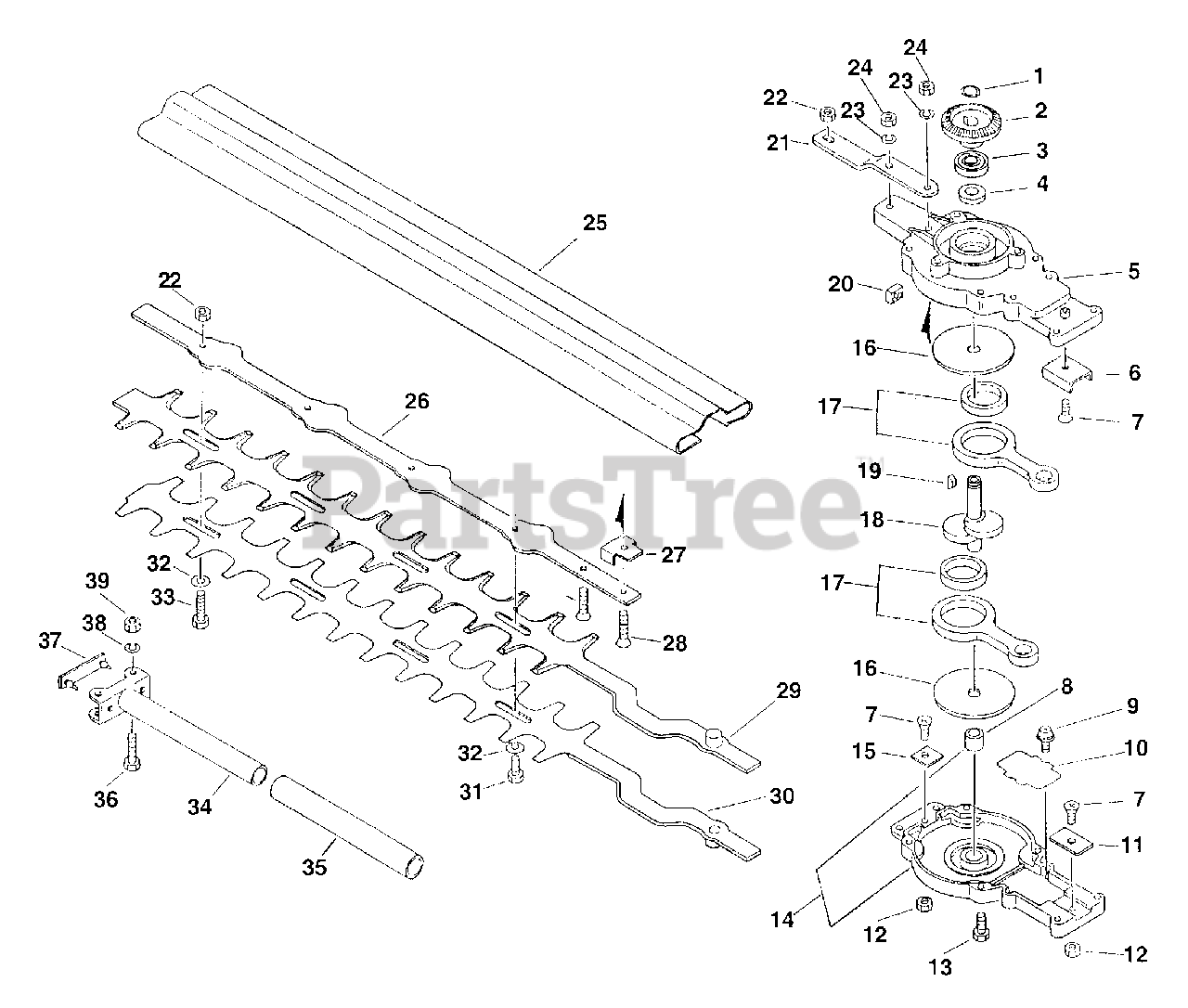

Gearcase, Blades Parts Diagram

  • Title

Echo 90082

GEAR CASE ASSY

Note: Includes ITEMS 1-34, 36-39

$584.99

$

Usually ships in 2-4 days

0

1

Echo 90070100010

RING, RETAINING - 10

$0.99

$

In Stock, only 2 left!

0

2

Echo 61031212360

GEAR - SPUR

$118.99

$

In Stock, only 1 left!

0

3

Echo 90080006000

BEARING, BALL - 6000

$12.99

$

In Stock, only 2 left!

0

4

Echo 10021305930

SEAL, OIL

$5.99

$

In Stock, only 1 left!

0

5

Echo 61042012361

CASE, GEAR

$168.99

$

Usually ships in 2-4 days

0

6

Echo 61044154030

GUIDE

$11.99

$

Usually ships in 2-4 days

0

7

Echo 90021204008

SCREW - 4X8

$0.99

$

In Stock, Qty 8

0

8

Echo 16061605410

BEARING, PLAIN

$3.49

$

Usually ships in 2-4 days

0

9

Echo 90024203006

SCREW - 3X6

$0.99

$

Usually ships in 2-4 days

0

10

Echo 61042454030

PLATE, SIDE

$12.99

$

In Stock, Qty 6

0

11

Echo 61044754030

PLATE

$5.99

$

Usually ships in 2-4 days

0

12

Echo 90050000004

NUT - 4

$0.99

$

In Stock, Qty 20+

0

13

Echo 90014205020

BOLT - 5X20

$0.99

$

Usually ships in 2-4 days

0

14

Echo 61040954030

GEAR CASE LID ASSY
(Superseded to 61040954031)

Note: Includes ITEM 8

$69.99

$

Usually ships in 2-4 days

0

15

Echo 61045054030

PLATE, GUIDE

$5.99

$

Usually ships in 2-4 days

0

16

Echo 61046254030

PLATE, SIDE

$10.99

$

Usually ships in 2-4 days

0

17

Echo 61080554030

ROD, CONNECTING

$75.99

$

Usually ships in 2-4 days

0

18

Echo 61034412360

CAM

$86.99

$

Usually ships in 2-4 days

0

19

Echo 61032502730

KEY

$1.49

$

Usually ships in 2-4 days

0

20

Echo 61042654030

SEAL, FELT

$2.49

$

Usually ships in 2-4 days

0

21

Echo 69911012360

SUPPORT, BLADE

$17.99

$

Usually ships in 2-4 days

0

22

Echo 43302206460

LOCKNUT - 6

$1.49

$

In Stock, Qty 20+

0

23

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, only 4 left!

0

24

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

25

Echo X495000060

COVER, BLADE
(Superseded to X495000061)

$16.99

$

In Stock, only 2 left!

0

26

Echo X425000070

SUPPORT, BLADE
(Superseded to 69911712360)

$43.99

$

Usually ships in 2-4 days

0

27

Echo 61044054030

PLATE, ANGLE

$5.99

$

Usually ships in 2-4 days

0

28

Echo 90021205020

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

29

Echo X411000130

BLADE - "TB" -- UPPER
(Superseded to X411000500)

$58.99

$

Usually ships in 2-4 days

0

30

Echo X411000120

BLADE - "BB" -- LOWER
(Superseded to X411000490)

$58.99

$

In Stock, only 1 left!

0

31

Echo 69911507760

BOLT - 6X22

$3.49

$

In Stock, Qty 10

0

32

Echo 69911804560

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

33

Echo 69911504560

BOLT

$2.99

$

In Stock, Qty 8

0

34

Echo 35130512360

HANDLE

$26.99

$

In Stock, Qty 11

0

35

Echo 35131512360

GRIP, HANDLE

Note: Not Required When Replacing ITEM 34

$12.99

$

Usually ships in 2-4 days

0

36

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, Qty 13

0

37

Echo 61042612360

SEAL, FELT
(Superseded to V150000311)

$1.99

$

Usually ships in 2-4 days

0

38

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, only 4 left!

0

39

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0
