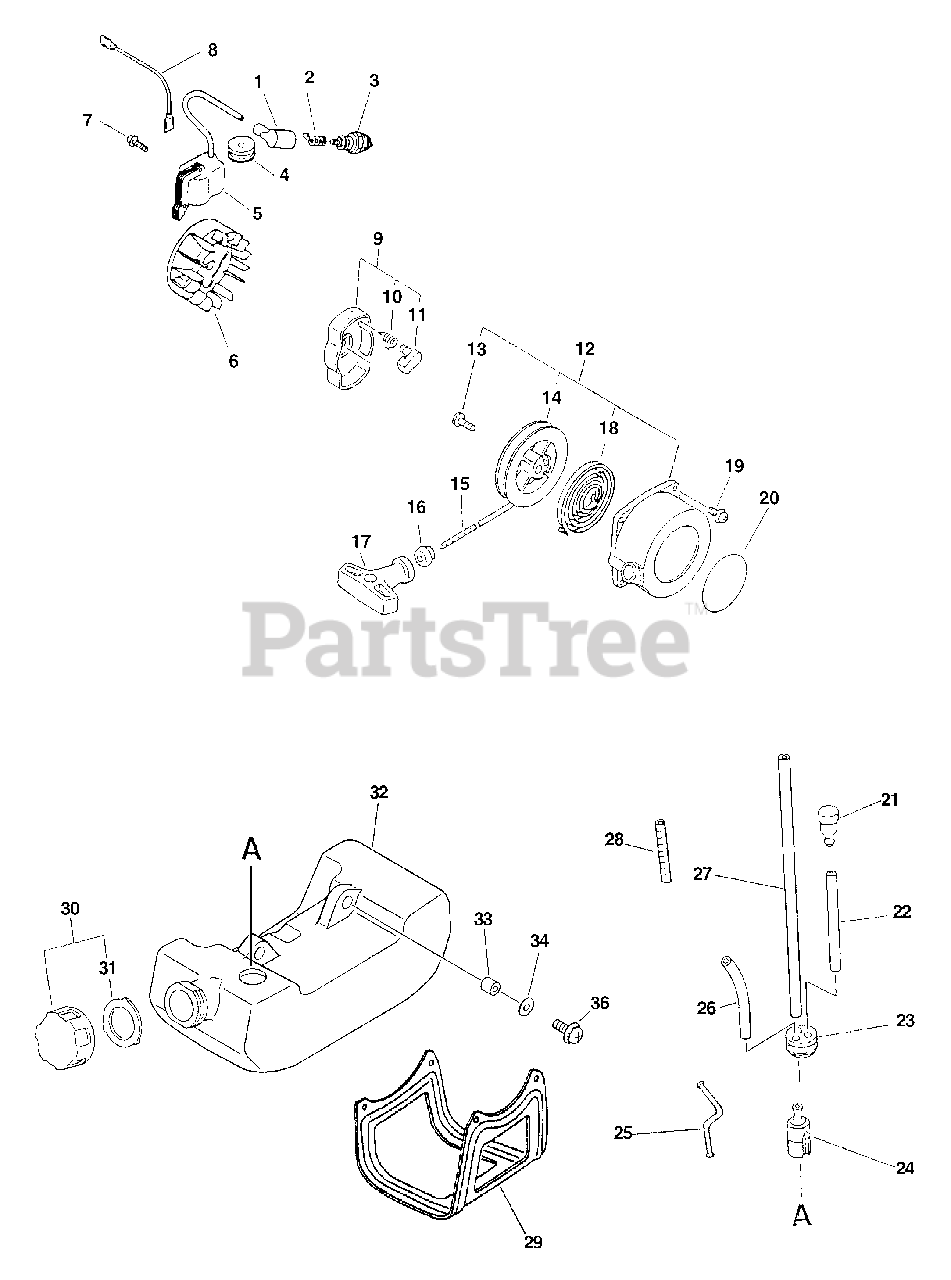

  • Title

1

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 10

0

2

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

3

Echo 99944500071

SPARK PLUG - BPM-7Y

$

$

Not available

3

Echo 15901010230

SPARK PLUG - BPMR7A

Note: CANADA MODELS

$3.99

$

In Stock, Qty 20+

0

4

Echo 15611240630

GROMMET

$1.99

$

In Stock, Qty 20+

0

5

Echo 156601-52130

COIL, IGNITION
(Superseded to 15660152131)

$143.99

$

In Stock, only 1 left!

0

6

Echo 156801-44731

FLYWHEEL

Note: SN/: 001001 - 506198

$126.99

$

Usually ships in 2-4 days

0

6

Echo 15680112360

FLYWHEEL
(Superseded to 15680144731)

Note: S/N: 506199 - 999999

$126.99

$

Usually ships in 2-4 days

0

7

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

8

Echo 16202152830

LEAD
(Superseded to V485001080)

$4.49

$

In Stock, only 2 left!

0

9

Echo 177202-44330

PAWL ASSY, STARTER

Note: Includes ITEMS 10-11

$11.99

$

In Stock, Qty 9

0

10

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 13

0

11

Echo 177218-44330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

12

Echo 17720042032

STARTER ASSY
(Superseded to 17720042033)

Note: Includes ITEMS 13-18

$58.99

$

In Stock, Qty 10

0

13

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

14

Echo 17721542030

REEL, ROPE
(Superseded to 17721544430)

$10.99

$

In Stock, Qty 6

0

------------------

ROPE, STARTER 3.0×1000

Note: RePower BULK OPTION: 99944440000

$

$

Not available

16

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

17

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

18

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 10

0

19

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0

20

Echo 890118-49130

LABEL, ECHO

$0.99

$

In Stock, Qty 20+

0

21

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

22

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

23

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

24

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

25

Echo 13201103360

CONNECTOR, PIPE

$3.49

$

In Stock, only 3 left!

0

26

Echo 13201056330

PIPE, FUEL RETURN 3×6×90 MM CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 9

0

27

Echo V471001190

PIPE, FUEL 3x-5x-180
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

28

Echo 13201212361

PIPE, FUEL 3×7×100 FLEXIBLE
(Superseded to 13201212362)

$4.49

$

In Stock, Qty 10

0

29

Echo 305110-42030

GUARD, FUEL TANK

$

$

Not available

30

Echo 13100455830

CAP ASSY, FUEL
(Superseded to P200000830)

Note: Includes ITEM 31

$5.49

$

In Stock, only 2 left!

0

31

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

32

Echo 13100546831

TANK, FUEL

$18.99

$

In Stock, only 2 left!

0

33

Echo 13104528230

SPACER 6.2×7.8×6

$1.99

$

In Stock, Qty 20+

0

34

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

35

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

36

UNKNOWN

$

$

Not available
