HCA-261 - Echo Articulating Hedge Trimmer (SN: 02001001 - 02999999) Control Handle, Throttle Cable, Ignition Switch Parts Diagram

Articulating Hedge Trimmer

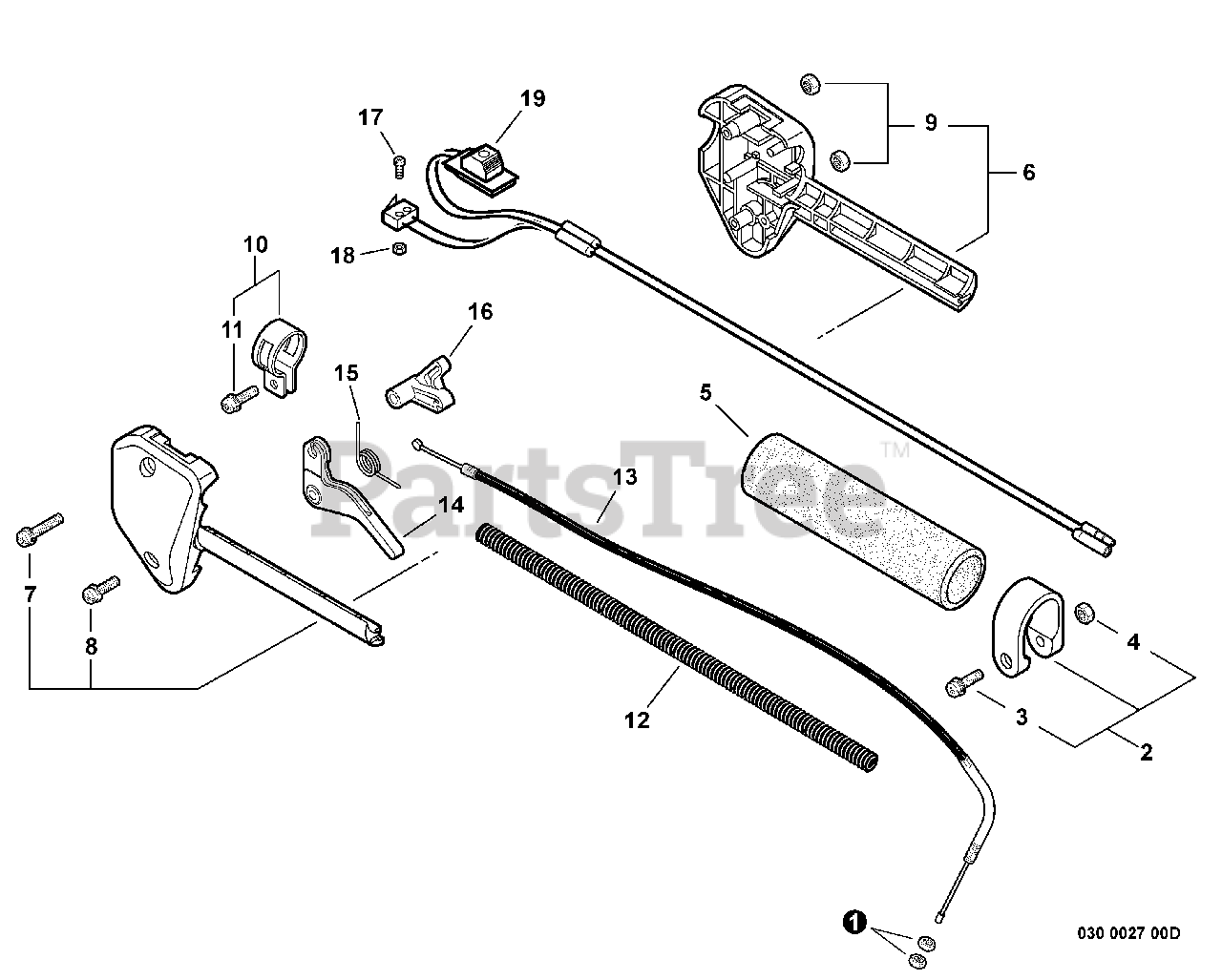

Control Handle, Throttle Cable, Ignition Switch Parts Diagram

  • Title

1

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

2

Echo 61027252130

CLAMP KIT

Note: Includes ITEMS 3-4

$11.99

$

In Stock, only 2 left!

0

3

Echo 90024205028

SCREW 5×28

$0.99

$

In Stock, Qty 6

0

4

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

5

Echo 35121352130

GRIP, HANDLE

$11.99

$

In Stock, Qty 16

0

6

Echo 17800312630

CONTROL HANDLE KIT

Note: Includes ITEMS 7-9

$

$

Currently unavailable

7

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

8

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

9

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

10

Echo 301200-29430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes ITEM 11

$11.99

$

In Stock, only 2 left!

0

11

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

12

Echo V475000850

TUBE, FLEXIBLE

$1.49

$

In Stock, only 3 left!

0

13

Echo V430000140

CABLE, THROTTLE

$19.99

$

In Stock, only 2 left!

0

14

Echo 17801052130

TRIGGER, THROTTLE

$4.49

$

In Stock, Qty 20+

0

15

Echo 178043-42230

SPRING, TORSION

$0.99

$

In Stock, Qty 20+

0

16

Echo 17801252730

LOCKOUT, THROTTLE

$5.99

$

In Stock, only 4 left!

0

17

Echo 90021002010

SCREW 2×10

$

$

Not available

18

Echo 90050000002

NUT 2

$0.99

$

Usually ships in 2-4 days

0

19

Echo A440000100

SWITCH, ON-OFF

$25.99

$

Usually ships in 2-4 days

0
