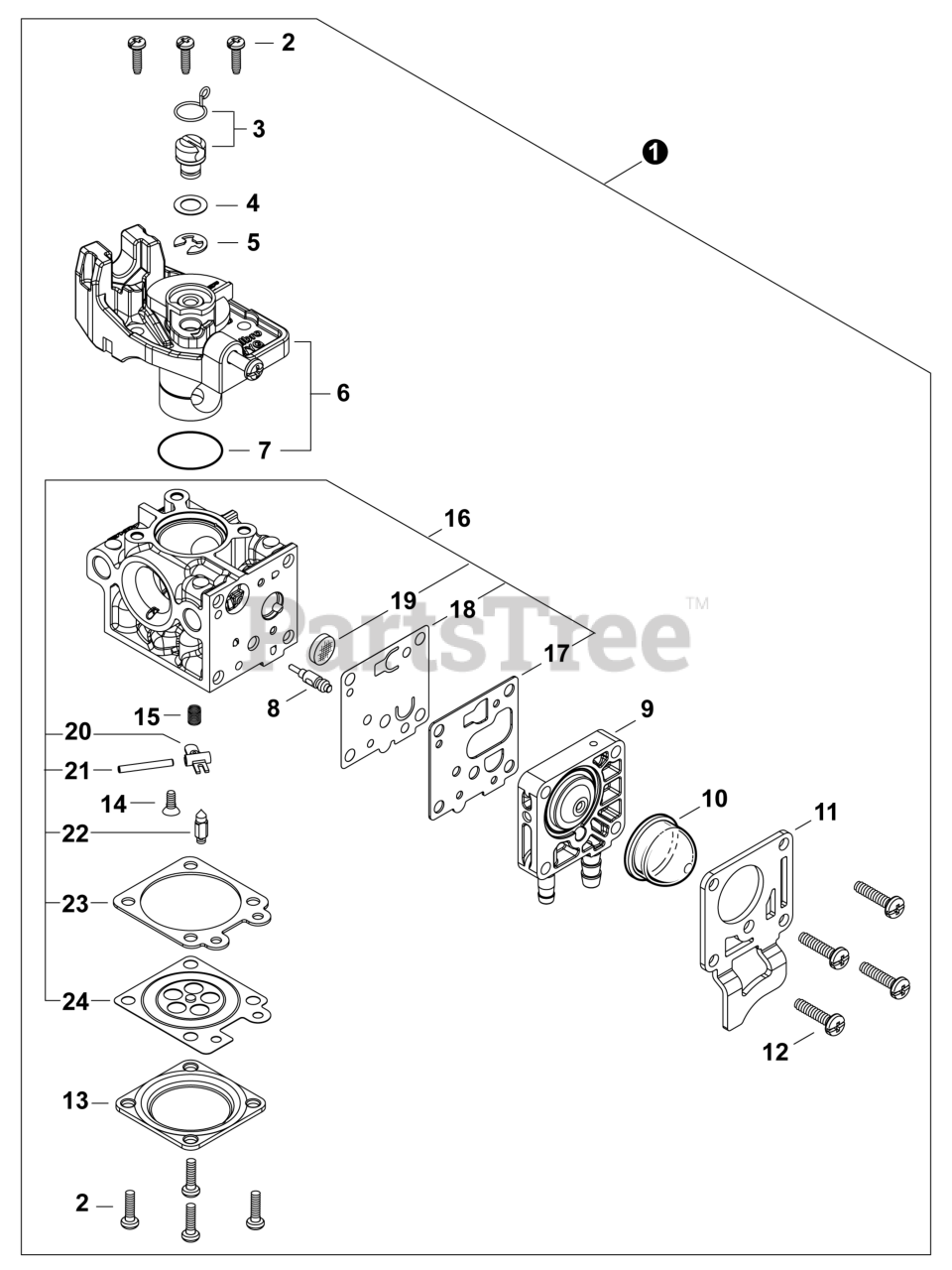

HCA-2620 S - Echo Articulating Hedge Trimmer (SN: U96715001001 - U96715999999) Carburetor Parts Diagram

Articulating Hedge Trimmer

Carburetor Parts Diagram

  • Title

1

Echo A021005600

CARBURETOR - WYG-23A

Note: Includes Items 2-24

$70.99

$

In Stock, Qty 20+

0

2

Echo P003004560

SCREW

Note: +

$7.49

$

Usually ships in 2-4 days

0

3

Echo P021054860

SWIVEL KIT

Note: +

$

$

Currently unavailable

4

Echo 12314954230

WASHER

Note: +

$0.99

$

Usually ships in 2-4 days

0

5

Echo 12317307930

E-RING

Note: +

$1.49

$

Usually ships in 2-4 days

0

6

Echo P003006620

THROTTLE VALVE ASSY

Note: Includes Item 7+

$27.99

$

Usually ships in 2-4 days

0

7

Echo P003004480

O-RING

Note: ++

$1.49

$

In Stock, Qty 5

0

8

Echo P003005880

NEEDLE, MIXTURE

Note: +

$8.99

$

In Stock, only 2 left!

0

9

Echo P003006120

BODY ASSY, PUMP

Note: +

$25.99

$

In Stock, Qty 9

0

10

Echo A263000020

BULB, PURGE

Note: +

$5.49

$

In Stock, Qty 20+

0

11

Echo P003006500

COVER, FUEL PUMP

Note: +

$6.99

$

In Stock, only 2 left!

0

12

Echo P003004570

SCREW

Note: +

$8.49

$

In Stock, only 2 left!

0

13

Echo 12314203930

COVER, METERING DIAPHRAGM

Note: +

$4.99

$

In Stock, only 2 left!

0

14

Echo P003005860

SCREW

Note: +

$10.99

$

Usually ships in 2-4 days

0

15

Echo P003005870

SPRING

Note: +

$8.49

$

Usually ships in 2-4 days

0

16

Echo P003005940

REPAIR KIT, CARBURETOR

Note: Includes Items 17-24+

$17.99

$

In Stock, Qty 20+

0

17

--

GASKET, FUEL PUMP

Note: ++

$

$

Not available

18

--

DIAPHRAGM, FUEL PUMP

Note: ++

$

$

Not available

19

--

SCREEN, FUEL INLET

Note: ++

$

$

Not available

20

--

LEVER, METERING

Note: ++

$

$

Not available

21

--

PIN, METERING LEVER

Note: ++

$

$

Not available

22

--

VALVE, INLET NEEDLE

Note: ++

$

$

Not available

23

--

GASKET, METERING DIAPHRAGM

Note: ++

$

$

Not available

24

--

DIAPHRAGM, METERING

Note: ++

$

$

Not available
