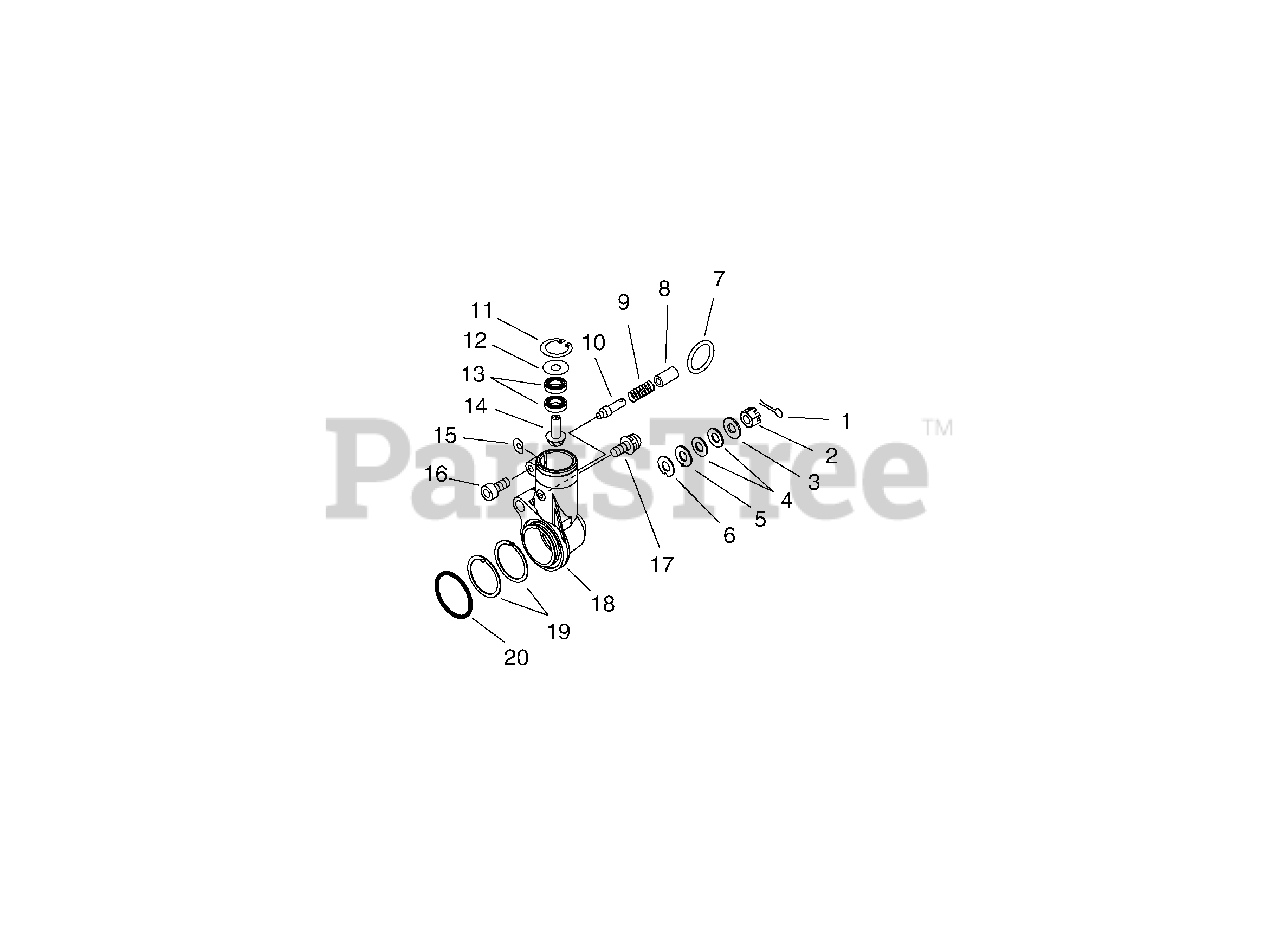

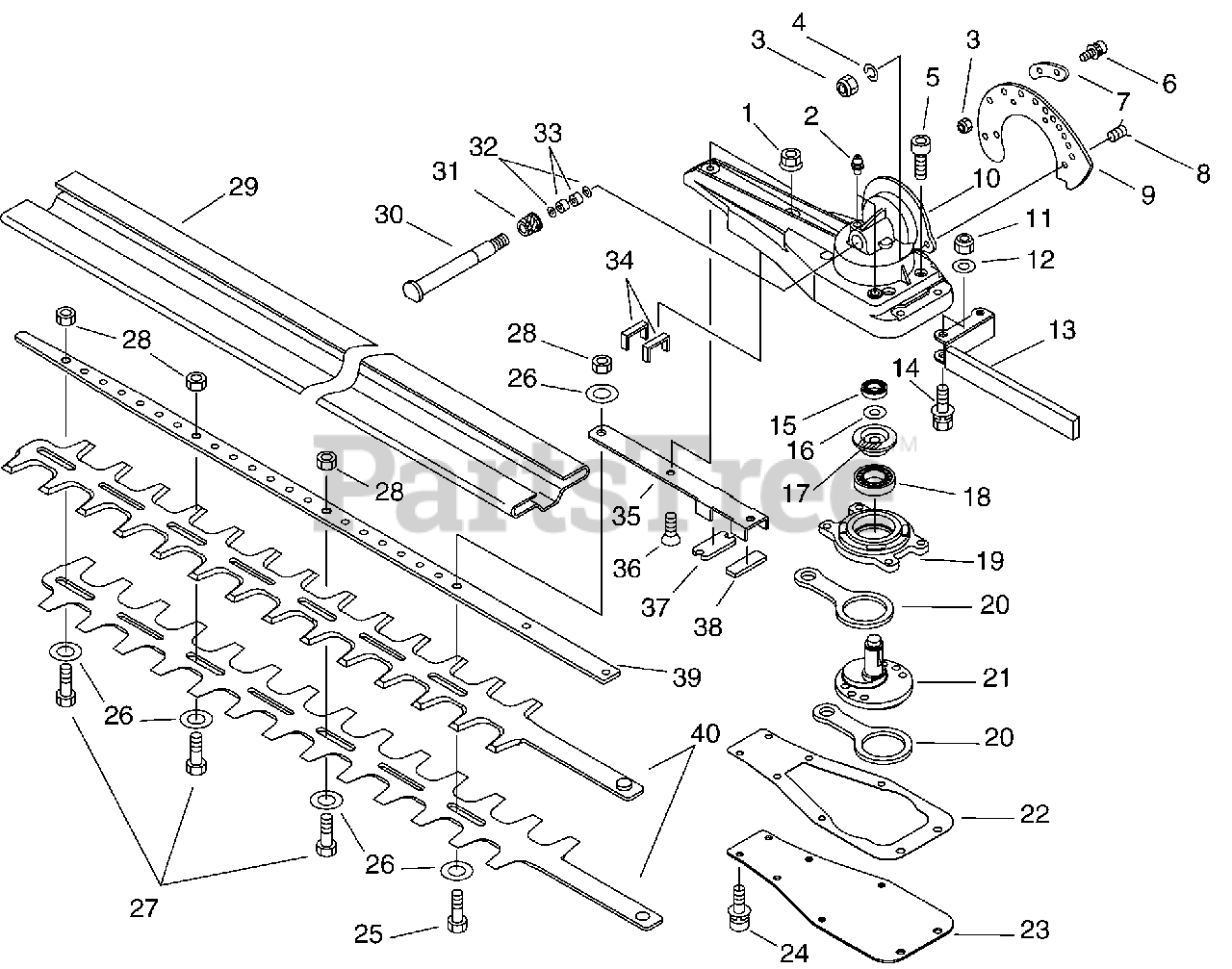

HCAA-2402 (99922204357) - Echo Hedge Trimmer Attachment (SN: S56235001001 - S56235999999) Gear Case, Cutter Parts Diagram

Hedge Trimmer Attachment

Gear Case, Cutter Parts Diagram

  • Title

Echo P021010520

GEAR CASE ASSY
(Superseded to P021010521)

Note: Includes items 1-20

$689.99

$

Usually ships in 2-4 days

0

1

Echo 9300016180

PIN, COTTER 6×18

$0.99

$

In Stock, Qty 20+

0

2

Echo 90052900008

NUT 8

$10.99

$

Usually ships in 2-4 days

0

3

Echo V306000140

WASHER 8

$2.99

$

Usually ships in 2-4 days

0

4

Echo V347000010

WASHER, CONICAL

$4.99

$

In Stock, Qty 9

0

5

Echo V340000110

WASHER

$5.49

$

In Stock, only 4 left!

0

6

Echo V110000040

GASKET, GEAR CASE

$5.99

$

Usually ships in 2-4 days

0

7

Echo V583000050

RING, RETAINING

$2.99

$

Usually ships in 2-4 days

0

8

Echo V355000310

COLLAR 8

$7.99

$

Usually ships in 2-4 days

0

9

Echo V450000420

SPRING, COMPRESSION

$2.99

$

Usually ships in 2-4 days

0

10

Echo V642000020

LINCHPIN

$34.99

$

Usually ships in 2-4 days

0

11

Echo 90070200022

RING, SNAP Ø22

$2.49

$

In Stock, Qty 14

0

12

Echo V583000060

RING, SNAP

$6.99

$

In Stock, only 1 left!

0

13

Echo 90085906900

BEARING, BALL 6900

$24.99

$

In Stock, Qty 18

0

14

Echo V651000240

GEAR, BEVEL

$53.99

$

In Stock, only 3 left!

0

15

Echo V340000170

SHIM

$0.99

$

Usually ships in 2-4 days

0

16

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

17

Echo 90024205012

SCREW 5×12

$0.99

$

In Stock, Qty 20+

0

18

Echo C531000292

CASE, GEAR
(Superseded to C531000293)

$61.99

$

In Stock, only 3 left!

0

19

Echo V340000120

WASHER

$10.99

$

In Stock, only 2 left!

0

20

Echo 90072400032

O-RING 32

$17.99

$

In Stock, only 4 left!

0
