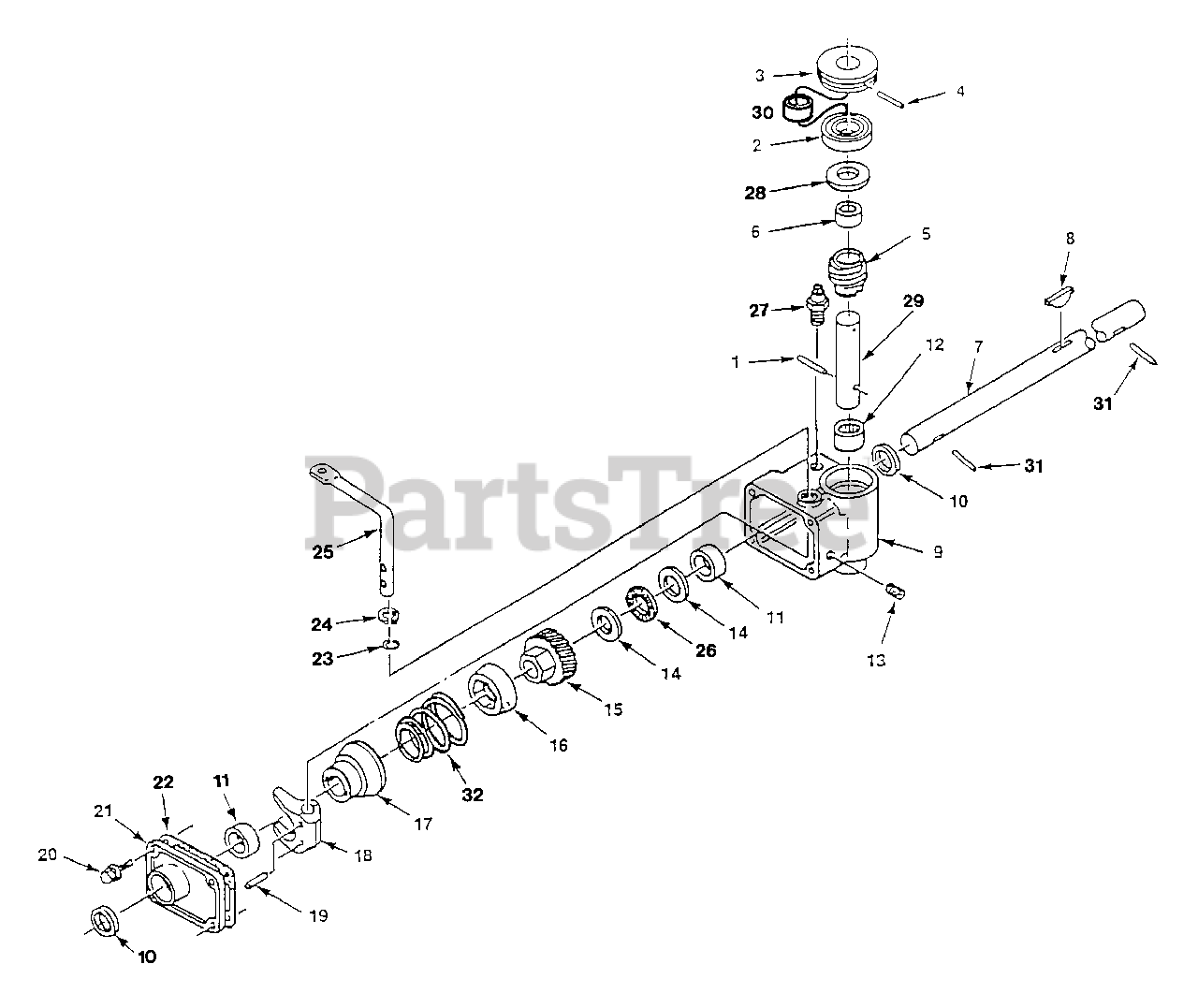

HCM 20-5 (UT-30524-A) - Homelite 20" Mulcher Walk-Behind Mower Gear Reducer Parts Diagram

20" Mulcher Walk-Behind Mower

Gear Reducer Parts Diagram

  • Title

Homelite GP166611

TRANSMISSION

Note: Includes items 1-32

$

$

Currently unavailable

1

Homelite JA461415

Pin - Roll 3/16 x 7/8

$

$

Not available

2

Homelite JA990499

Bearing - bail

$

$

Not available

3

Homelite JA994966

Pulley - drive

$

$

Currently unavailable

4

Homelite JA461414

Pin - Roll 3/32 x 1-1/4

$

$

Currently unavailable

5

Homelite JA990642

Worm w/spacer

$

$

Currently unavailable

6

Homelite JA990478

Spacer - worm

$

$

Currently unavailable

7

Homelite JA994761

Shaft - drive

$

$

Not available

8

Homelite JA463101

Key - Woodruff

$

$

Not available

9

Homelite JA990529

Housing - gear

$

$

Currently unavailable

10

Homelite JA376110

Seal

$18.99

$

Usually ships in 3-7 days

0

11

Homelite JA992820

Bushing - sleeve

$

$

Not available

12

Homelite 58956

Bearing - needle

$

$

Not available

13

Homelite JA472007

Plug - pipe

$

$

Not available

14

Homelite JA990446

Race - thrust

$

$

Not available

15

Homelite JA992770

Gear - helical

$

$

Not available

Homelite A03385

Clutch Drum & Cone

$

$

Currently unavailable

16

Homelite GP300021

Cone - friction

$

$

Currently unavailable

17

Homelite JA990217

Drum - clutch

$

$

Not available

18

Homelite JA990153

Fork - shift

$

$

Not available

19

Homelite JA461330

Pin - groove

$

$

Not available

20

Homelite GP382891

Screw - hex 1/4-20 x 7/8 sems

$8.49

$

Usually ships in 3-7 days

0

21

Homelite JA990168

Cover - gear box

$

$

Currently unavailable

Homelite JA376110

Seal

$18.99

$

Usually ships in 3-7 days

0

Homelite JA992820

Bushing - sleeve

$

$

Not available

22

Homelite JA375948

Gasket - cover
(Superseded to GP582047)

$5.99

$

Usually ships in 3-7 days

0

23

Homelite JA459037

"O" Ring

$

$

Not available

24

Homelite JA458094

Ring - retainer

$

$

Not available

25

Homelite GP095469

Lever - shift

$

$

Currently unavailable

26

Homelite JA990447

Bearing - needle

$

$

Currently unavailable

27

Homelite JA990415

Vent

$

$

Not available

28

Homelite JA990463

Washer - flat

$

$

Not available

29

Homelite JA990526

Shaft - worm

$

$

Not available

30

Homelite JA359231

Spacer - pulley

$

$

Currently unavailable

31

Homelite JA461361

Pin - roll 1/8 x 7/8

$

$

Not available

32

Homelite GP095171

Spring - clutch

$

$

Currently unavailable
