HCM 20 P5 (UT-30525-A) - Homelite 20" Mulcher Walk-Behind Mower Handles & Controls Parts Diagram

20" Mulcher Walk-Behind Mower

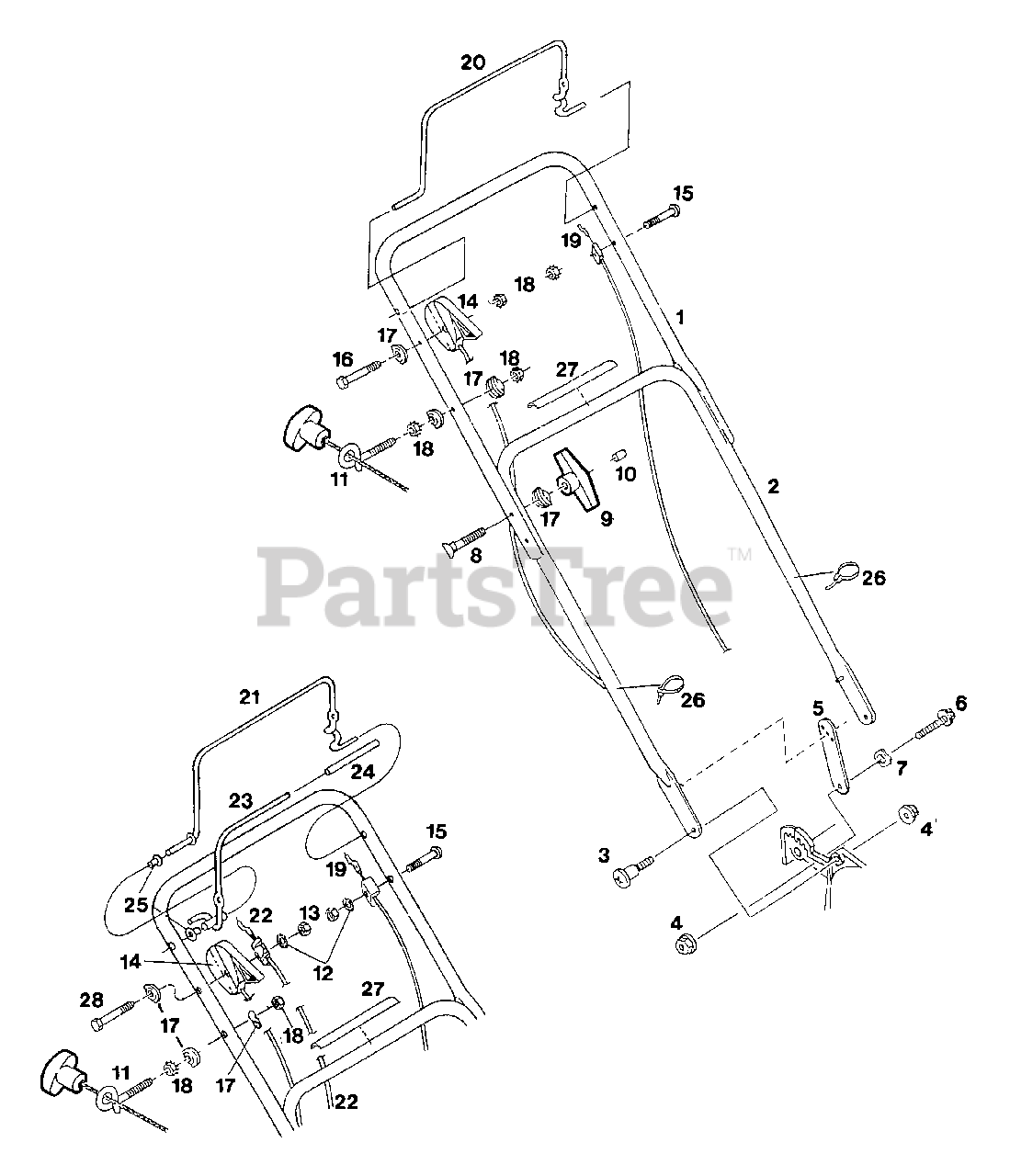

Handles & Controls Parts Diagram

  • Title

1

Homelite JA993637

Handle - upper

$

$

Not available

2

Homelite JA994100

Handle - lower

$

$

Currently unavailable

3

Homelite JA993700

Bolt - handle 5/16-18

$

$

Currently unavailable

4

Homelite JA445775

Nut - hex 5/16-18 flng lock
(Superseded to UP06674)

$

$

Not available

5

Homelite GP095176

Plate - handle adjust

$

$

Currently unavailable

6

Homelite JA993710

Bolt - handle support 5/16-18

$

$

Not available

7

Homelite JA454025

Washer - wave 5/16

$

$

Not available

8

Homelite GP151936

Bolt - crvd Ld 5/16-18 x 2-1/4

$

$

Currently unavailable

9

Homelite GP115540

Knob - handle, plastic

$

$

Currently unavailable

10

Cap - bolt end

Note: Not Used On This Model.

$

$

Not available

11

Homelite GP152371

Eyebolt-starter rope 1/4-20

$

$

Currently unavailable

12

Homelite JA993731

Washer - ext tooth 1/4

$

$

Currently unavailable

13

Homelite GP310052

Nut - hex 1/4-20

$

$

Currently unavailable

14

Homelite GP053104

Control - throttle w/cable

$

$

Currently unavailable

15

Screw - truss hd 1/4-20 x 1-1/2

Note: Not Used On This Model.

$

$

Not available

16

Homelite JA993197

Screw - truss hd 1/4-20 x 1-3/4
(Superseded to UP06523)

$2.99

$

Usually ships in 3-7 days

0

17

Homelite GP150201

Washer - curved

$2.49

$

Usually ships in 3-7 days

0

18

Homelite GP715037

Nut - hex 1/4-20 Keps

$

$

Currently unavailable

19

Homelite GP053083

Cable - engine/blade control

$

$

Currently unavailable

20

Bail - engine/blade control

Note: Not Used On This Model.

$

$

Not available

21

Homelite GP094375

Bail - engine/blade control

$

$

Currently unavailable

22

Homelite GP053084

Cable - traction drive
(Superseded to JA990533)

$

$

Not available

23

Homelite JA993860

Bail - traction drive

$18.99

$

Usually ships in 3-7 days

0

24

Homelite JA993682

Sleeve - drive bail

$

$

Not available

25

Homelite JA993670

Bushing - drive bail

$

$

Not available

26

Homelite JA991636

Cable Tie

$

$

Not available

27

Homelite 04614

Decal - starting instructions

$

$

Currently unavailable

28

Homelite GP615799

Bolt - hex 1/4-20 x 2 1/2

$

$

Currently unavailable
