HCP 630 (UT-01610) - Homelite Centrifugal Pump Pump Parts Diagram

Centrifugal Pump

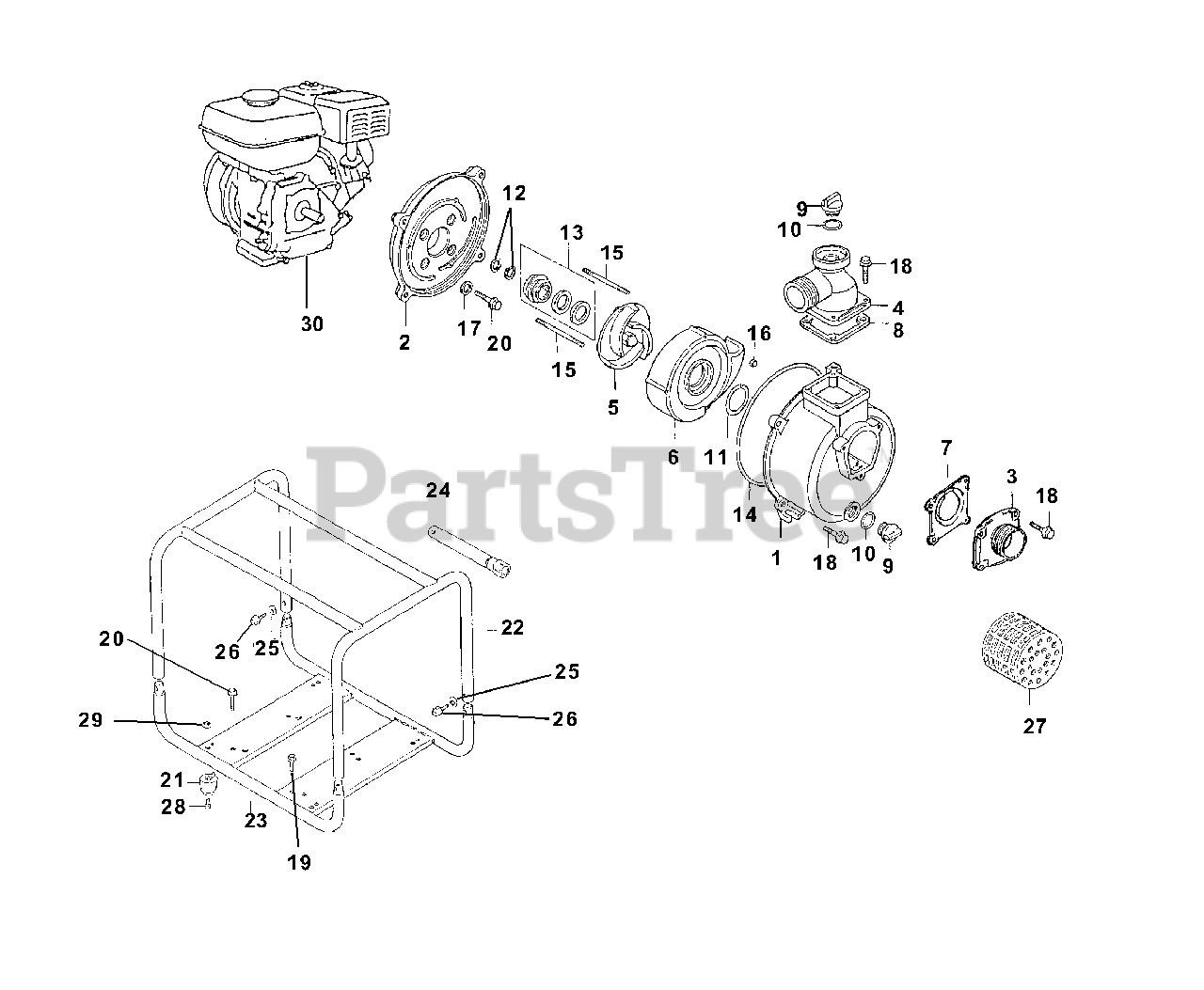

Pump Parts Diagram

  • Title

1

Homelite 0797450

Casing

$

$

Not available

2

Homelite 0797451

Cover, Casing

$

$

Not available

3

Homelite 0797452

Inlet Pipe 3" NPT

$

$

Not available

4

Homelite 0797453

Outlet Pipe 3" NPT

$

$

Not available

5

Homelite 0797454

Impeller

$

$

Not available

6

Homelite 0797455

Case, Volute

$

$

Not available

7

Homelite 0797456

Check Valve, Inlet

$

$

Not available

8

Homelite 0797457

Packing, Outlet

$

$

Not available

9

Homelite 0797409

Cap, Filler

$

$

Not available

10

Homelite 0797410

Ring, Seal

$

$

Not available

11

Homelite 0797458

O-Ring 71 x 5.7

$

$

Not available

12

Homelite 0797412

Shim, Adjuster

$

$

Not available

13

Homelite 0797413

Seal, Mechanical

$

$

Not available

14

Homelite 0797459

Seal Ring, Casing

$

$

Not available

15

Homelite 0797415

Stud, Threaded 6 x 50

$

$

Not available

16

Homelite 0797416

Nut, 6mm

$

$

Not available

17

Homelite 0797417

Washer, 8mm

$

$

Not available

18

Homelite 0797460

Bolt, Flanged 10 x 28

$

$

Not available

19

Homelite 0797419

Bolt, Flanged 8 x 25

$

$

Not available

20

Homelite 0797420

Bolt, Flanged 8 x 28

$

$

Not available

21

Homelite 0797461

Foot, Rubber

$

$

Not available

22

Homelite 0797463

Upper Frame

$

$

Not available

23

Homelite 0797464

Lower Frame

$

$

Not available

24

Homelite 0797428

Wrench, Spark Plug

$

$

Not available

25

Homelite 0797471

Washer, Frame Joint

$

$

Currently unavailable

26

Homelite 0797472

Bolt, Flanged 8 x 18

$

$

Currently unavailable

27

Homelite 0797468

Strainer

$

$

Currently unavailable

28

Homelite 0797469

Screw, Pan Hd. 6 x 10

$

$

Not available

29

Homelite 0797470

Nut, Hex 6mm

$

$

Not available

30

Engine, 5.5HP

Note: Revision

$

$

Not available
