HCP 80 (UT-06042) - Homelite Plate Compactor Eccentric Parts Diagram

Plate Compactor

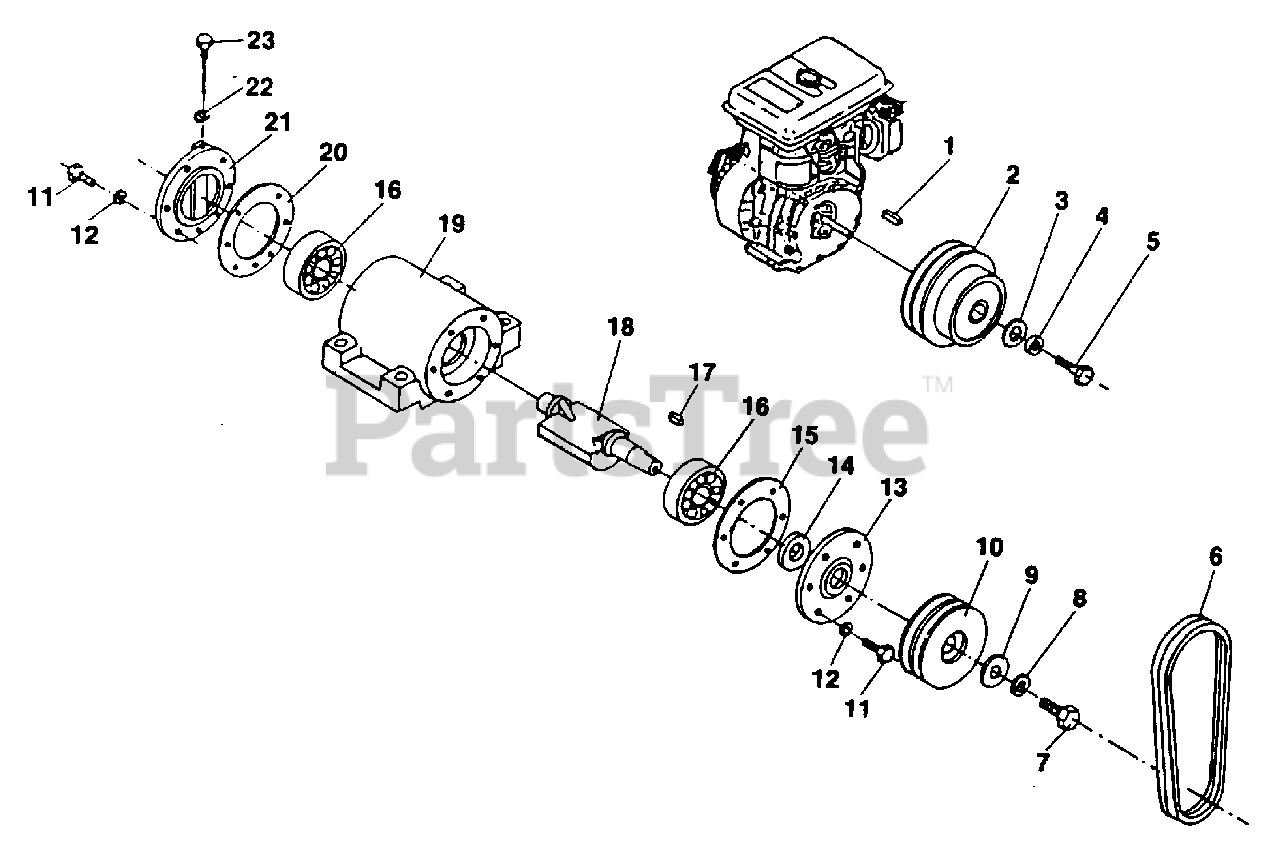

Eccentric Parts Diagram

  • Title

1

Homelite 4990436

KEY- Parallel

$

$

Currently unavailable

2

Homelite 4990435

CLUTCH- Centrifugal

$

$

Currently unavailable

3

Homelite 4990437

WASHER- Plate 5/16"

$

$

Currently unavailable

4

Homelite 4990438

WASHER- Spring 5/16"

$

$

Currently unavailable

5

Homelite 4990439

BOLT- Hex 5/16 x 11/2"

$

$

Currently unavailable

6

Homelite 4990456

BELT- V

$

$

Currently unavailable

7

Homelite 4990453

BOLT- Hex (m14 x 30")

$

$

Currently unavailable

8

Homelite 4990452

WASHER- Spring (m14)

$

$

Currently unavailable

9

Homelite 4990451

WASHER- Plate

$

$

Currently unavailable

10

Homelite 4990450

PULLEY- V

$

$

Not available

11

Homelite 4990446

BOLT- Hex (m8 x 20)

$

$

Currently unavailable

12

Homelite 4990417

WASHER- Spring (m8)

$

$

Currently unavailable

13

Homelite 4990445

HOLDER- Bearing

$

$

Currently unavailable

14

Homelite 4990444

SEAL- Oil
(Superseded to 4990526)

$

$

Not available

15

Homelite 4990443

GASKET

$

$

Not available

16

Homelite 4990447

BEARING

$

$

Not available

17

Homelite 4990449

KEY- Parallel (10 x 8 x 25)

$

$

Currently unavailable

18

Homelite 4990448

VIBRATOR UNIT

$

$

Currently unavailable

19

Homelite 4990441

CASE- Vibrator Unit

$

$

Currently unavailable

20

Homelite 4990454

GASKET

$

$

Not available

21

Homelite 4990442

HOLDER- Bearing

$

$

Currently unavailable

22

Homelite 4990403

WASHER- Spring (m16)

$

$

Currently unavailable

23

Homelite 4990455

GAUGE- Oil level

$

$

Currently unavailable
