HCP 80 (UT-06042) - Homelite Plate Compactor Vibration Plate Parts Diagram

Plate Compactor

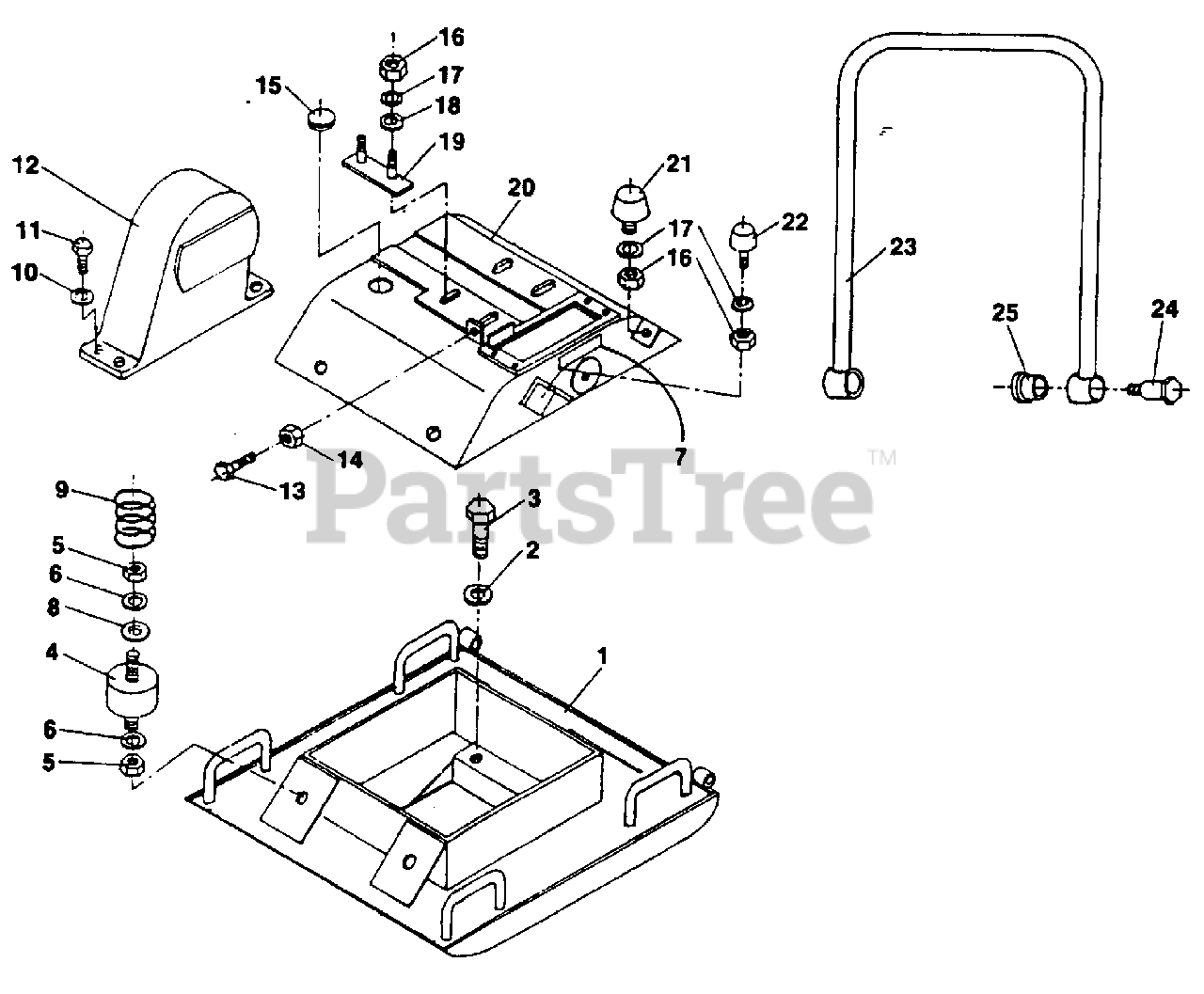

Vibration Plate Parts Diagram

  • Title

1

Homelite 4990402

PLATE- Vibration

$

$

Currently unavailable

2

Homelite 4990403

WASHER- Spring (m16)

$

$

Currently unavailable

3

Homelite 4990404

BOLT- Hex (m16 x 65)

$

$

Currently unavailable

4

Homelite 4990412

ABSORBER- Shock

$

$

Currently unavailable

5

Homelite 4990408

NUT- Hex (m12)

$

$

Currently unavailable

6

Homelite 4990407

WASHER- Plate (m12)

$

$

Currently unavailable

7

Homelite 4990459

DECAL- Caution

$4.49

$

Usually ships in 3-7 days

0

8

Homelite 4990406

WASHER- Plate (m12)

$

$

Currently unavailable

9

Homelite 4990409

SPRING- Earth

$

$

Currently unavailable

10

Homelite 4990411

WASHER-Spring (m10)

$

$

Currently unavailable

11

Homelite 4990433

BOLT-Hex (m10 x 25)

$

$

Currently unavailable

12

Homelite 4990432

COVER- Belt

$

$

Currently unavailable

13

Homelite 4990421

BOLT- Hex (m10 x 45)

$

$

Currently unavailable

14

Homelite 4990422

NUT- Hex (m10)

$

$

Currently unavailable

15

Homelite 4990419

CAP

$

$

Currently unavailable

16

Homelite 4990418

NUT- Hex (m8)

$

$

Currently unavailable

17

Homelite 4990417

WASHER- Spring (m8)

$

$

Currently unavailable

18

Homelite 4990416

WASHER- Plate (m8)

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 4990415

SEAT- Engine

$

$

Currently unavailable

20

Homelite 4990414

COVER- Vibration Plate

$

$

Currently unavailable

21

Homelite 4990423

ABSORBER- Shock (OT-9)

$

$

Currently unavailable

22

Homelite 4990420

ABSORBER- Shock

$

$

Currently unavailable

23

Homelite 4990428

HANDLE

$

$

Currently unavailable

24

Homelite 4990430

PIN- Bracket

$

$

Currently unavailable

25

Homelite 4990429

RUBBER- Handle

$

$

Currently unavailable
