HCR-1500 - Echo Rotating Hedge Trimmer (Type 1E) Handle, Throttle, Stop Switch Parts Diagram

Rotating Hedge Trimmer (Type 1E)

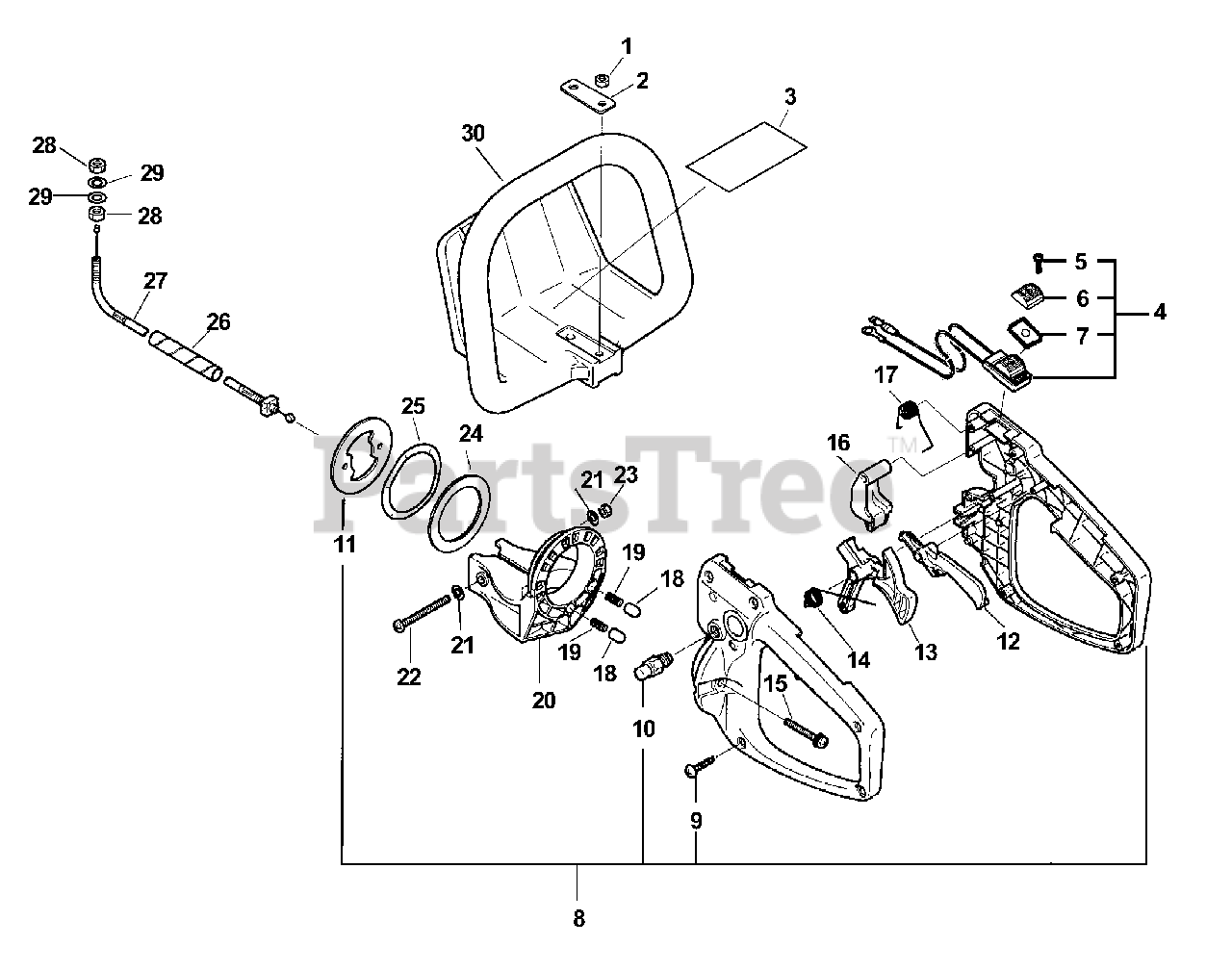

Handle, Throttle, Stop Switch Parts Diagram

  • Title

1

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 14

0

2

Echo 35161105360

PLATE, EYE

$8.99

$

In Stock, only 2 left!

0

3

Echo 89017740630

LABEL, CAUTION
(Superseded to 89022809560)

$0.99

$

In Stock, only 2 left!

0

3

Echo 89031705160

LABEL - CAUTION
(Superseded to Discontinued)

Note: CANADA MODELS

$

$

Not available

4

Echo 16340013360

SWITCH, ON-OFF

Note: INCLUDES ITEMS 5 - 7

$16.99

$

Usually ships in 2-4 days

0

5

Echo 90022003010

SCREW 3×10

$0.99

$

In Stock, Qty 11

0

6

Echo 16341049231

KNOB, SWITCH - ORANGE

$4.99

$

In Stock, Qty 20+

0

7

Echo 89015712330

LABEL, SWITCH

$3.99

$

In Stock, only 1 left!

0

8

Echo 35110113360

REAR HANDLE ASSY

Note: INCLUDES ITEMS 9 - 11

$70.99

$

Usually ships in 2-4 days

0

9

Echo 90025604016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0

10

Echo 17830213360

LOCK, THROTTLE
(Superseded to Discontinued)

$

$

Not available

11

Echo 35131313361

BRACKET, HANDLE

$29.99

$

Usually ships in 2-4 days

0

12

Echo 17801213360

LOCKOUT, THROTTLE

$

$

Not available

13

Echo 17801013361

TRIGGER, THROTTLE

$14.99

$

Usually ships in 2-4 days

0

14

Echo 17801313660

SPRING

$4.49

$

Usually ships in 2-4 days

0

15

Echo 90023805030

SCREW 5×30

$0.99

$

Usually ships in 2-4 days

0

16

Echo 35164813360

STOPPER

$14.99

$

In Stock, only 1 left!

0

17

Echo 17804313660

SPRING, TORSION

$7.49

$

Usually ships in 2-4 days

0

18

Echo 60561113360

PIN, CLEVIS

$6.99

$

Usually ships in 2-4 days

0

19

Echo 17804313360

SPRING

$5.99

$

Usually ships in 2-4 days

0

20

Echo 35131213361

BRACKET, HANDLE
(Superseded to Discontinued)

$

$

Not available

21

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

22

Echo 90022005047

SCREW 5×47

$0.99

$

In Stock, Qty 16

0

23

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 14

0

24

Echo 68902513361

WASHER

$3.49

$

Usually ships in 2-4 days

0

25

Echo 17812913361

WASHER
(Superseded to Discontinued)

$

$

Not available

26

Echo 17812713361

PIPE

$7.99

$

Usually ships in 2-4 days

0

27

Echo 17800113360

CABLE, THROTTLE

$22.99

$

Usually ships in 2-4 days

0

28

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

29

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

30

Echo 35161005360

HANDLE, SUPPORT

$47.99

$

In Stock, only 2 left!

0
