HCS 13 - Husqvarna Grass Catcher (2005-03) Mounting Kit HCS13 Parts Diagram

Grass Catcher

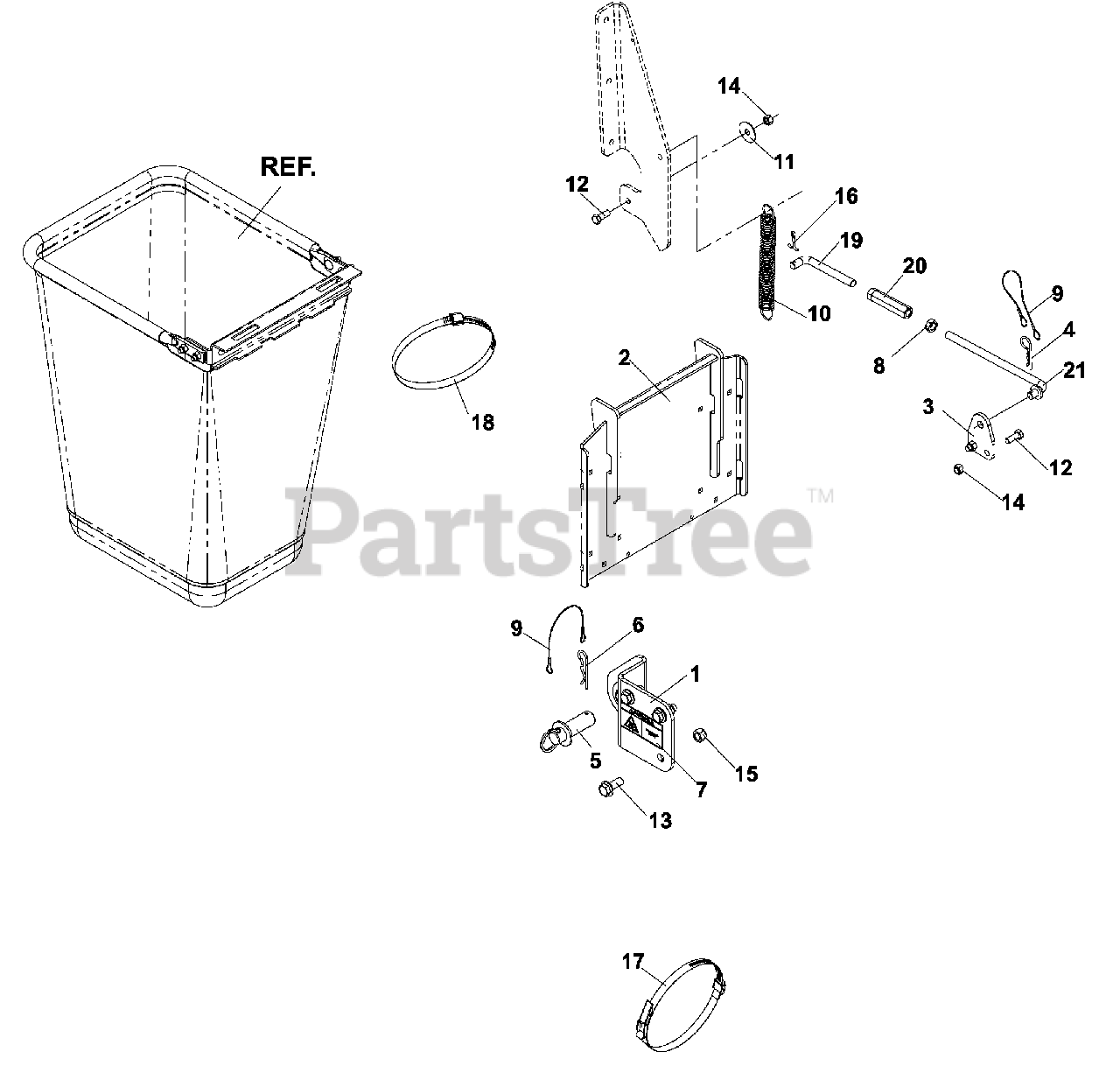

Mounting Kit HCS13 Parts Diagram

  • Title

1

Husqvarna 539111322

HITCH BRACKET, RIGHT, W/DECAL

$

$

Not available

Husqvarna 539111199

HITCH BRACKET, LEFT

Note: NOT SHOWN

$

$

Not available

2

Husqvarna 539111197

REAR GUARD

$

$

Not available

3

Husqvarna 539111215

SUPPORT BRACKET

$

$

Not available

4

Husqvarna 539976989

HAIRPIN #4

$

$

Not available

5

Husqvarna 539111206

HITCH PIN

$

$

Not available

6

Husqvarna 539111192

HAIRPIN

$9.49

$

Usually ships in 3-10 days

0

7

Husqvarna 539111212

DECAL, HOT SURFACE

$

$

Not available

8

Husqvarna 539108736

NUT, 1/2-20, HEX JAM

$

$

Not available

9

Husqvarna 539102563

LANYARD

$9.49

$

In Stock, only 1 left!

0

10

Husqvarna 539111191

SPRING

$

$

Not available

11

Husqvarna 539102998

FRICTION WASHER

$4.99

$

In Stock, only 3 left!

0

12

Husqvarna 539990563

HCS, 3/8-16 x 1, GR5
(Superseded to 596564401)

$4.99

$

In Stock, Qty 7

0

13

Husqvarna 539990622

HFS, 1/2-13 X 1 1/2

$

$

Not available

14

Husqvarna 539976979

NUT, 3/8C, NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna 539101331

NUT, 1/2C, NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 539990654

COTTER PIN, 5/32 X 1 1/4

$

$

Not available

17

Husqvarna 539109901

OVER CENTER BAND

$74.99

$

In Stock, only 1 left!

0

18

Husqvarna 539097076

HOSE CLAMP 6"-& 7"

$

$

Not available

19

Husqvarna 539111208

SUPPORT LINKAGE, LH

$

$

Not available

20

Husqvarna 539111207

TURNBUCKLE, 1/2"

$

$

Not available

21

Husqvarna 539111210

SUPPORT LINKAGE

$62.99

$

Usually ships in 3-10 days

0
