HCS-4020 - Echo Hedge Trimmer (SN: T86614001001 - T86614999999) Engine Parts Diagram

Hedge Trimmer

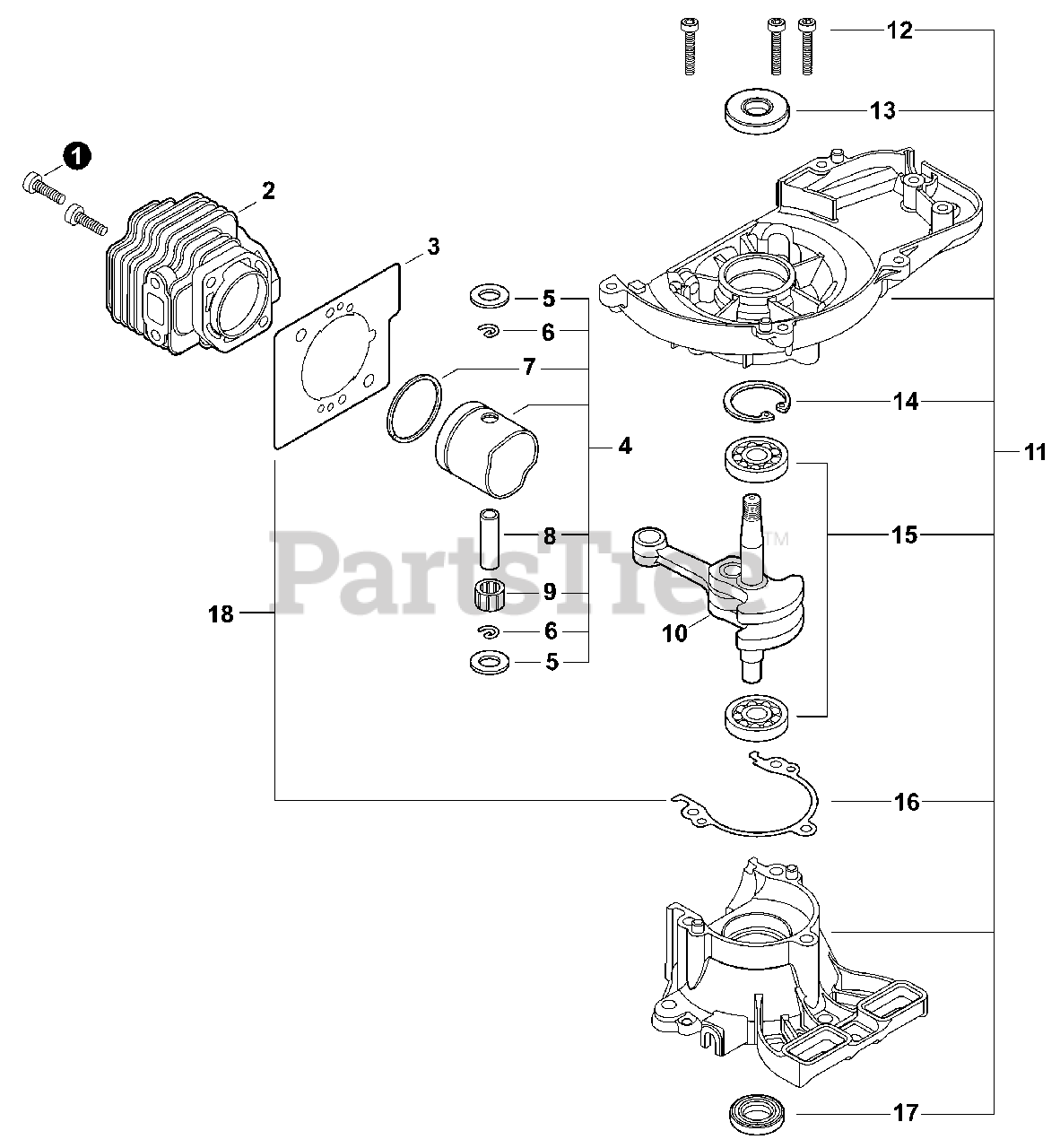

Engine Parts Diagram

  • Title

1

Echo V805000210

BOLT, TORX 5×20

$1.99

$

In Stock, Qty 20+

0

2

Echo A130001960

CYLINDER

$137.99

$

In Stock, only 1 left!

0

3

Echo V100000720

GASKET, CYLINDER

Note: Included in Gasket Kit

$4.49

$

In Stock, only 3 left!

0

4

Echo P021037930

PISTON KIT

Note: Includes ITEMS 5-9

$

$

Not available

5

Echo 10001408960

WASHER, THRUST

$3.99

$

Usually ships in 2-4 days

0

6

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

7

Echo A101000090

RING, PISTON

$

$

Not available

8

Echo V606000020

PIN, PISTON 8

$7.49

$

Usually ships in 2-4 days

0

9

Echo 10011305930

BEARING, NEEDLE

$13.99

$

Usually ships in 2-4 days

0

10

Echo A011001360

CRANKSHAFT ASSY

$229.99

$

Usually ships in 2-4 days

0

11

Echo P021046110

CRANKCASE ASSY

Note: Includes ITEMS 12-17

$181.99

$

In Stock, only 2 left!

0

12

Echo V805000220

BOLT, TORX 5×25

$1.99

$

In Stock, Qty 20+

0

13

Echo 10021361830

SEAL, OIL

$9.49

$

In Stock, only 4 left!

0

14

Echo 90070200026

RING, SNAP 26

$2.49

$

In Stock, Qty 6

0

15

Echo 90081036000

BEARING, BALL

$8.49

$

In Stock, only 2 left!

0

16

Echo V102000240

GASKET, CRANKCASE

Note: Included in Gasket Kit

$2.49

$

In Stock, only 2 left!

0

17

Echo 10021261830

SEAL, OIL

$9.49

$

Usually ships in 2-4 days

0

18

Echo P200000290

GASKET KIT

Note: See Maintenance Kits

$19.99

$

Usually ships in 2-4 days

0
