HCS-4020 - Echo Hedge Trimmer (SN: T89913001001 - T89913999999) Intake Parts Diagram

Hedge Trimmer

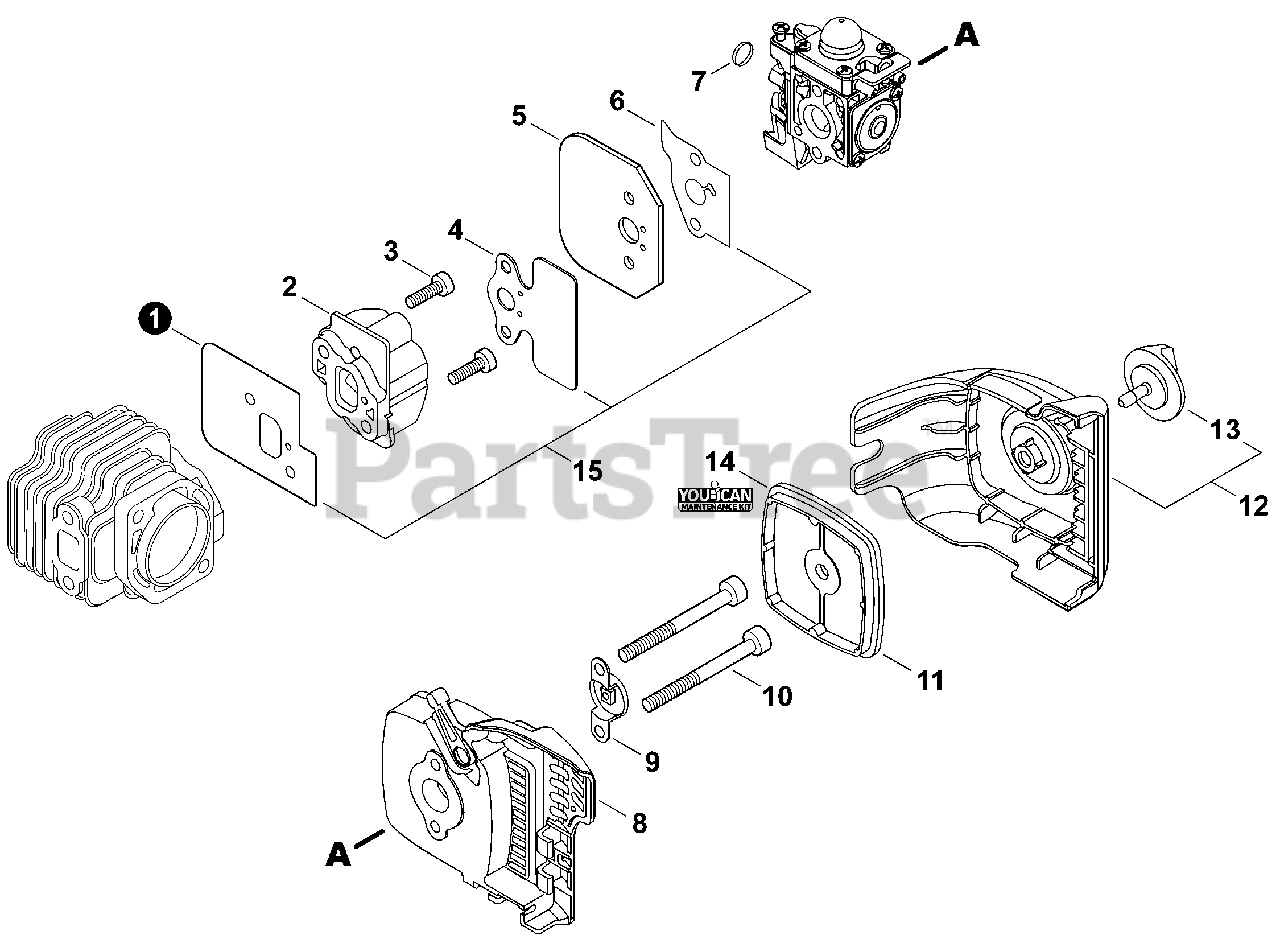

Intake Parts Diagram

  • Title

1

Echo V103001401

GASKET, INTAKE
(Superseded to V103002030)

Note: Included in Gasket Kit

$1.99

$

In Stock, Qty 20+

0

2

Echo A200000941

INSULATOR, INTAKE
(Superseded to A200001200)

$5.99

$

In Stock, Qty 5

0

3

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

4

Echo V103001730

GASKET, INTAKE

Note: Included in Gasket Kit

$2.49

$

In Stock, Qty 19

0

5

Echo A209000610

PLATE, INSULATOR

$4.49

$

In Stock, Qty 8

0

6

Echo V103001740

GASKET, INTAKE

Note: Included in Gasket Kit

$6.49

$

In Stock, Qty 10

0

7

Echo V490001100

CLIP

$1.49

$

In Stock, only 4 left!

0

8

Echo P021049870

CASE, AIR FILTER
(Superseded to P021049871)

$7.99

$

In Stock, only 2 left!

0

9

Echo A244000070

PLATE, PREVENT

$5.99

$

In Stock, Qty 20+

0

10

Echo V805000100

BOLT, TORX 5×65

$1.99

$

In Stock, Qty 20+

0

11

Echo A226001410

FILTER, AIR - DOUBLE LAYER

Note: Included in Plug and Filter Kit

$8.99

$

In Stock, Qty 20+

0

12

Echo P021049130

COVER SET, AIR FILTER

Note: Includes ITEM 13

$10.99

$

Usually ships in 2-4 days

0

13

Echo V299000610

THUMBSCREW

$6.99

$

Usually ships in 2-4 days

0

14

Echo 90152Y

TUNE-UP KIT - YOUCANT

Note: See Maintenance Kits

$21.99

$

In Stock, Qty 20+

0

15

Echo P200000290

GASKET KIT

Note: See Maintenance Kits

$19.99

$

Usually ships in 2-4 days

0
