HD 185H46 A - Poulan Lawn Tractor (1997) LIFT Parts Diagram

Lawn Tractor

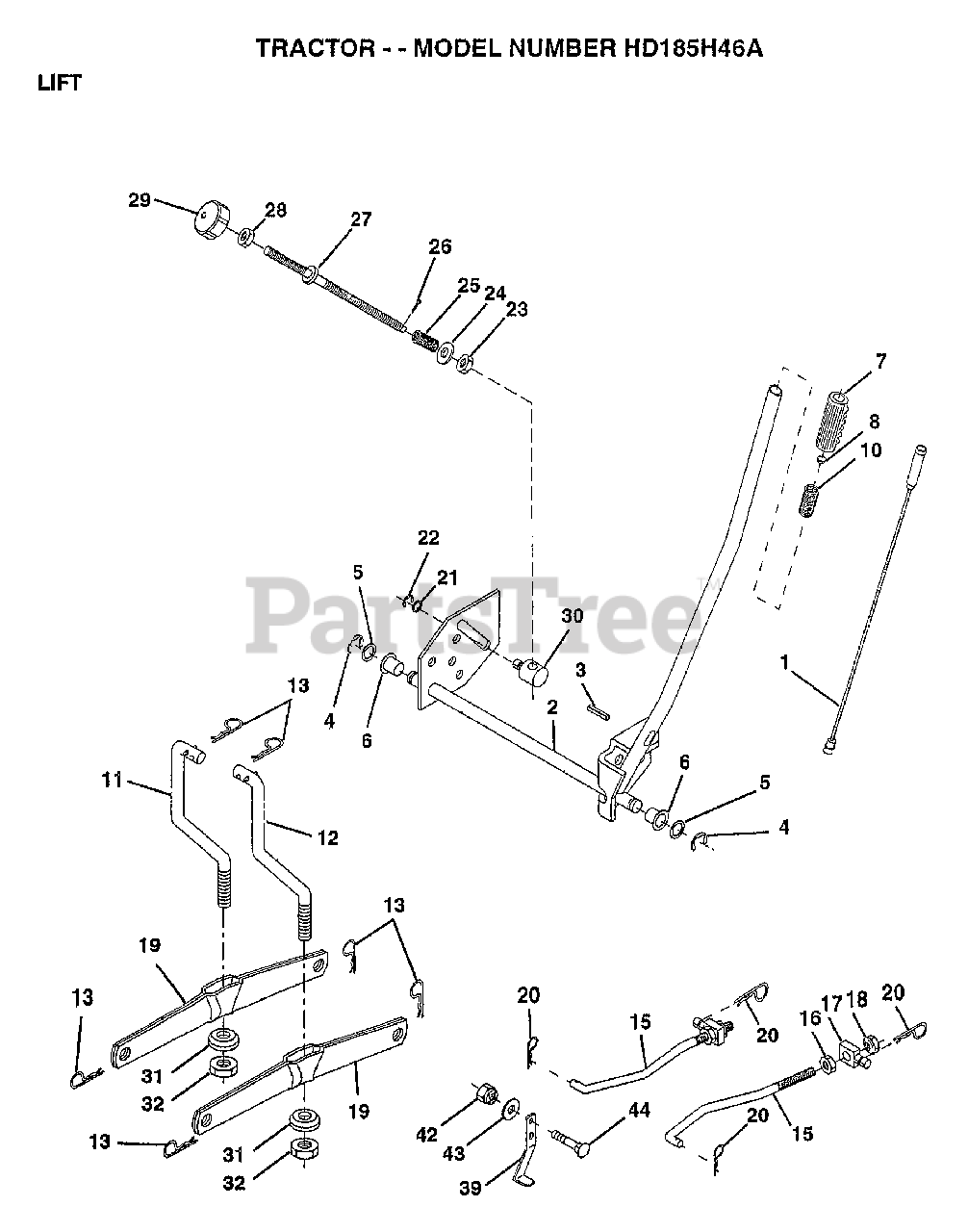

LIFT Parts Diagram

  • Title

1

Electrolux/AYP 121006X

LEVER ROD LT
(Superseded to 532121006)

$

$

Not available

2

Electrolux/AYP 140673

SHAFT LIFT W/IND

$

$

Not available

6

Electrolux/AYP 74780624

"BOLT,HEX"
(Superseded to 874780624)

$9.49

$

In Stock, Qty 8

0

7

Electrolux/AYP 109413X

GRIP
(Superseded to 532109413)

$7.99

$

In Stock, Qty 9

0

8

Electrolux/AYP 124526X

SUB= 125925X

$

$

Not available

9

Electrolux/AYP 122364X

SUB= 125925X
(Superseded to 532122364)

$

$

Not available

10

Electrolux/AYP 2876H

SPRING T
(Superseded to 532002876)

$3.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 145537

LINK.LIFT.LH.GTV
(Superseded to 532145537)

$28.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 145536

LINK.LIFT.RH.GTV.
(Superseded to 532145536)

$28.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP STD624008

RETAINER RING

$

$

Not available

14

Electrolux/AYP 121002X

SUB= 123096X

$

$

Not available

15

Electrolux/AYP 127218

LINK.FRONT
(Superseded to 532127218)

$20.99

$

In Stock, only 2 left!

0

16

Electrolux/AYP 73350800

NUT
(Superseded to 596433401)

$3.49

$

In Stock, Qty 8

0

17

Electrolux/AYP 130171

TRUNION
(Superseded to 532175689)

$

$

Not available

18

Electrolux/AYP STD541450

NUT, LOCK W/WSH 1/2-13

$

$

Not available

19

Electrolux/AYP 139868

ARM SUSP REAR
(Superseded to 532139868)

$

$

Not available

20

Electrolux/AYP STD624008

RETAINER RING

$

$

Not available

23

Electrolux/AYP 110807X

NUT T
(Superseded to 532110807)

$

$

Not available

24

Electrolux/AYP STD551037

WASHER

$

$

Not available

25

Electrolux/AYP 2876H

SPRING T
(Superseded to 532002876)

$3.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP STD560907

PIN, COTTER 3/32 X 1/2

$

$

Not available

27

Electrolux/AYP 126971X

SUB= 532126971
(Superseded to 532126971)

$

$

Not available

28

Electrolux/AYP STD541237

NUT

$

$

Not available

29

Electrolux/AYP 138057

KNOB INF 3/8-16
(Superseded to 532138057)

$

$

Not available

30

Electrolux/AYP 150233

TRUNNION
(Superseded to 532150233)

$

$

Not available

31

Electrolux/AYP 140302

BEARING PVT LH
(Superseded to 532169865)

$

$

Not available

32

Electrolux/AYP 73540600

NUT.CROWNLOCK.3/8
(Superseded to 873680600)

$

$

Not available

39

Electrolux/AYP 142992

STOP.OVER.CENTER
(Superseded to 532142992)

$

$

Not available

42

Electrolux/AYP STD541437

NUT

$

$

Not available

43

Electrolux/AYP 19131612

WASHER GT
(Superseded to 819131612)

$

$

Not available

44

Electrolux/AYP STD533710

BOLT CARRIAGE 3/8-16 X 1.00

$

$

Not available

46

Electrolux/AYP 12000022

E-RING
(Superseded to 812000022)

$3.49

$

In Stock, only 4 left!

0

47

Electrolux/AYP 19292016

WASHER
(Superseded to 819292016)

$9.49

$

Usually ships in 3-10 days

0

49

Murray 145212

NUT.HXFLG.LOCK.
(Superseded to 532409149)

$1.49

$

In Stock, Qty 16

0

50

Electrolux/AYP 110452X

NUT PUSH M
(Superseded to 532110452)

$3.49

$

In Stock, Qty 20+

0
