HD F800 X (960820011-00) - Poulan Pro Tiller (2007-12)

Tiller

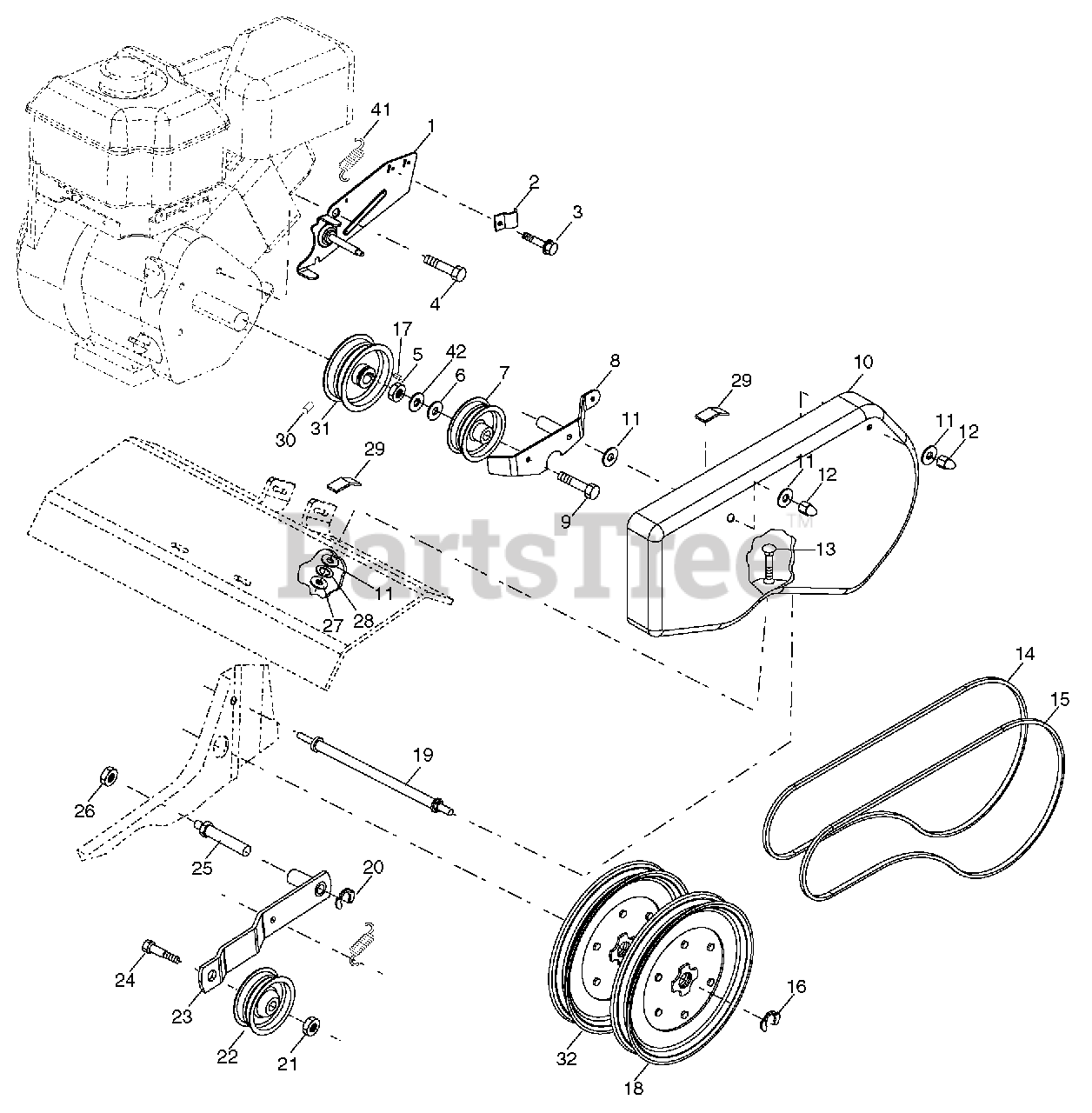

HD F800 X (960820011-00) - Poulan Pro Tiller (2007-12) > Parts Diagrams (6) > Belt Guard And Pulley Assembly

  • Title
180377

1

Bracket Assembly, Belt Guard

Part# 180377

OEM Warranty Repair Part for Electrolux/AYP

Not available

9484R

2

Clip, Cable

Part# 9484R (Superseded to 532009484)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

86777

3

Screw, Hex Washer Head, Slotted, Thread Cutting #10-24 x 1/2

Part# 86777 (Superseded to 532086777)

OEM Warranty Repair Part for Electrolux/AYP

Not available

74610812

4

Bolt, Hex Head 1/2-20 x 3/4

Part# 74610812

OEM Warranty Repair Part for Electrolux/AYP

Not available

73680600

5

Locknut, Hex 3/8-16

Part# 73680600 (Superseded to 873680600)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $2.75

19131316

6

Washer, 13/32 x 13/16 x 16 Ga.

Part# 19131316 (Superseded to 819131316)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

2009J

7

Pulley, Idler, Reverse

Part# 2009J

OEM Warranty Repair Part for Electrolux/AYP

Not available

180323

8

Reverse Idler Arm Assembly

Part# 180323

OEM Warranty Repair Part for Electrolux/AYP

Not available

74760628

9

Bolt, Hex Head 3/8-16 x 1-3/4

Part# 74760628

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $3.02

194630X428

10

Guard, Belt

Part# 194630X428

OEM Warranty Repair Part for Electrolux/AYP

Not available

19091016

11

Washer 9/32 x 5/8 x 16 Ga.

Part# 19091016 (Superseded to 819091016)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.34

104213X

12

Nut, Hex, Cap 1/4-20

Part# 104213X

OEM Warranty Repair Part for Electrolux/AYP

Not available

72140406

13

Bolt, Carriage 1/4-20 x 3/4

Part# 72140406 (Superseded to 872140406)

OEM Warranty Repair Part for Electrolux/AYP

Not available

133035

14

V-Belt (Forward Motion)

Part# 133035

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $33.53

2614J

15

V-Belt (Reverse)

Part# 2614J

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $16.76

12000028

16

Ring, Retainer

Part# 12000028 (Superseded to 812000028)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $5.58

2649M

17

Key, Square

Part# 2649M (Superseded to 532002649)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $3.34

151236

18

Pulley, Flat, Transmission

Part# 151236

OEM Warranty Repair Part for Electrolux/AYP

Not available

188502

19

Bolt, Belt Guard

Part# 188502

OEM Warranty Repair Part for Electrolux/AYP

Not available

12000036

20

Ring, Klip

Part# 12000036 (Superseded to 812000036)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

73350600

21

Nut, Hex, Jam 3/8-16

Part# 73350600

OEM Warranty Repair Part for Electrolux/AYP

Not available

161806

22

Pulley, Idler

Part# 161806

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $83.13

175377

23

Arm, Idler

Part# 175377

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $5.20

74760620

24

Bolt, Hex Head 3/8-16 x 1-1/4

Part# 74760620 (Superseded to 874760620)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

106968X

25

Shaft, Idler Arm

Part# 106968X

OEM Warranty Repair Part for Electrolux/AYP

Not available

73350500

26

Nut, Hex, Jam 5/16-18

Part# 73350500

OEM Warranty Repair Part for Electrolux/AYP

Not available

73220400

27

Nut, Hex 1/4-20

Part# 73220400 (Superseded to 873220400)

OEM Warranty Repair Part for Electrolux/AYP

Not available

10040400

28

Washer, Lock, HH Spring 1/4

Part# 10040400 (Superseded to 810040400)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

109227X

29

Pad, Idler

Part# 109227X (Superseded to 532109227)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

23200404

30

Set Screw, Headless, C.P.1/4-20 x 1/4

Part# 23200404

OEM Warranty Repair Part for Electrolux/AYP

Not available

101189L

31

Sheave, Engine

Part# 101189L

OEM Warranty Repair Part for Electrolux/AYP

Not available

151223

32

Pulley, V-Groove, Transmission

Part# 151223

OEM Warranty Repair Part for Electrolux/AYP

Not available

180307

41

Spring

Part# 180307

OEM Warranty Repair Part for Electrolux/AYP

Not available

138909

42

Spacer

Part# 138909

OEM Warranty Repair Part for Electrolux/AYP

Not available
