HD F900 (960820013-00) - Poulan Pro Tiller (2009-03)

Tiller

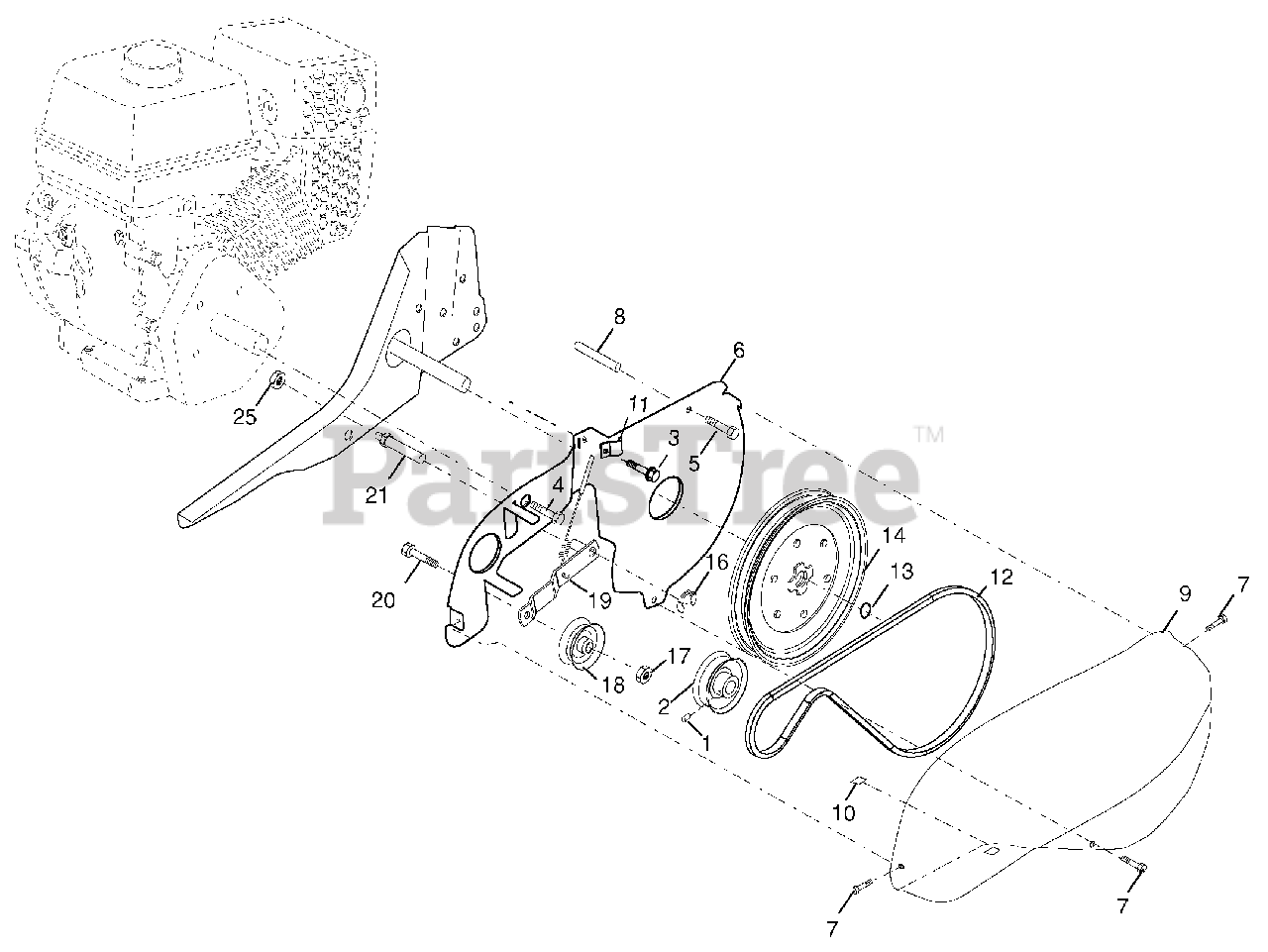

HD F900 (960820013-00) - Poulan Pro Tiller (2009-03) > Parts Diagrams (6) > Belt Guard And Pulley Assembly

  • Title
23230506

1

Screw Set 5/16-18 x 3/8 Patch

Part# 23230506 (Superseded to 823230506)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.34

130812

2

Sheave, Engine

Part# 130812 (Superseded to 532130812)

OEM Warranty Repair Part for Electrolux/AYP

Not available

86777

3

Screw, Tap Hex Head

Part# 86777 (Superseded to 532086777)

OEM Warranty Repair Part for Electrolux/AYP

Not available

74770508

4

Bolt, Hex 5/16-24 unf x 1/2

Part# 74770508 (Superseded to 874770508)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $3.34

17490440

5

Bolt, Thd Roller 1/4-20 x 2-1/2

Part# 17490440

OEM Warranty Repair Part for Electrolux/AYP

Not available

422920

6

Shield, Inner Belt Guard

Part# 422920

OEM Warranty Repair Part for Electrolux/AYP

Not available

170488

7

Screw Hex Wsh Hd #8-18 x 1/2

Part# 170488 (Superseded to 532170488)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

139155

8

Spacer Split

Part# 139155 (Superseded to 532139155)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $3.34

165768X428

9

Guard, Belt

Part# 165768X428

OEM Warranty Repair Part for Electrolux/AYP

Not available

109227X

10

Pad, Idler

Part# 109227X (Superseded to 532109227)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

9484R

11

Clip, Cable

Part# 9484R (Superseded to 532009484)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

9180R

12

V-Belt

Part# 9180R

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $22.35

12000028

13

Ring, Retainer

Part# 12000028 (Superseded to 812000028)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $5.58

151223

14

Sheave, Transmisison

Part# 151223

OEM Warranty Repair Part for Electrolux/AYP

Not available

12000036

16

Ring, Klip

Part# 12000036 (Superseded to 812000036)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

73350600

17

Nut, Hex, Jam 3/8-16

Part# 73350600

OEM Warranty Repair Part for Electrolux/AYP

Not available

161806

18

Pulley, Idler

Part# 161806

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $83.13

175377

19

Arm, Idler

Part# 175377

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $5.20

74760620

20

Bolt, Hex Head 3/8-16 x 1-1/4

Part# 74760620 (Superseded to 874760620)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

106968X

21

Shaft, Idler Arm

Part# 106968X

OEM Warranty Repair Part for Electrolux/AYP

Not available

73350500

25

Nut, Hex, Jam 5/16-18

Part# 73350500

OEM Warranty Repair Part for Electrolux/AYP

Not available
