HD R350 B - Electrolux/AYP Rear-Tine Tiller (1995)

Rear-Tine Tiller

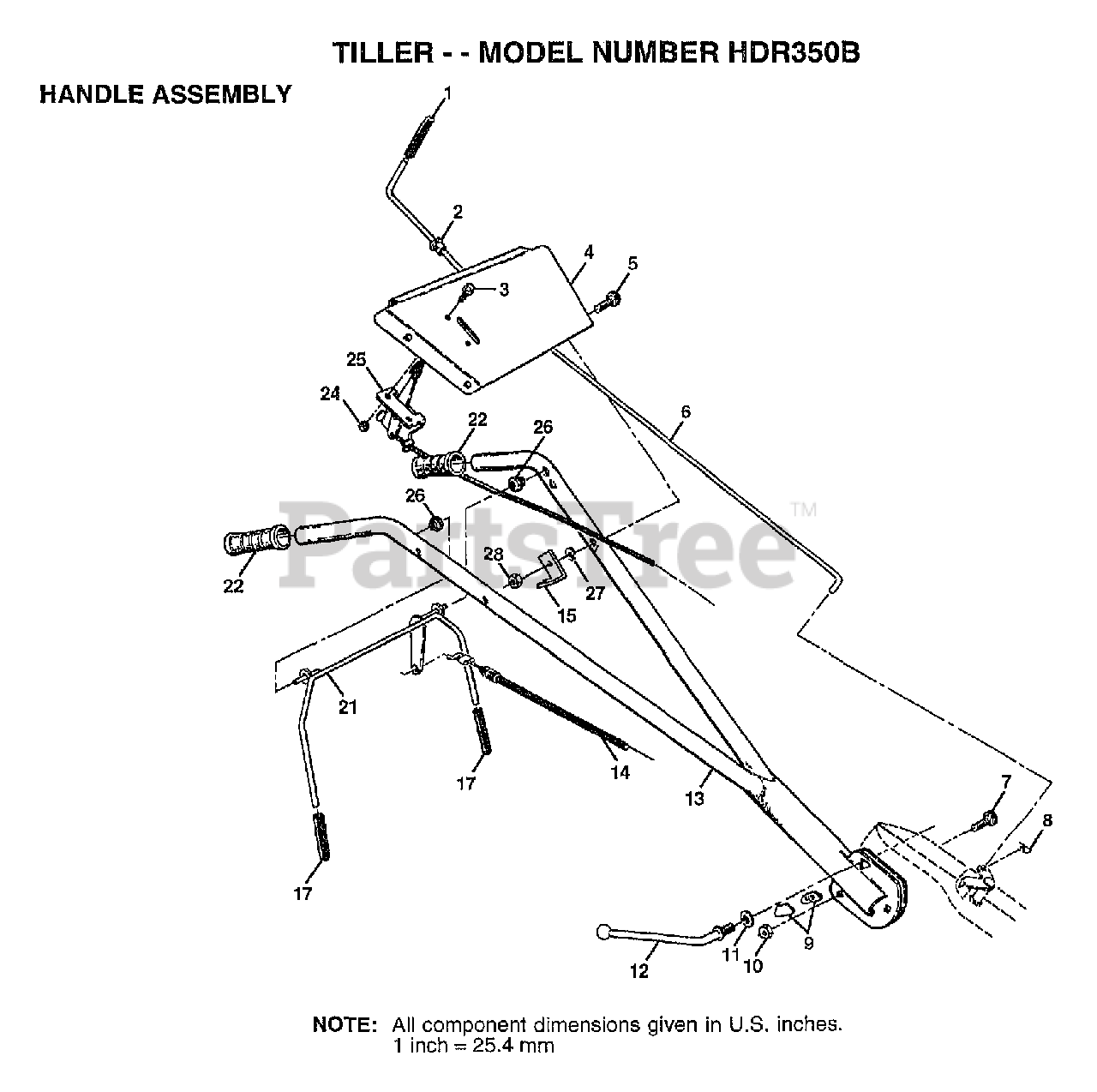

HD R350 B - Electrolux/AYP Rear-Tine Tiller (1995) > Parts Diagrams (7) > TILLER HANDLE ASSEMBLY

  • Title
8389J

1

GRIP TI

Part# 8389J

OEM Warranty Repair Part for Electrolux/AYP

Not available

121248X

2

BUSHING

Part# 121248X (Superseded to 532121248)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

71191008

3

SCREW.PNHD.10-24

Part# 71191008 (Superseded to 871191008)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

126949X550

4

BRACKET.HDLE.TILL

Part# 126949X550

OEM Warranty Repair Part for Electrolux/AYP

Not available

72110514

5

BOLT CARRIAGE CRT

Part# 72110514

OEM Warranty Repair Part for Electrolux/AYP

Not available

108281X

6

ROD SHIFT CRT

Part# 108281X

OEM Warranty Repair Part for Electrolux/AYP

Not available

72110608

7

BOLT D

Part# 72110608 (Superseded to 872110608)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

4497H

8

RETAINER M

Part# 4497H

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $6.70

109229X

9

LOCK CRT

Part# 109229X (Superseded to 532109229)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

73930600

10

LOCKNUT

Part# 73930600

OEM Warranty Repair Part for Electrolux/AYP

Not available

19131611

11

WASHER CRT

Part# 19131611

OEM Warranty Repair Part for Electrolux/AYP

Not available

109228X

12

LEVER LOCK CRT

Part# 109228X (Superseded to 532109228)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $5.58

149314

13

HANDLE.ASM.V-PLOW

Part# 149314

OEM Warranty Repair Part for Electrolux/AYP

Not available

145820

14

CABLE.CLUTCH.Z-BE

Part# 145820

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $14.52

145821

15

BRACKET.CLUTCH.CA

Part# 145821

OEM Warranty Repair Part for Electrolux/AYP

Not available

102604X

17

GRIP BAR CRT

Part# 102604X (Superseded to 532102604)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

145829

21

BAR.ASM.CNTRL.VPL

Part# 145829

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $18.72

140526

22

GRIP HDLE NUBBED

Part# 140526

OEM Warranty Repair Part for Electrolux/AYP

Not available

73731000

24

NUT

Part# 73731000

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $2.56

127012X

25

"CONT,THROTTLE"

Part# 127012X (Superseded to 532127012)

OEM Warranty Repair Part for Electrolux/AYP

Not available

146480

26

GROMMET.HANDLE.V-

Part# 146480

OEM Warranty Repair Part for Electrolux/AYP

Not available

10040500

27

LOCKWASHER

Part# 10040500 (Superseded to 810040500)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

73800500

28

NUT

Part# 73800500 (Superseded to 873800500)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.01
