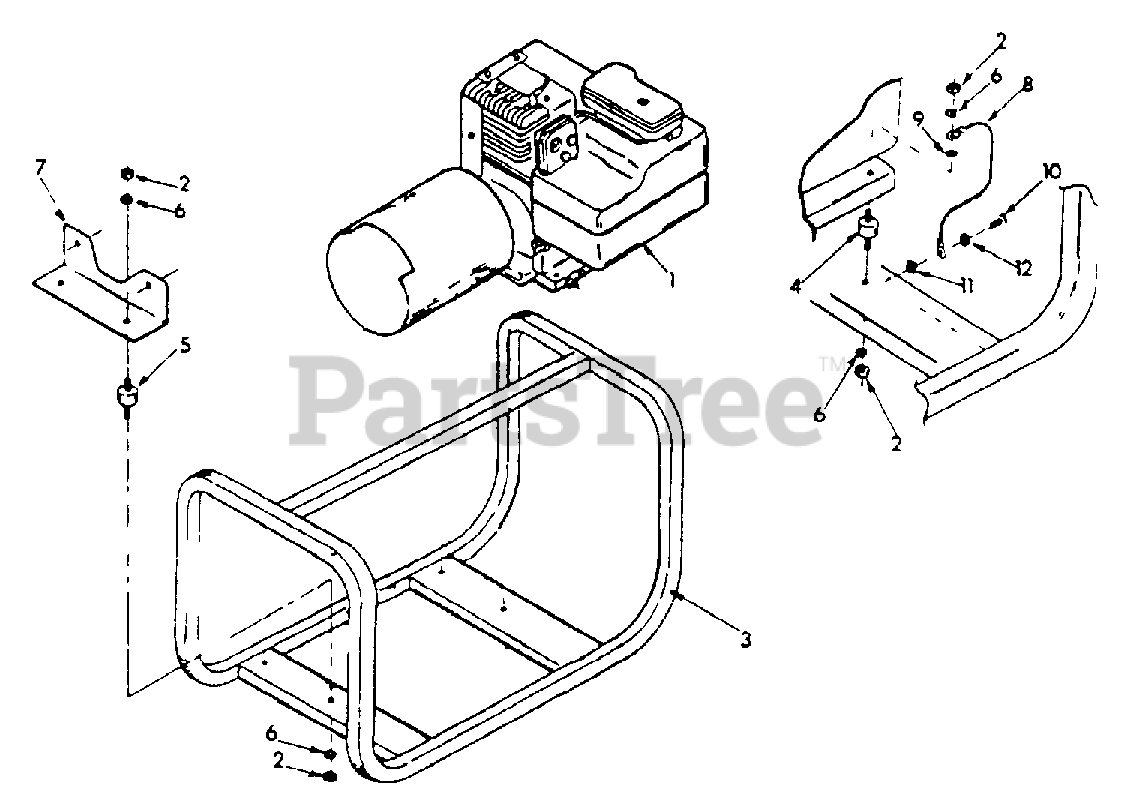

HD3000 (9092-1) - Generac 2,500 Watt Portable Generator Cradle Assembly (10/95) Parts Diagram

2,500 Watt Portable Generator

Cradle Assembly (10/95) Parts Diagram

  • Title

1

Briggs & Stratton 70431

ENGINE - BRIGGS & STRATTON 5 HP.

$1.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 45771

HEX NUT, M8-1.25

$

$

Not available

3

Briggs & Stratton 78868

CRADLE

$

$

Currently unavailable

4

Briggs & Stratton 66443A

VIBRATION MOUNT - M8-1.25 x 32mm

$

$

Currently unavailable

5

Briggs & Stratton 66443B

VIBRATION MOUNT - M8-1.25 x 12mm
(Superseded to 66443BGS)

$20.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 22129

LOCKWASHER -- M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 77701A

GENERATOR SUPPORT

$

$

Currently unavailable

8

Briggs & Stratton 10953621

GROUND WIRE ASSEMBLY

$

$

Currently unavailable

9

Briggs & Stratton 27482

SHAKE-PROOF WASHER
(Superseded to 27482GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 24911

SCREW -- No. 8 X 3/8"
(Superseded to 24911GS)

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 22769

SHAKE-PROOF WASHER -- No. 10
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 38150

FLAT WASHER -- No. 8
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0
