HD3000 (9092-1) - Generac 2,500 Watt Portable Generator Receptacle Panel (10/95) Parts Diagram

2,500 Watt Portable Generator

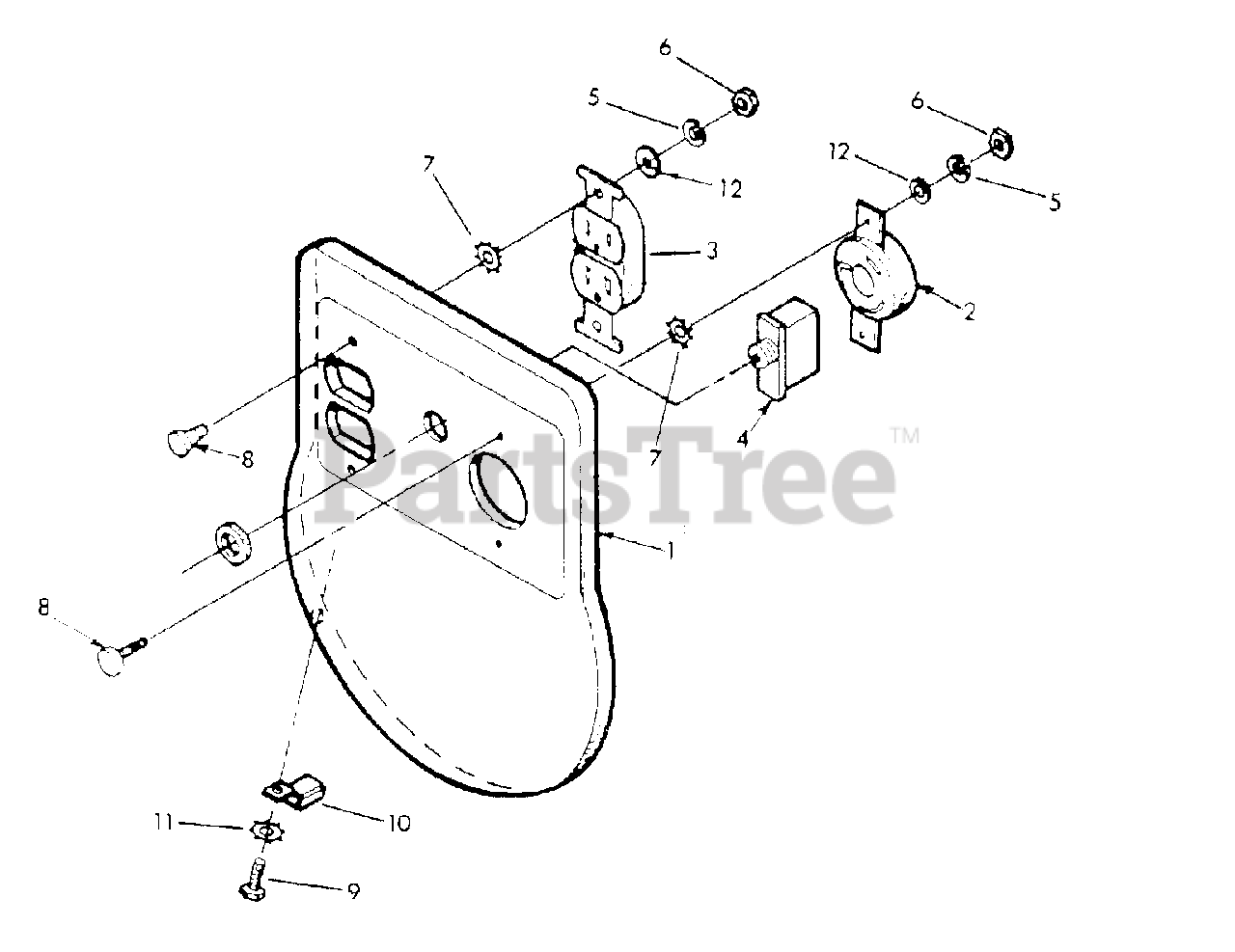

Receptacle Panel (10/95) Parts Diagram

  • Title

1

Briggs & Stratton 76264

PANEL, RECEPTACLE -- Silkscreened

$

$

Currently unavailable

2

Briggs & Stratton 74190

RECEPTACLE -- 120 VOLTS, 20 AMP (twist lock)

$

$

Not available

3

Briggs & Stratton 98759

RECEPTACLE -- 120 VOLTS, 20 AMP (duplex)

$

$

Currently unavailable

4

Briggs & Stratton 75207

CIRCUIT BREAKER - 20 AMP
(Superseded to 209872GS)

$9.99

$

In Stock, only 4 left!

0

5

Briggs & Stratton 22264

LOCK WASHER -- No. 8

$

$

Not available

6

Briggs & Stratton 51715

HEX NUT -- No. 8-32
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 23365

SERRATED WASHER -- No. 8
(Superseded to 5023365)

$462.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 75475

SCREW -- No. 8-32 x 3/8"

$

$

Not available

9

Briggs & Stratton 24489

SCREW -- No. 10-32 x 3/8"

$

$

Currently unavailable

10

Briggs & Stratton 25433

GROUND LUG

$

$

Not available

11

Briggs & Stratton 22769

SHAKE-PROOF WASHER -- No. 10
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 38150

FLAT WASHER -- No. 8
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0
