HD6000 (9093-0) - Generac 4,000 Watt Portable Generator Cradle No. 75991 Parts Diagram

4,000 Watt Portable Generator

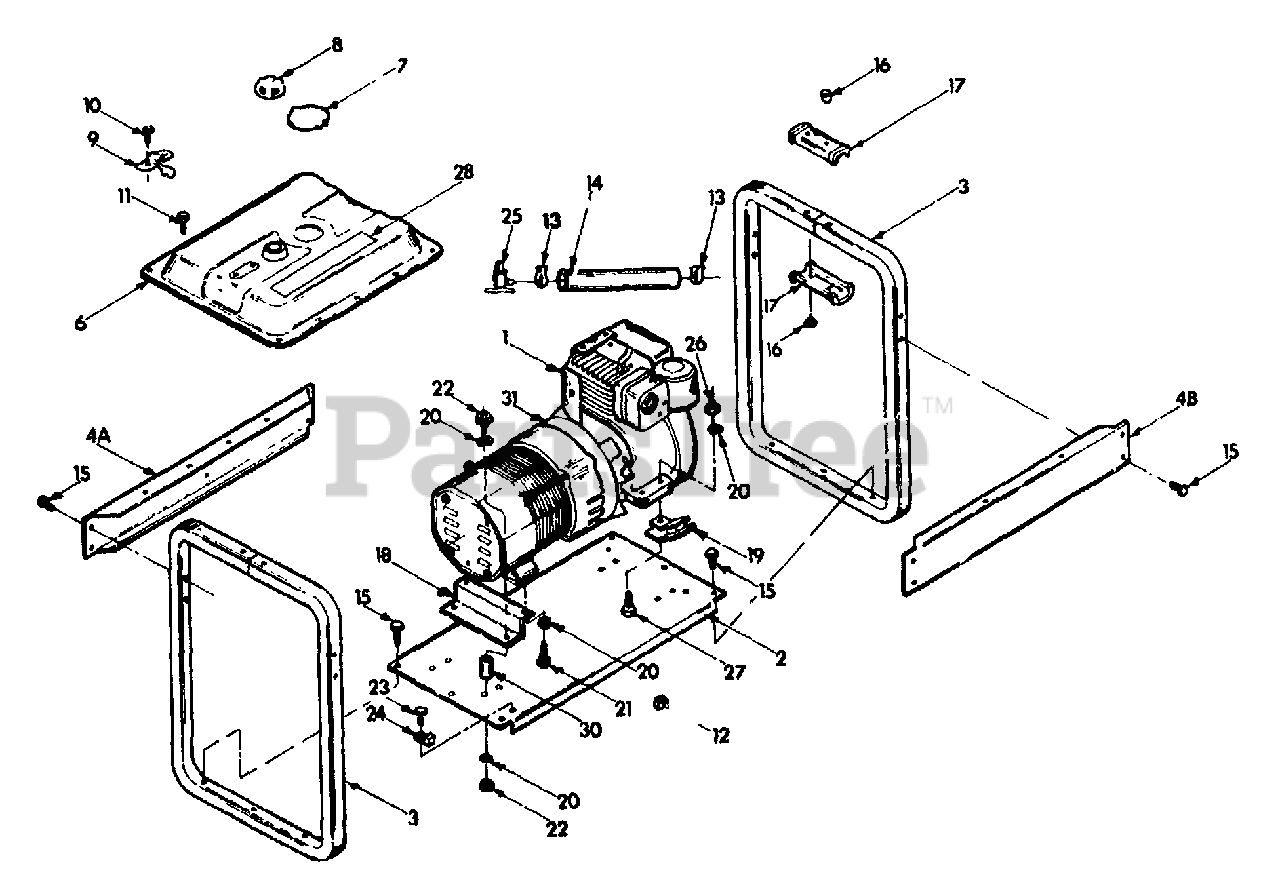

Cradle No. 75991 Parts Diagram

  • Title

1

Briggs & Stratton 74785

ENGINE-BRIGGS & STRATTON MODEL 190432-5166-01
(Superseded to 7074785YP)

$37.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 70643

BASE, MOUNTING

$

$

Currently unavailable

3

Briggs & Stratton 70603

LOOP, CRADLE END

$

$

Currently unavailable

4A

Briggs & Stratton 70636

SUPPORT, FUEL TANK-LH

$

$

Currently unavailable

4B

Briggs & Stratton 70636A

SUPPORT, FUEL TANK-RH

$

$

Currently unavailable

6

Briggs & Stratton 73715

FUEL TANK-4.5 U S. GALLONS
(Superseded to 7073715YP)

$

$

Not available

7

Briggs & Stratton 64680B

COVER, SPARK PLUG ACCESS
(Superseded to 64680BGS)

$7.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 76280

CAP, FUEL TANK
(Superseded to 76280GS)

$

$

Not available

9

Briggs & Stratton 66391B

GAUGE, FUEL LEVEL

$

$

Not available

10

Briggs & Stratton 52749

SCREW-M5-0.80 x 12MM

$

$

Currently unavailable

11

Briggs & Stratton 56892

SCREW(CRIMPTITE)-NO. 10-32 x 3/8"
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 52858

NUT, HEX-M8-1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 48031C

CLAMP, FUEL HOSE-1/4"

$

$

Not available

14

Briggs & Stratton 47662AE

HOSE- FUEL-1/4" ID x 12"

$

$

Currently unavailable

15

Briggs & Stratton 58443

SCREW (CRIMPTITE) 1/4"-20 x 5/8"
(Superseded to 58443GS)

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 66831

RIVET-4MM

$

$

Not available

17

Briggs & Stratton 66450

HANDLE, PLASTIC

$

$

Not available

18

Briggs & Stratton 73078

SUPPORT, GENERATOR

$

$

Currently unavailable

19

Briggs & Stratton 70642

MOUNT, VIBRATION
(Superseded to 70642GS)

$31.99

$

In Stock, only 3 left!

0

20

Briggs & Stratton 22129

LOCKWASHER-5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

21

Briggs & Stratton 39253

CAPSCREW, HEX HEAD-M8-x 20MM
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 22142

SCREW, HEX HEAD-5/16"-18 x 3/4"
(Superseded to 5022142)

$45.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 24489

SCREW, (TAPTITE)-NO. 10-32 x 3/8"

$

$

Currently unavailable

24

Briggs & Stratton 25433

LUG, GROUNDING

$

$

Not available

25

Briggs & Stratton 27734

VALVE, FUEL SHUTOFF
(Superseded to 27734GS)

$11.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 52858

FLANGENUT M8-1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 1 left!

0

27

Briggs & Stratton 76222

SCREW, PAN HEAD-M8-1.25 x 40 LONG
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 70687

DECAL-"CAUTION!"

$

$

Currently unavailable

30

Briggs & Stratton 44624

MOUNT, VIBRATION

$

$

Not available

31

Briggs & Stratton 68342

SPACER, ENGINE

$

$

Currently unavailable
