HD6000 (9093-0) - Generac 4,000 Watt Portable Generator Generator No. 70454 Parts Diagram

4,000 Watt Portable Generator

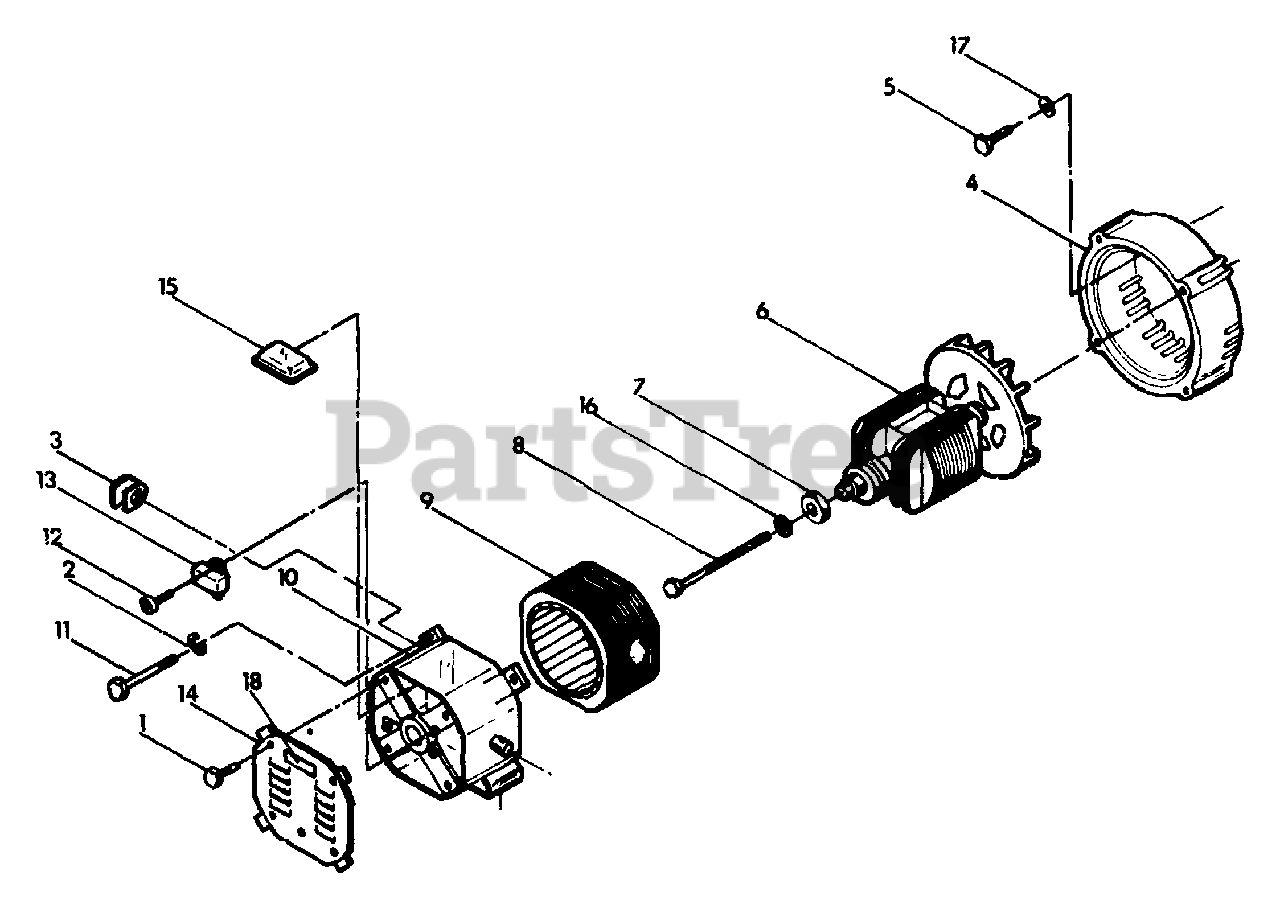

Generator No. 70454 Parts Diagram

  • Title

1

Briggs & Stratton 74908

SCREW (TAPTITE) M5-0.80 x 10MM
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 22097

LOCKWASHER-1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 67022

GROMMET, LEAD OUTLET
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 66365D

HOUSING, ENGINE ADAPTER
(Superseded to 66365DGS)

$70.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 23541

CAPSCREW, HEX HEAD-5/16"-24 x 2-1/2"

$

$

Currently unavailable

6

Briggs & Stratton 74716

ROTOR & FAN ASSEMBLY

$

$

Not available

7

Briggs & Stratton 65791

BEARING, BALL
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 75431

BOLT, ROTOR-5/16"-24 x 8.5"
(Superseded to 75431GS)

$4.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 74709

STATOR ASSEMBLY

$

$

Currently unavailable

10

Briggs & Stratton 66825

CARRIER, REAR BEARING

$

$

Currently unavailable

11

Briggs & Stratton 66449D

BOLT, STATOR-M6-1.00 x 130MM

$

$

Currently unavailable

12

Briggs & Stratton 66849

SCREW (TAPTITE)-M5-0.80 x 16MM
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 66386

HOLDER, BRUSH
(Superseded to 66386GS)

$23.99

$

In Stock, only 2 left!

0

14

Briggs & Stratton 67025

COVER, BEARING CARRIER

$

$

Currently unavailable

14

Briggs & Stratton 73083

COVER, BEARING CARRIER

$

$

Currently unavailable

15

Briggs & Stratton 66850

BOARD, BRIDGE RECTIFIER
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 67451

FLATWASHER, (SPECIAL)-M8

$

$

Currently unavailable

17

Briggs & Stratton 22129

LOCKWASHER, M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

18

Briggs & Stratton 74728

DECAL-NEUTRAL GROUND
(Superseded to 74728GS)

$5.49

$

Usually ships in 2-12 days

0
