HDC-1000 (45-01713) - Husqvarna Dump Cart (2005-06) Repair Parts For Utility Carts Parts Diagram

Dump Cart

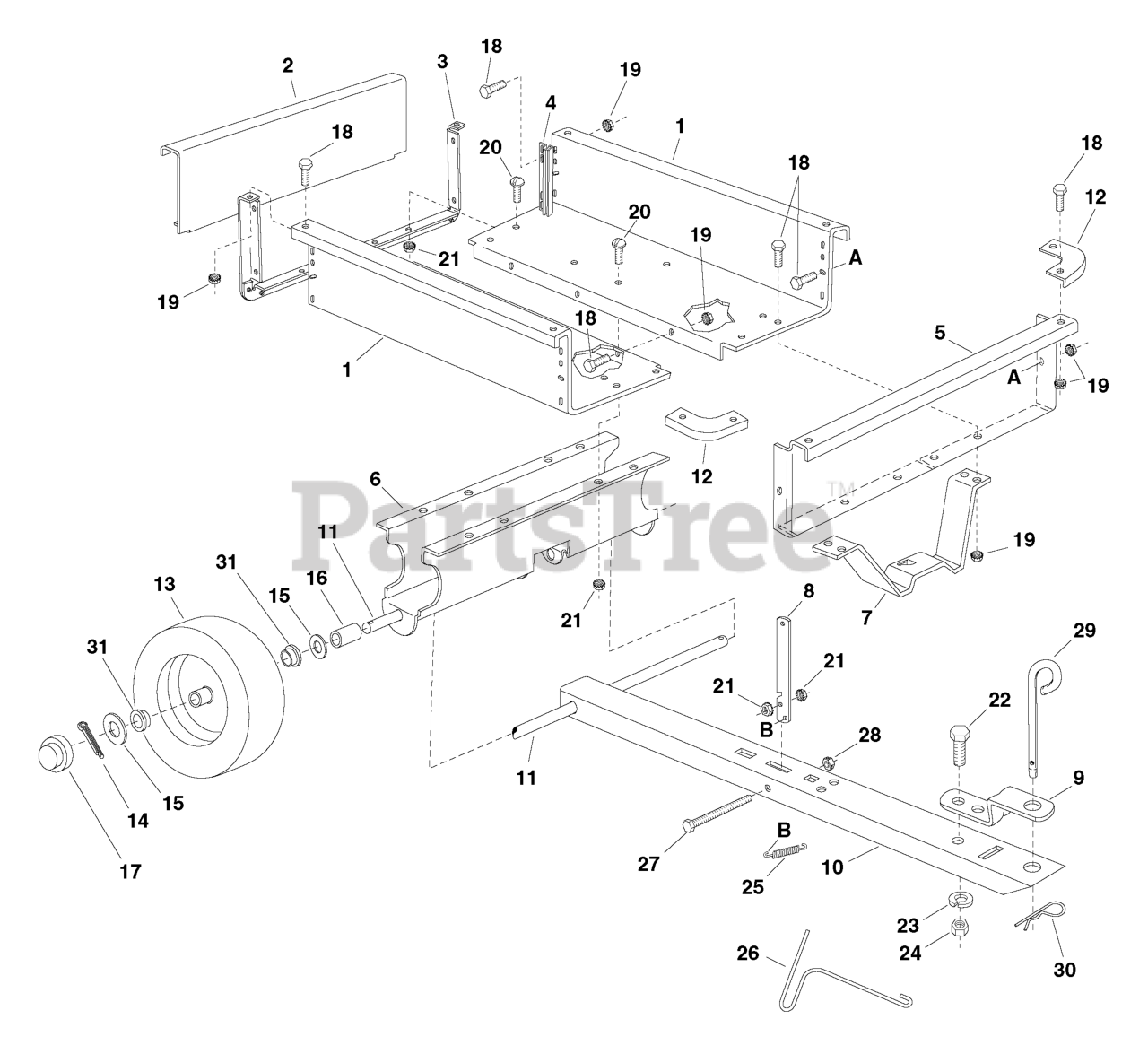

Repair Parts For Utility Carts Parts Diagram

  • Title

1

Husqvarna 23985

Cart Body

$

$

Currently unavailable

2

Husqvarna 23502

Tailgate

$

$

Currently unavailable

3

Husqvarna 62458

Tailgate Reinforcement Bracket

$

$

Currently unavailable

4

Husqvarna 23548

Guide, Tailgate

$

$

Currently unavailable

5

Husqvarna 23492

Front Panel

$

$

Currently unavailable

6

Husqvarna 23507

Wheel Support

$

$

Currently unavailable

7

Husqvarna 24497

Latch Stand Bracket

$

$

Currently unavailable

8

Husqvarna 24498

Latch Lock Lever

$

$

Currently unavailable

9

Husqvarna 23014

Hitch Bracket

$

$

Currently unavailable

10

Husqvarna 24750

Draw Bar Tongue

$

$

Currently unavailable

11

Husqvarna 24897

Axle, Wheel 1" Dia.

$

$

Not available

12

Husqvarna 23484

Cap, Front Corner

$

$

Currently unavailable

13

Husqvarna 46272

Wheel, 15/6.00 x 8.00

$

$

Currently unavailable

14

Husqvarna 43093

Cotter Pin, 1/8" Dia. x 1-1/2"

Note: Purchase Common Hardware Locally

$

$

Currently unavailable

15

Husqvarna 43601

Washer, Flat 1"

Note: Purchase Common Hardware Locally

$

$

Currently unavailable

16

Husqvarna 44678

Spacer Tube, 1-1/4" O.D. x 2" Lg.

$

$

Currently unavailable

17

Husqvarna 43014

Hub Cap

$

$

Currently unavailable

18

Husqvarna 43175

Hex Bolt, 1/4-20 x 1/2"

Note: Purchase Common Hardware Locally

$

$

Currently unavailable

19

Husqvarna 46978

Hex Nut, 1/4-20 (SEMS)

$

$

Currently unavailable

20

Husqvarna 43814

Truss Hd. Bolt, 5/16-18 x 3/4" Lg.

Note: Purchase Common Hardware Locally

$

$

Currently unavailable

21

Husqvarna 46980

Hex Nut, 5/16-18 (SEMS)

$

$

Currently unavailable

22

Husqvarna 43001

Hex Bolt, 3/8-16 x 1" Lg.

Note: Purchase Common Hardware Locally

$

$

Not available

23

Husqvarna 43003

Lock Washer, 3/8"

Note: Purchase Common Hardware Locally

$

$

Not available

24

Husqvarna 43015

Hex nut, 3/8-16

Note: Purchase Common Hardware Locally

$

$

Not available

25

Husqvarna 47408

Extension Spring

$

$

Currently unavailable

26

Husqvarna 47622

Spring Puller Tool

$

$

Currently unavailable

27

Husqvarna 47407

Hex Bolt, 5/16-18 x 3-3/4

Note: Purchase Common Hardware Locally

$

$

Currently unavailable

28

Husqvarna 43064

Hex Lock Nut, 5/16-18

Note: Purchase Common Hardware Locally

$

$

Not available

29

Husqvarna 23353

Hitch Pin

$

$

Currently unavailable

30

Husqvarna 43343

Hair Cotter Pin, 1/8" (#4)

Note: Purchase Common Hardware Locally

$

$

Not available

31

Husqvarna 44488

Wheel Bearing

$

$

Currently unavailable

Husqvarna 48459

Owner's Manual

$

$

Currently unavailable
