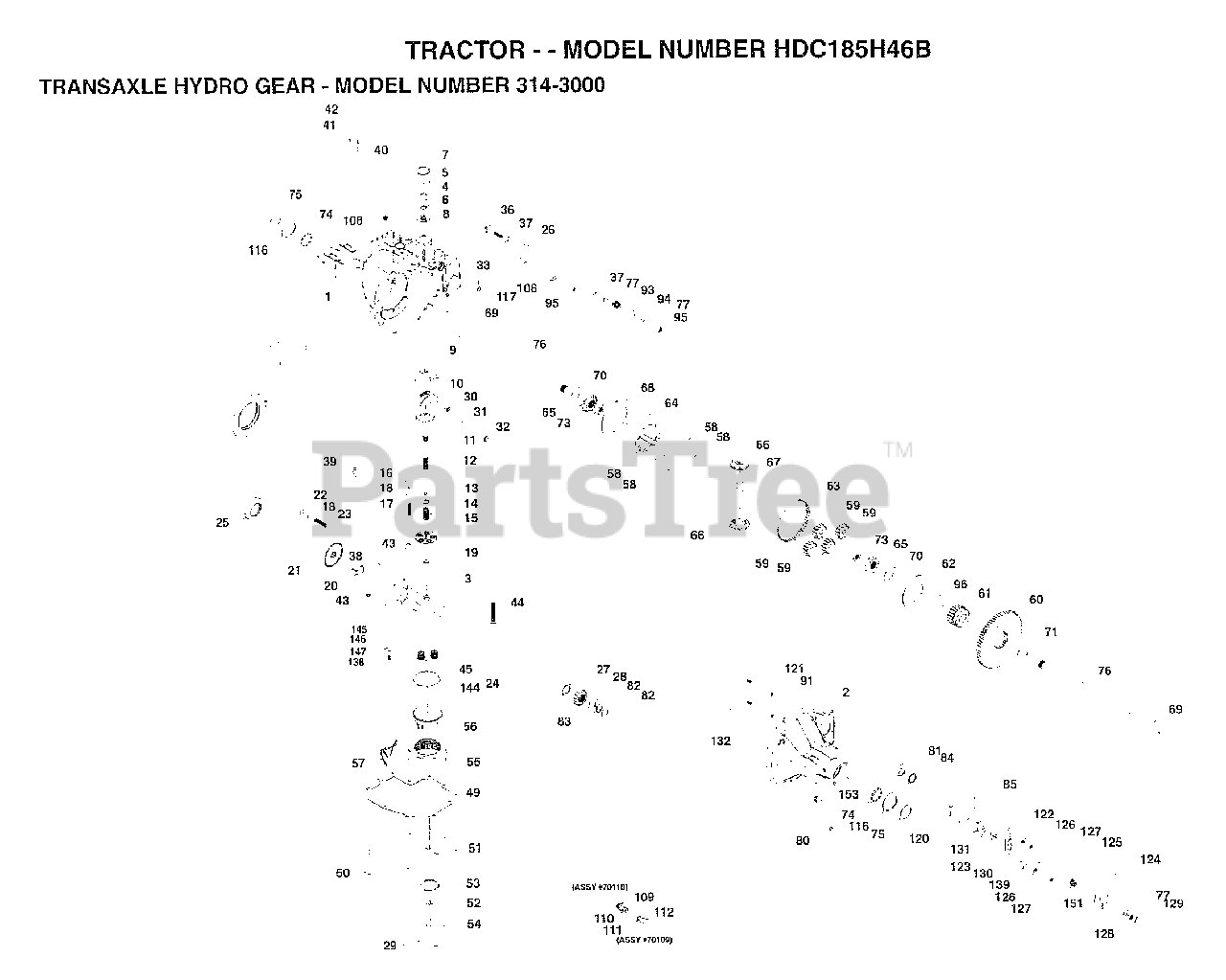

HDC 185H46 B - Electrolux/AYP Lawn Tractor (1997) TRANSAXLE HYDRO GEAR Parts Diagram

Lawn Tractor

TRANSAXLE HYDRO GEAR Parts Diagram

  • Title

1

Electrolux/AYP 161122

MAIN HOUSING ASSY
(Superseded to 582997801)

$613.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 161123

RH HOUSING ASSY
(Superseded to 582997901)

$141.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 161124

CENTER SECTION ASSY

$293.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 161125

SPACER
(Superseded to 582998001)

$60.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 142932

SEAL.9008000-0128
(Superseded to 532142932)

$14.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 142928

RING.RET.2003016.
(Superseded to 532142928)

$6.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 142933

RING.RET.2003052.
(Superseded to 532142933)

$6.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 142934

BEARING.(50552)42X68X16
(Superseded to 122745X)

$85.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 142935

CRADLE- 2003023.
(Superseded to 532142935)

$30.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 142937

SWASHPLT.2003087.
(Superseded to 532142937)

$160.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 150771

BEARING.THU.50551
(Superseded to 532150771)

$36.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 161126

INPUT SHAFT

$112.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 142978

WASHER.2003017
(Superseded to 532142978)

$7.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 142977

SPRING.2003014.
(Superseded to 532142977)

$6.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 142938

BLOCK.CLYN.70079.
(Superseded to 532169898)

$145.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 142944

BLOCK.CYLIN.70082
(Superseded to 532142944)

$

$

Not available

24

Electrolux/AYP 161127

OUTPUT (MOTOR) SHAFT
(Superseded to 582998101)

$113.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 150773

BEARING.THU.50552
(Superseded to 122745X)

$85.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 161128

CONTROL ARM

$42.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 161129

SPACER
(Superseded to 582998201)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 161130

16T PINION GEAR
(Superseded to 582998301)

$18.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 161131

CAPSCREW, M6 X 1-22

$2.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 142941

GUIDE.2000015.
(Superseded to 532142941)

$7.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 161132

TRUNNION ARM

$85.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 161133

TRUNNION BUSHING
(Superseded to 582998401)

$35.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 142940

SEAL.9008000-0126
(Superseded to 532142940)

$6.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 161134

5/16-24 STUD
(Superseded to 582998501)

$7.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 142967

PUCK.DAMPER.50281
(Superseded to 532142967)

$7.49

$

Usually ships in 3-10 days

0

38

CHECK WITH SUPPLIER

$

$

Not available

39

Electrolux/AYP 142946

ACTUATOR.2003555
(Superseded to 532142946)

$18.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 142945

SEAL.LIP.45074
(Superseded to 532142945)

$

$

Not available

41

Electrolux/AYP 142952

ARM.BYPASS.50270
(Superseded to 532142952)

$21.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 142953

RING.RETAIN.44870
(Superseded to 532142953)

$6.49

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 142965

PIN.HYDRO.50002
(Superseded to 532142965)

$10.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 150797

BOLT.3/8-24.50016
(Superseded to 582976101)

$4.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 161135

GASKET, LOWER
(Superseded to 582998601)

$31.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 161136

SCREW
(Superseded to 582207101)

$3.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 161137

LOWER COVER

$

$

Not available

52

Electrolux/AYP 161138

GEROTOR ASSY
(Superseded to 582998701)

$51.99

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 144581

0RING.90041011340
(Superseded to 532144581)

$6.49

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 161139

GEROTOR COVER
(Superseded to 582998801)

$132.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 161140

FILTER
(Superseded to 532161140)

$56.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 161148

51T RING GEAR
(Superseded to 582999401)

$103.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 161141

CHARGE MANIFOLD

$248.99

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 161142

RETAINER, MOTOR BEARING
(Superseded to 582998901)

$17.99

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 161143

PIN, CARRIER
(Superseded to 582999001)

$18.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 161144

15T PLANET GEAR
(Superseded to 582999101)

$24.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 161145

67T SPUR GEAR
(Superseded to 582999201)

$122.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 161146

21T SUN GEAR

$42.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 161147

PLANET THRUST PLATE
(Superseded to 582999301)

$21.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 161149

PLANETARY CARRIER
(Superseded to 582999501)

$

$

Not available

65

Electrolux/AYP 161150

MITER GEAR, DIFF. (SPLINED)
(Superseded to 582999601)

$36.99

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 161151

MITER GEAR, DIFF.
(Superseded to 582999701)

$31.99

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 161152

SHAFT, DIFFERENTIAL
(Superseded to 582999801)

$26.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 161153

DIFF. THRUST PLATE
(Superseded to 582999901)

$23.99

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 161154

WASHER

$2.99

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 161155

WASHER
(Superseded to 583000001)

$6.99

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 161156

HEX JAM NUT, 5/8-18
(Superseded to 583000101)

$4.99

$

Usually ships in 3-10 days

0

75

Electrolux/AYP 161157

SEAL
(Superseded to 583000201)

$34.99

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 161158

SHAFT, AXLE
(Superseded to 583000301)

$160.99

$

In Stock, only 1 left!

0

77

Electrolux/AYP 142884

WASHER HYD 44130
(Superseded to 532142884)

$5.99

$

Usually ships in 3-10 days

0

79

Electrolux/AYP 150801

GASKET.44813
(Superseded to 582976301)

$33.99

$

Usually ships in 3-10 days

0

80

Electrolux/AYP 161159

SCREW
(Superseded to 532161159)

$6.49

$

Usually ships in 3-10 days

0

81

Electrolux/AYP 161160

NEEDLE BEARING
(Superseded to 583000401)

$35.99

$

Usually ships in 3-10 days

0

82

Electrolux/AYP 161161

WASHER
(Superseded to 583000501)

$3.99

$

Usually ships in 3-10 days

0

83

Electrolux/AYP 161162

RETAINING RING
(Superseded to 583000601)

$2.99

$

Usually ships in 3-10 days

0

84

Electrolux/AYP 161163

LIP SEAL
(Superseded to 583000701)

$12.99

$

Usually ships in 3-10 days

0

85

Electrolux/AYP 161164

BRAKE DISK
(Superseded to 583000801)

$66.99

$

Usually ships in 3-10 days

0

93

Electrolux/AYP 142969

SPRING.HYD.50277
(Superseded to 532142969)

$

$

Not available

94

Electrolux/AYP 142980

SPACER.HYD.50278
(Superseded to 532142980)

$4.99

$

Usually ships in 3-10 days

0

95

Electrolux/AYP 142957

NUT.LOCK.HX.50108
(Superseded to 532142957)

$

$

Not available

96

Electrolux/AYP 161165

SLEEVE BEARING

$16.99

$

Usually ships in 3-10 days

0

97

Electrolux/AYP 150798

OIL

$

$

Not available

106

Electrolux/AYP 161166

SPACER, TRUNNION
(Superseded to 583000901)

$4.99

$

Usually ships in 3-10 days

0

109

Electrolux/AYP 142918

O-RING.ASM.70110
(Superseded to 532142918)

$

$

Not available

111

Electrolux/AYP 142917

CAP.VENT.70109
(Superseded to 532142578)

$46.99

$

Usually ships in 3-10 days

0

116

Electrolux/AYP 161167

RETAINING RING

$

$

Not available

117

Electrolux/AYP 161168

STD HDLS PIN
(Superseded to 583001001)

$3.99

$

Usually ships in 3-10 days

0

120

Electrolux/AYP 142883

PUCK BRAKE 44132
(Superseded to 532142883)

$8.99

$

In Stock, only 2 left!

0

122

Electrolux/AYP 161169

BRAKE YOKE

$19.99

$

Usually ships in 3-10 days

0

123

Electrolux/AYP 161170

BOLT

$

$

Not available

124

Electrolux/AYP 161171

ARM, BRAKE
(Superseded to 583001101)

$31.99

$

Usually ships in 3-10 days

0

125

Electrolux/AYP 142887

PIN BRAKE 44127
(Superseded to 532142887)

$6.49

$

Usually ships in 3-10 days

0

126

Electrolux/AYP 161172

LOCKWASHER, 1/4

$2.99

$

Usually ships in 3-10 days

0

127

Electrolux/AYP 161173

NUT, 1/4-20
(Superseded to 584322601)

$1.99

$

Usually ships in 3-10 days

0

128

Electrolux/AYP 142885

SUB= 144607

$

$

Not available

129

Electrolux/AYP 142886

SUB= 144608

$

$

Not available

130

Electrolux/AYP 161174

SPACER
(Superseded to 583001201)

$6.49

$

Usually ships in 3-10 days

0

131

Electrolux/AYP 142882

PUCK PLATE 44134
(Superseded to 584289601)

$6.49

$

Usually ships in 3-10 days

0

138

Electrolux/AYP 161175

SCREW
(Superseded to 422988)

$

$

Not available

139

Electrolux/AYP 161176

WASHER

$

$

Not available

144

Electrolux/AYP 161177

O RING

$4.49

$

Usually ships in 3-10 days

0

145

Electrolux/AYP 161178

CHARGE RELIEF SPRING

$2.99

$

Usually ships in 3-10 days

0

146

Electrolux/AYP 161179

BALL

$2.99

$

Usually ships in 3-10 days

0

147

Electrolux/AYP 161180

PLATE, RELIEF

$4.99

$

Usually ships in 3-10 days

0

151

Electrolux/AYP 161181

COMP. SPRING, BRAKE ANTI-DRAG
(Superseded to 583001401)

$6.49

$

Usually ships in 3-10 days

0

153

Electrolux/AYP 142914

PLUG.9005110-5600
(Superseded to 532142914)

$

$

Not available
