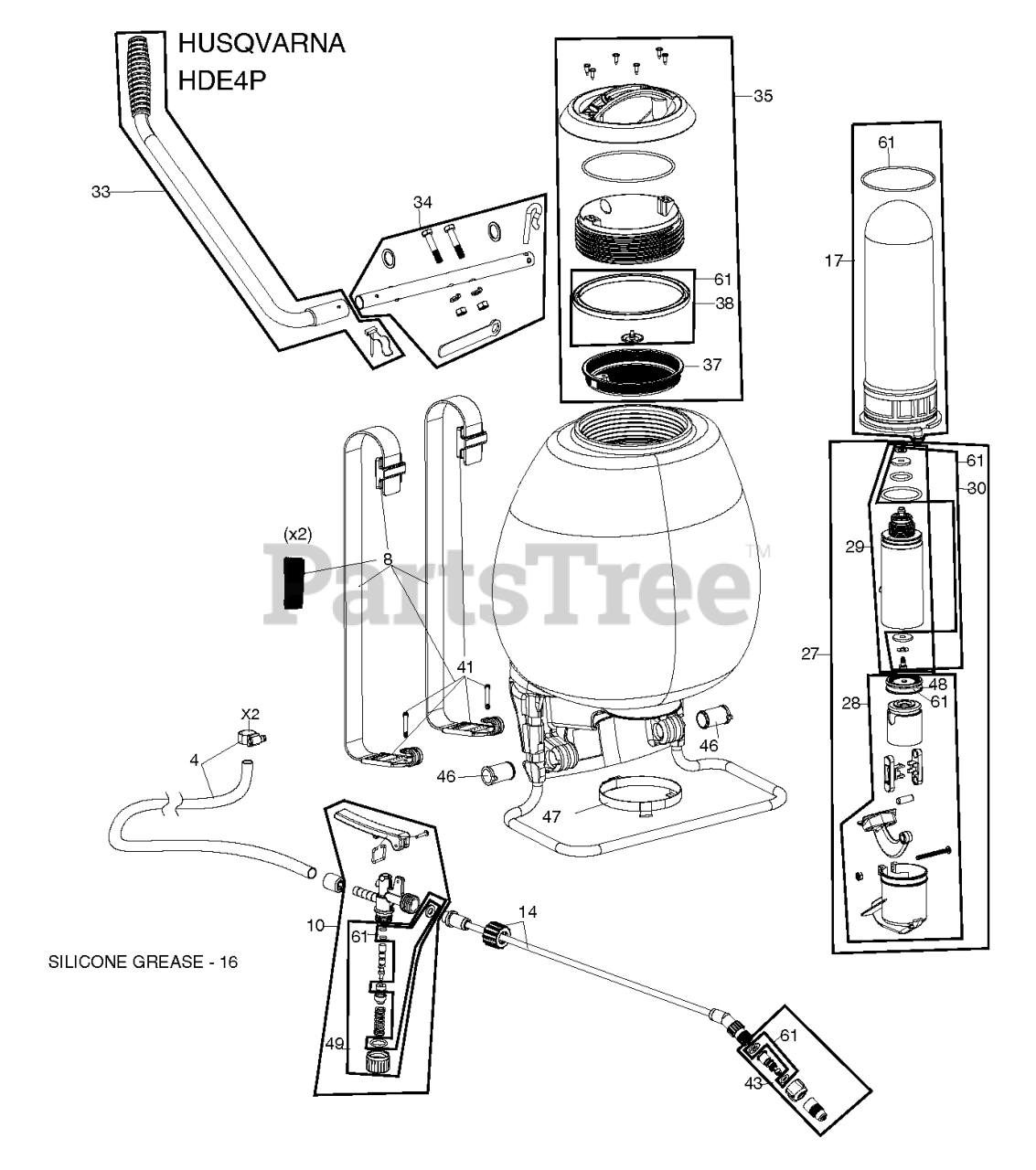

HDE 4P - Husqvarna Backpack Sprayer (2013-10) PRODUCT COMPLETE Parts Diagram

Backpack Sprayer

PRODUCT COMPLETE Parts Diagram

  • Title

8

Husqvarna 574151401

SHOULDER STRAP ASSEMBLY

$

$

Not available

4

Husqvarna 574151701

HOSE AND 2 HOSE CLAMPS

$

$

Not available

46

Husqvarna 574149501

NYLON BEARING

$

$

Not available

37

Husqvarna 585830306

STRAINER

$

$

Not available

27

Husqvarna 577121401

G8 PISTON & CYLINDER COMPLETE

$

$

Not available

17

Husqvarna 585830302

PRESSURE CHAMBER & ORING

$

$

Not available

47

Husqvarna 574150601

RETENTION CLAMP

$

$

Not available

43

Husqvarna 574150101

MET PUMP LVR W/LOCK RPINS WSHR

$

$

Not available

49

Husqvarna 585829614

SPINDLE SET W/ VITON &

$

$

Not available

28

Husqvarna 585829608

PISTON, SEAL CONNECTING RODS

$

$

Not available

35

Husqvarna 585829612

BACKPACK LID & SEAL W/HANDLE

$

$

Not available

10

Husqvarna 577120601

SPRAY GUN W/GRIP & PLASTIC HND

$

$

Not available

14

Husqvarna 585829604

FIBERGLASS WAND 20"

$

$

Not available

48

Husqvarna 577121501

PISTON CUP G8

$

$

Not available

61

Husqvarna 585829617

SEAL SET COMPLETE HDE4P

$

$

Not available

34

Husqvarna 585829611

PUMP LEVER

$

$

Not available

41

Husqvarna 585830309

BUCKLE & HOOK FOR STRAP

$

$

Not available

33

Husqvarna 585829610

PUMP HANDLE, BLACK

$

$

Not available

30

Husqvarna 585830304

DIAPHRAGM & VITON SEALS

$

$

Not available

38

Husqvarna 574149301

SEAL

$

$

Not available

16

Husqvarna 585830301

SILICONE GREASE

$

$

Not available

29

Husqvarna 585829609

CYLINDER ASSY

$

$

Not available
