HDF 900 (960820032-01) - Poulan Pro Front-Tine Tiller (2014-01) BELT GUARD PULLEY Parts Diagram

Front-Tine Tiller

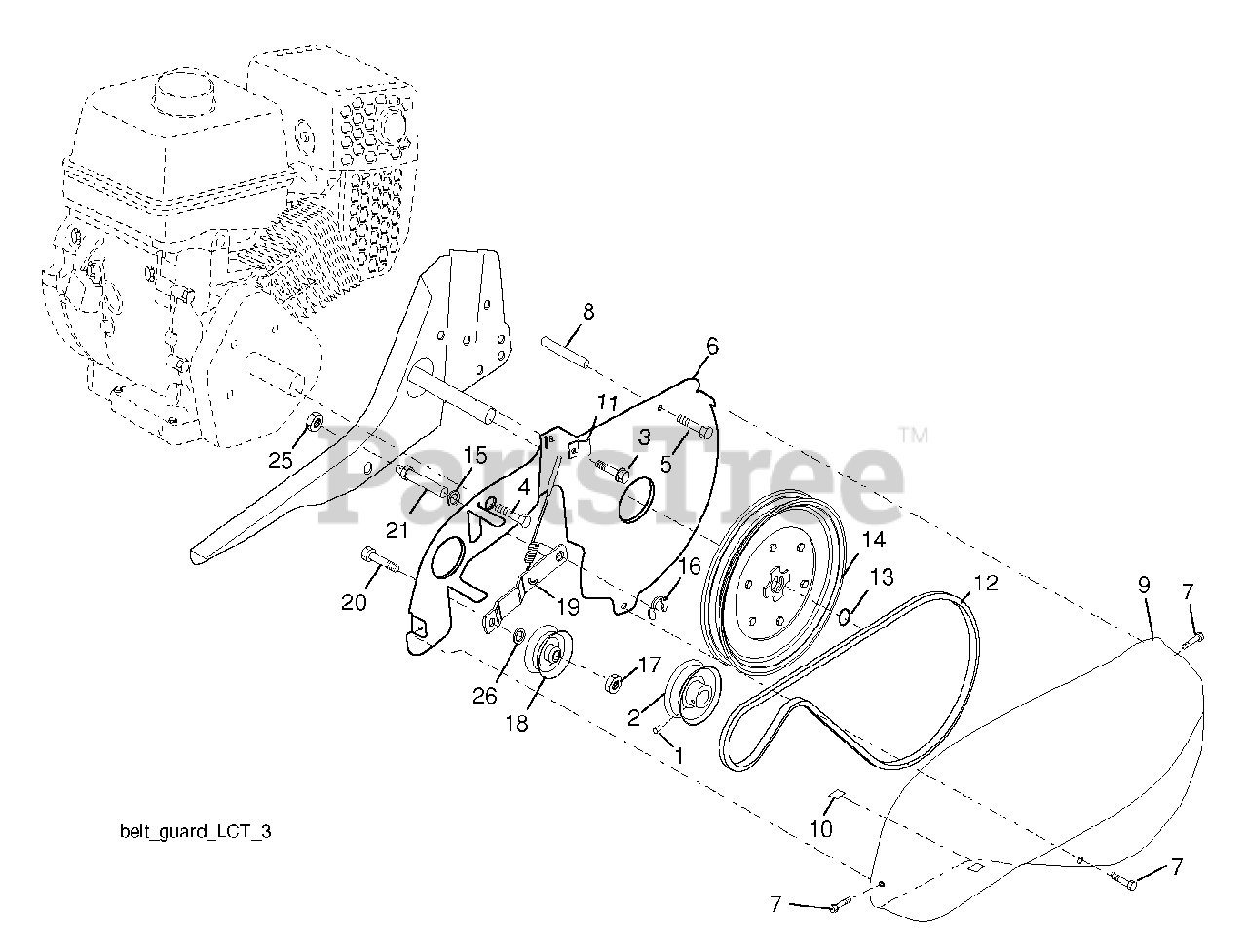

BELT GUARD PULLEY Parts Diagram

  • Title

1

Poulan 823230506

SET SCREW

$4.99

$

In Stock, only 2 left!

0

2

Poulan 532130812

ENGINE PULLEY
(Superseded to 592642101)

$12.99

$

Usually ships in 3-10 days

0

3

Poulan 532150050

SCREW.HXTAP.10-24

$4.99

$

In Stock, only 1 left!

0

4

Poulan 874770508

BOLT

$4.99

$

Usually ships in 3-10 days

0

5

Poulan 817490440

BOLT, THD ROLLER 1/4-20 X 2-1/

$

$

Not available

6

Poulan 532446250

SHIELD.INNER.FRT.BLACK
(Superseded to 583753101)

$48.99

$

Usually ships in 3-10 days

0

7

Poulan 532170488

SCREW.HEX.WSH.SLT.#10-24X.50

$6.49

$

In Stock, only 1 left!

0

8

Poulan 532139155

SPACER.SPLIT

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 532167739

(Superseded to 532167724)

$17.99

$

Usually ships in 3-10 days

0

10

Poulan 532109227

PAD IDLER TI

$3.99

$

In Stock, Qty 20+

0

11

Poulan 532446045

CLIP.PLATED
(Superseded to 532009484)

$6.49

$

In Stock, only 4 left!

0

12

Poulan 532009180

V BELT STD

$30.99

$

In Stock, Qty 10

0

13

Poulan 812000028

RETAINING RING LT
(Superseded to 532002267)

$7.49

$

In Stock, Qty 20+

0

14

Poulan 532151223

SHEAVE.TRANS

$34.99

$

Usually ships in 3-10 days

0

15

Poulan 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

16

Poulan 812000036

KLIP RING TI

$6.49

$

In Stock, only 1 left!

0

17

Poulan 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, Qty 9

0

18

Poulan 532180522

PULLEY.W/SPACER.2.25

$31.99

$

Usually ships in 3-10 days

0

19

Poulan 580530002

ARM.ASM.IDLER.PNT

$11.99

$

Usually ships in 3-10 days

0

20

Poulan 874780524

HEX BOLT
(Superseded to 596582201)

$3.99

$

In Stock, Qty 18

0

21

Poulan 532106968

SHAFT.IDLER.TILLER

$15.99

$

Usually ships in 3-10 days

0

25

Poulan 873350500

JAM NUT TI

$8.99

$

Usually ships in 3-10 days

0

26

Poulan 532155415

WASHER.20X8.5

$4.99

$

In Stock, only 2 left!

0
