HDP 3 (UT-01604) - Homelite Pump Gearbox Parts Diagram

Pump

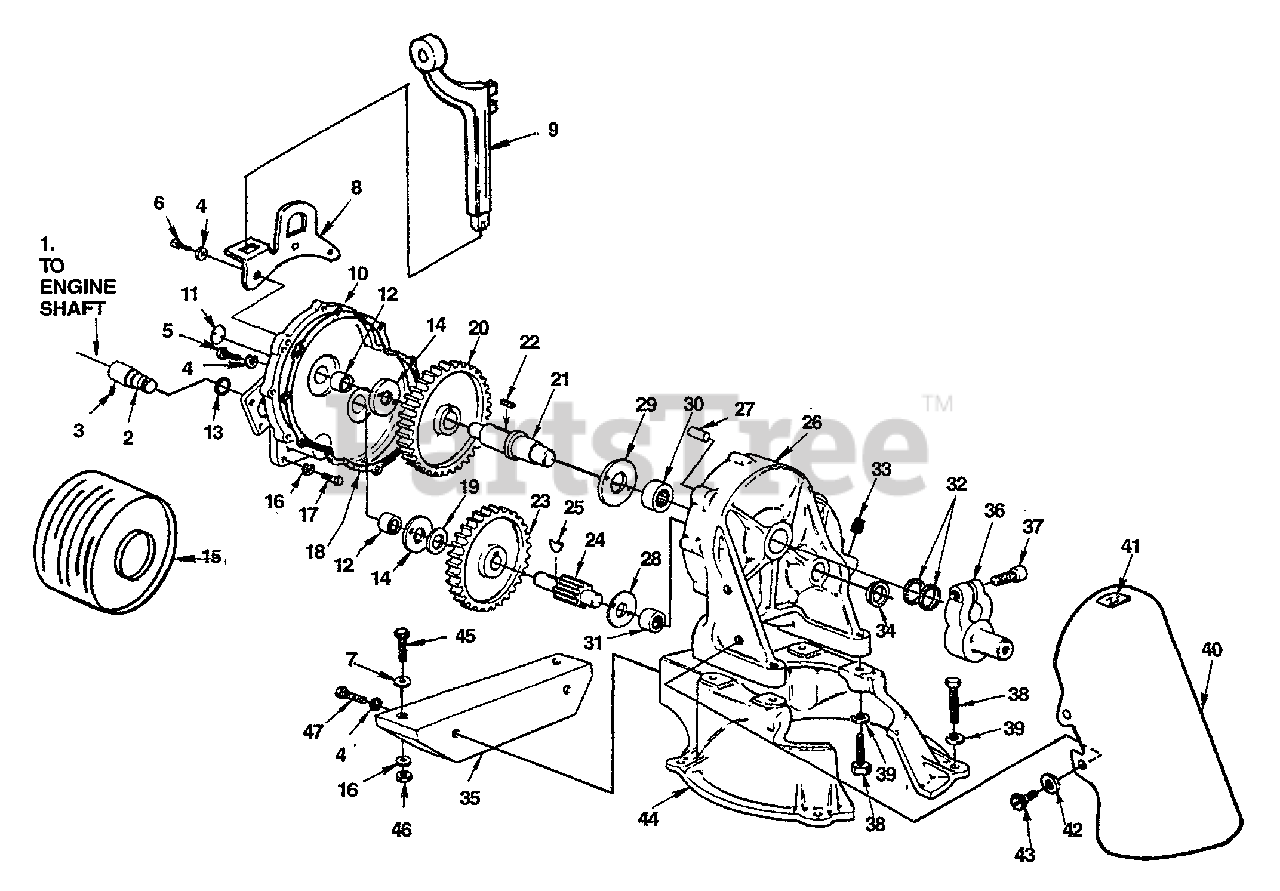

Gearbox Parts Diagram

  • Title

1

Homelite 08171

ENGINE, 5.5 HP OHV

Note: (Not shown)

$

$

Currently unavailable

2

Homelite A47098

SHAFT - Extension
(Superseded to UP07094)

$

$

Not available

3

Homelite 82390

SCREW - set 5/16-18 x 3/8
(Superseded to UP07284)

$

$

Not available

4

Homelite 83009

WASHER - lock, 1/4

$9.99

$

Usually ships in 3-7 days

0

5

Homelite 82496

SCREW - hex hd., 1/4-20 x 1

$

$

Not available

6

Homelite 80388

SCREW - hex hd.,1/4-20 x 1 1/4

$

$

Not available

7

Homelite 84032

WASHER, flat - 5/16

$

$

Not available

8

Homelite 49731

BRACKET, lifting

$

$

Not available

9

Homelite 20024B

WRENCH - Spanner
(Superseded to UP06389)

$

$

Not available

10

Homelite A75983

GEAR CASE COVER

$

$

Not available

11

Homelite 74137

CAP, bearing

$16.99

$

Usually ships in 3-7 days

0

12

Homelite 74251S

BEARING, Needle

$

$

Currently unavailable

13

Homelite 74333

SEAL, extension shaft

$

$

Not available

14

Homelite 73850

WASHER, thrust

$

$

Not available

15

Homelite 74454A

STRAINER
(Superseded to UP07029)

$

$

Not available

16

Homelite 83002

WASHER, lock 5/16
(Superseded to 653671)

$5.49

$

Usually ships in 3-7 days

0

17

Homelite 80376

SCREW, hex hd., 5/16-24 x 7/8
(Superseded to UP07181)

$

$

Not available

18

Homelite 74147

GASKET, gear case

$

$

Not available

19

Homelite 73885

SPACER

$

$

Not available

20

Homelite 738861A

GEAR, pump

$

$

Currently unavailable

21

Homelite A75672

SHAFT, gear

$

$

Not available

22

Homelite 27752

KEY

$

$

Not available

23

Homelite 743521

GEAR, intermediate

$

$

Currently unavailable

24

Homelite A75706

SHAFT - pinion

$

$

Not available

25

Homelite 743531

KEY

$

$

Not available

26

Homelite A743121

GEAR CASE ASSEMBLY

$

$

Not available

27

Homelite 74332

PIN, dowel

$

$

Not available

28

Homelite 73850

WASHER, thrust

$

$

Not available

29

Homelite 73855

WASHER, thrust

$

$

Not available

30

Homelite 74252S

BEARING, needle

$

$

Not available

31

Homelite 74251S

BEARING, needle

$

$

Currently unavailable

32

Homelite 74333

SEAL - Garlock

$

$

Not available

33

Homelite 50949

PLUG, pipe

$

$

Not available

34

Homelite 74137

CAP - Bearing

$16.99

$

Usually ships in 3-7 days

0

35

Homelite 759811A

BRACKET, engine to pump
(Superseded to UP07176)

$

$

Not available

36

Homelite 738583A

CRANK
(Superseded to UP06445)

$

$

Not available

37

Homelite 80423

SCREW, socket hd., 1/2-13 x 1 1/2

$

$

Not available

38

Homelite 80627

SCREW, hex hd., 1/2-13 x 1 3/4

$

$

Not available

39

Homelite 83020

WASHER, lock 1/2

$

$

Not available

40

Homelite A51135

GUARD, pump rod

$

$

Currently unavailable

41

Homelite 24581

DECAL, grease fitting

$

$

Not available

42

Homelite 84004

WASHER, flat
(Superseded to 678013001)

$2.49

$

Usually ships in 3-7 days

0

43

Homelite 80837

SCREW, hex hd., 12-24 x 3/8
(Superseded to 80676)

$

$

Not available

44

Homelite 741185A

BODY, pump (upper)
(Superseded to UP06848)

$

$

Not available

45

Homelite 80288

SCREW, hex hd., 5/16-18 x 1 3/4
(Superseded to UP03388)

$

$

Not available

46

Homelite 81162

NUT, hex 5/16-18

$

$

Not available

47

Homelite 80052

SCREW, hex hd. 1/4-20 x 3/4

$

$

Not available
