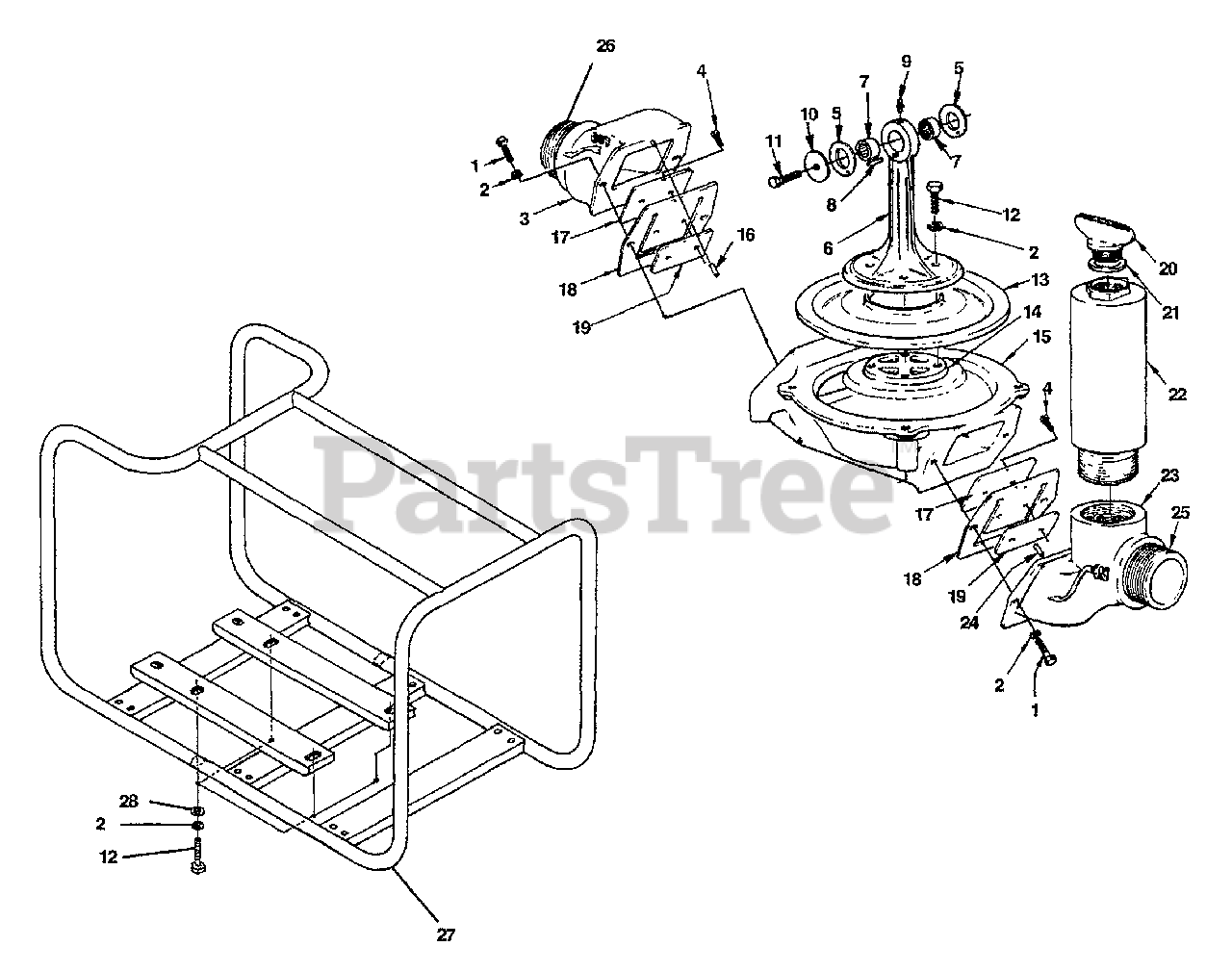

HDP 3 (UT-01604) - Homelite Pump Pump & Roll Cage Parts Diagram

Pump

Pump & Roll Cage Parts Diagram

  • Title

1

Homelite 80627

SCREW, Hex hd. (1/2-13 X 1 3/4)

$

$

Not available

2

Homelite 83020

WASHER, Lock (1/2")

$

$

Not available

3

Homelite 738743A

FITTING-Discharge
(Superseded to UP07084)

$

$

Not available

4

Homelite 80393

SCREW, fil hd., 10-32 x 1/2

$

$

Not available

5

Homelite 73856

WASHER, thrust

$

$

Not available

6

Homelite A74339

PUMP ROD
(Superseded to UP07042)

$

$

Not available

7

Homelite 74121

BEARING, needle
(Superseded to 74121S)

$

$

Not available

8

Homelite 76982

PIN-Coiled spring

$

$

Not available

9

Homelite 32409

GREASE FITTING

$

$

Not available

10

Homelite 73857

WASHER

$

$

Not available

11

Homelite 80171

SCREW, hex hd., 3/8-16 x 3/4

$

$

Not available

12

Homelite 80272

SCREW, hex hd., 1/2-13 x 1 1/4

$

$

Not available

13

Homelite 03438

DIAPHRAGM

$

$

Not available

14

Homelite 737061

PLATE, diaphragm

$

$

Not available

15

Homelite A74313

PUMP BODY
(Superseded to UP07041)

$

$

Currently unavailable

16

Homelite 548901

PIN-Roll

$

$

Not available

17

Homelite 74156

VALVE, plate

$

$

Not available

18

Homelite 741541

VALVE, flapper
(Superseded to UP06449)

$

$

Not available

19

Homelite 741551

WEIGHT, valve

$

$

Not available

20

Homelite A43971

PLUG-Wing

$

$

Not available

21

Homelite 18108

PLUG GASKET

$

$

Not available

22

Homelite 743443A

STANDPIPE-3"

$

$

Not available

23

Homelite A743481

SUCTION FITTING

$

$

Not available

24

Homelite 548901

PIN, roll

$

$

Not available

25

Homelite 743431

NIPPLE - 3"

$

$

Not available

26

Homelite 079821

NIPPLE - 3"

$51.99

$

Usually ships in 3-7 days

0

27

Homelite A07961

ROLL CAGE
(Superseded to UP07123)

$

$

Not available

28

Homelite 84035

WASHER FLAT 1/2"

$

$

Not available

Homelite 546392

COUPLING - Hose 3"

Note: Accessories

$

$

Currently unavailable

Homelite 7467612

FITTING - Pipe 3" (NPT to British)

Note: Accessories

$

$

Currently unavailable

Homelite A75662

FITTING - Pump discharge 2"

Note: Accessories

$

$

Currently unavailable

Homelite A75661

FITTING - Pump suction 2"

Note: Accessories

$

$

Currently unavailable

Homelite A48445

STRAINER W/FOOT VALVE

Note: Accessories; Use for solids

$

$

Not available
